L009UiGS-2HaxD-IN

MikroTik

L009UiGS-2HaxD-IN

รหัสสินค้า: L009UiGS-2HaxD-IN

เราเตอร์ Wi-Fi 6 พร้อม SFP 2.5G, PoE-out, CPU ARM, รองรับ Container, ติดตั้งใน 1U ได้ 4 ตัว

  • SFP
  • out
  • ARM
  • mixed
  • v7
THB 9,288.00
MikroTik L009UiGS-2HaxD-IN—
THB 9,288.00

จุดเด่น

  • Wi-Fi 6
  • 2.5G SFP
  • PoE
  • Container
  • ARM
  • 1U mountable

ภาพรวมสินค้า

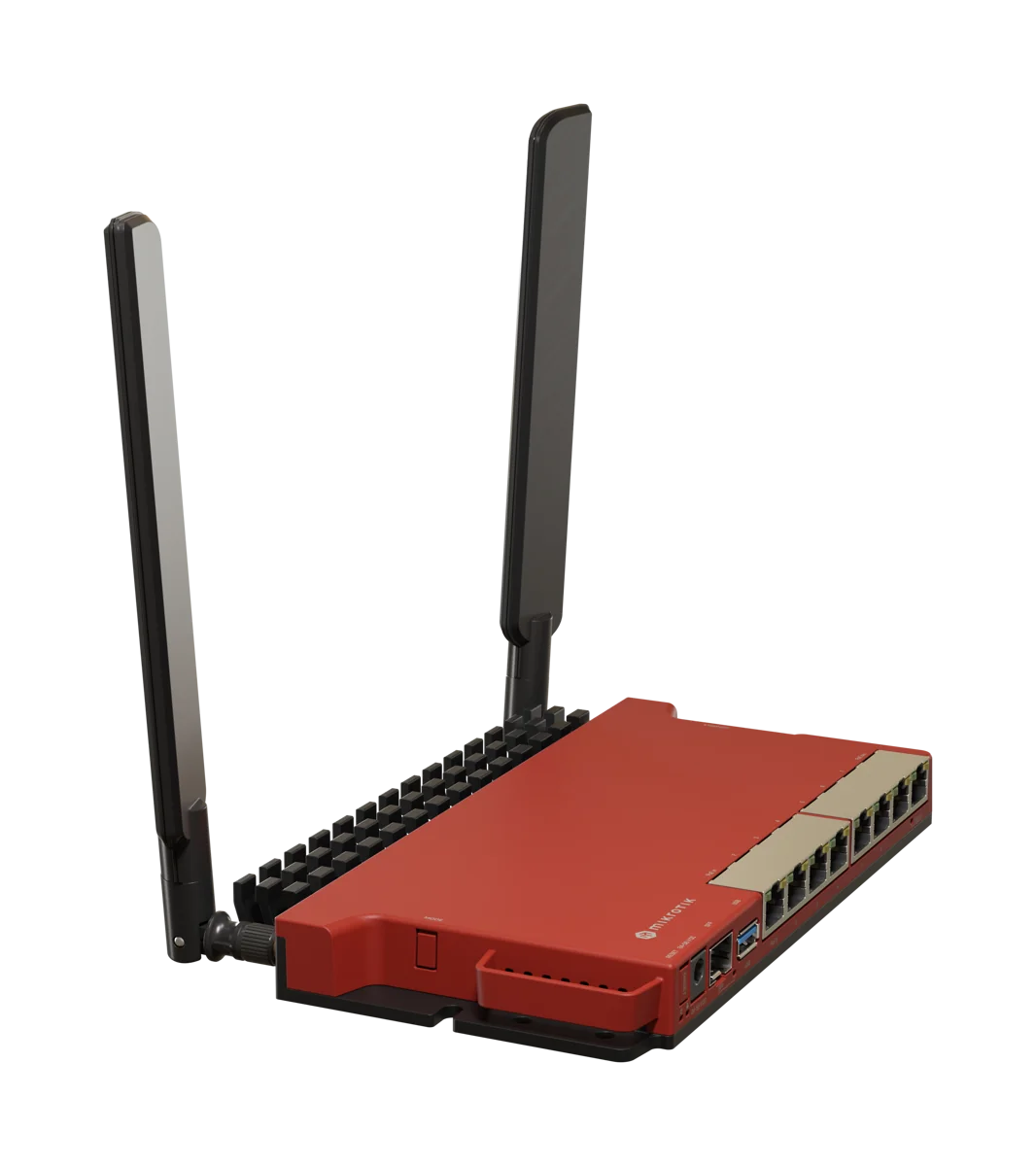

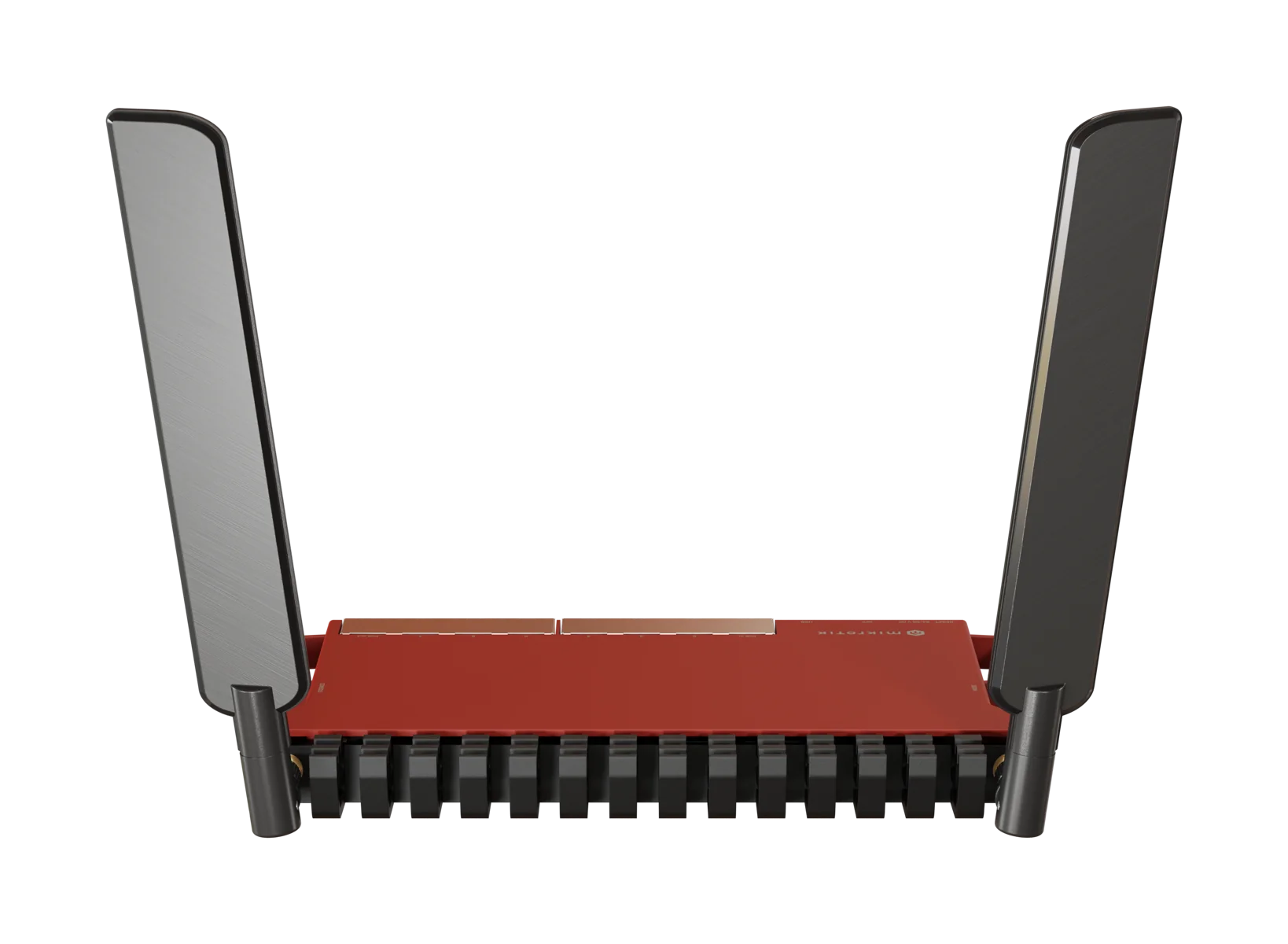

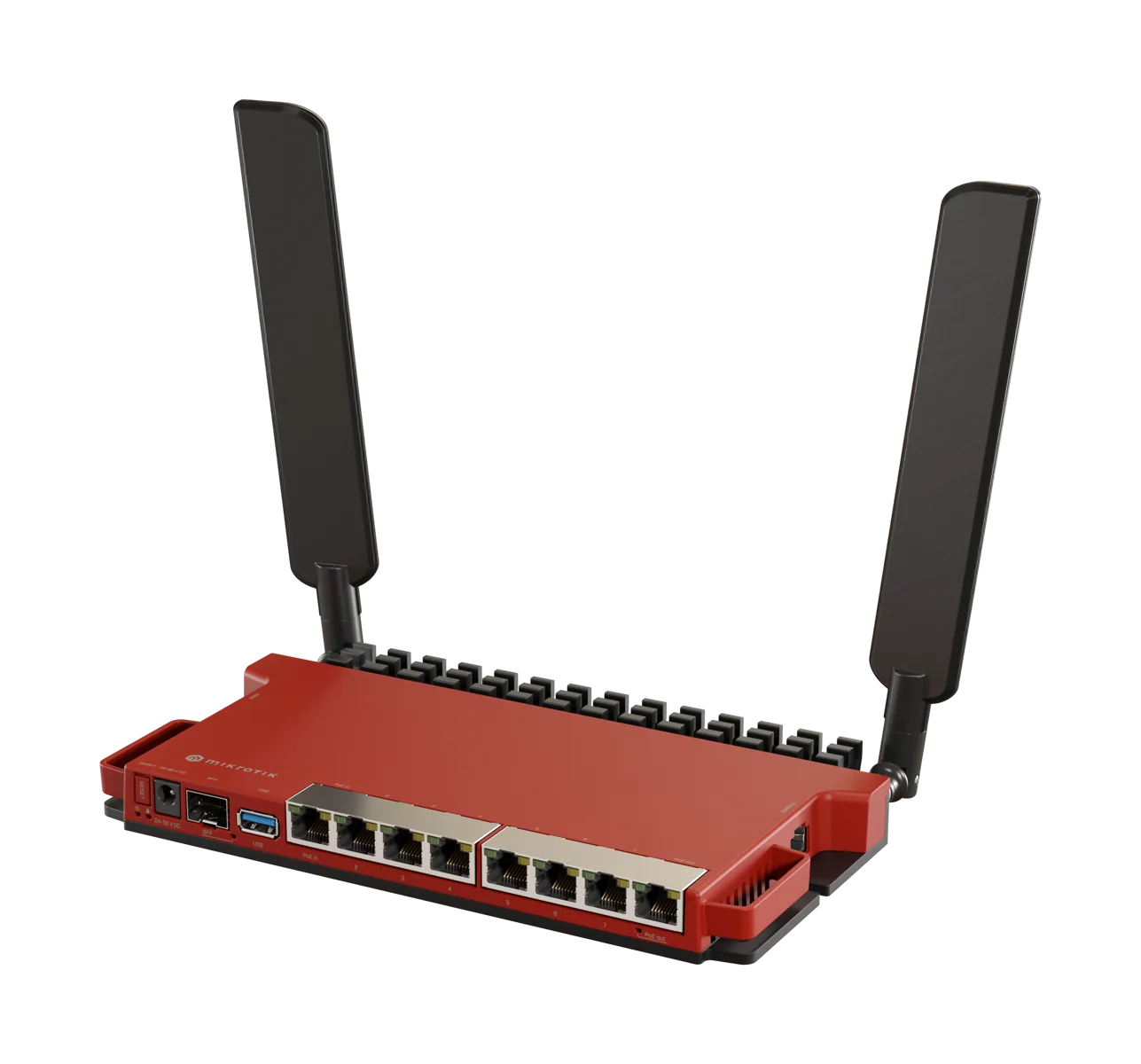

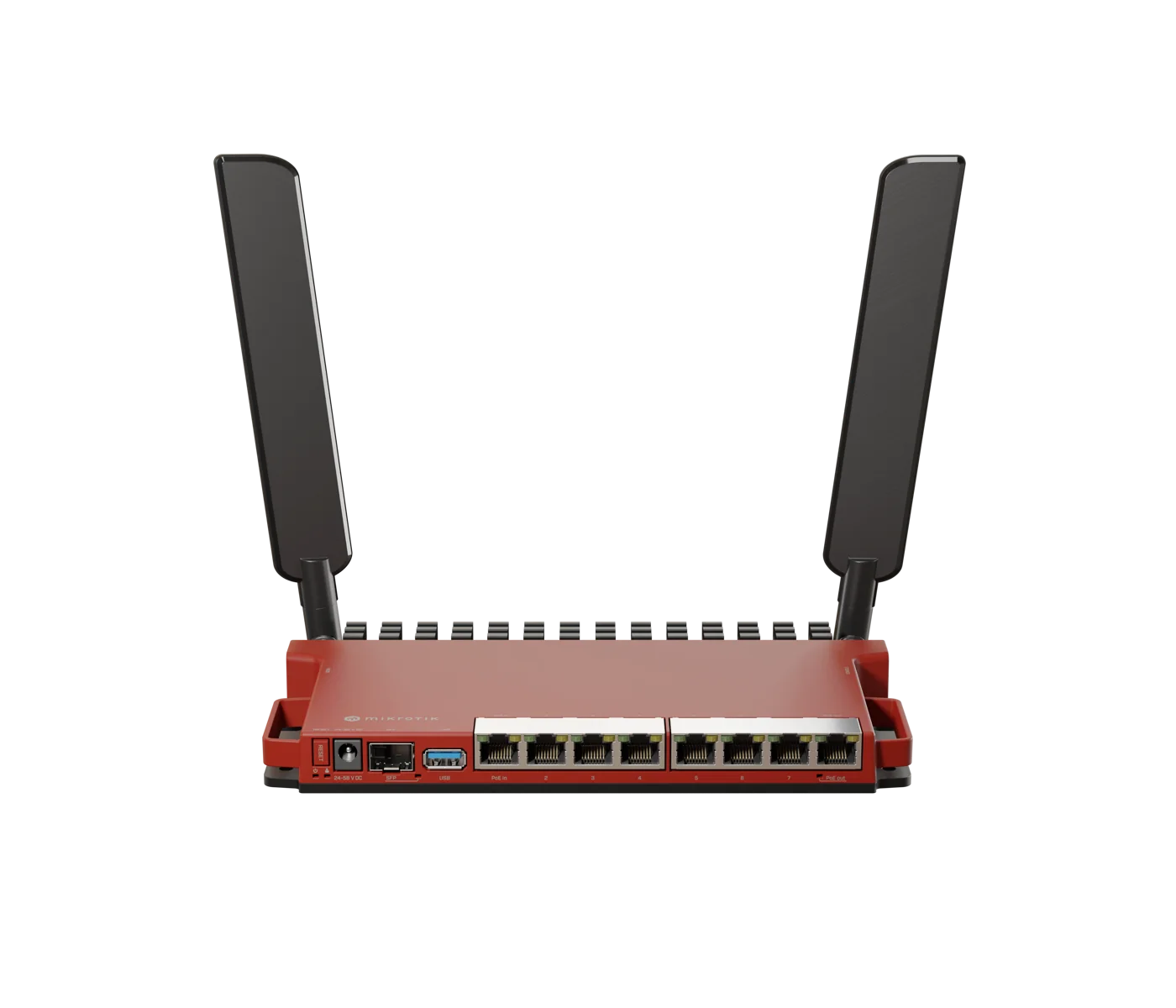

L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 2.4 GHz ax dual-chain wireless.
L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 2.4 GHz ax dual-chain wireless.

ข้อมูลจำเพาะ

Specifications

Product code
L009UiGS-2HaxD-IN
Suggested price
$129.00
Architecture
ARM 32bit
CPU
IPQ-5018
CPU core count
2
CPU nominal frequency
800 MHz
CPU Threads count
2
Switch chip model
88E6190
RouterOS license
5
Operating System
RouterOS v7
Size of RAM
512 MB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C

Wireless capabilities

Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz Number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
4
Wireless 2.4 GHz chip model
IPQ-5018
Wireless 2.4 GHz generation
Wi-Fi 6
WiFi speed
AX600

Ethernet

10/100/1000 Ethernet ports
8
Number of 1G Ethernet ports with PoE-out
1

Fiber

SFP ports
1 (2.5G supported)

Peripherals

Serial console port
RJ45
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1.5

Powering

Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
24-56 V
Max power consumption
47 W
Max power consumption without attachments
14 W
PoE in
802.3af/at
Cooling type
Passive
PoE in input Voltage
24-56 V

PoE-out

PoE-out ports
Ether8
PoE out
Passive PoE
Low voltage PoE-Out current limit
1 A
High voltage PoE-Out current limit
450 mA
Max total out (A)
1.0 A

Certification & Approvals

Certification
CE, FCC, IC, EAC, ROHS
IP
20

Other

Mode button
Yes

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
