MikroTik

hAP ax³

รหัสสินค้า: C53UiG+5HPaxD2HPaxD

จุดเชื่อมต่อ Wi-Fi 6 ระดับสูง พอร์ต 2.5G, PoE-out, รองรับ WPA3

  • out
  • ARM
  • 2.5G
  • v7
  • Wi-Fi 6
THB 10,008.00

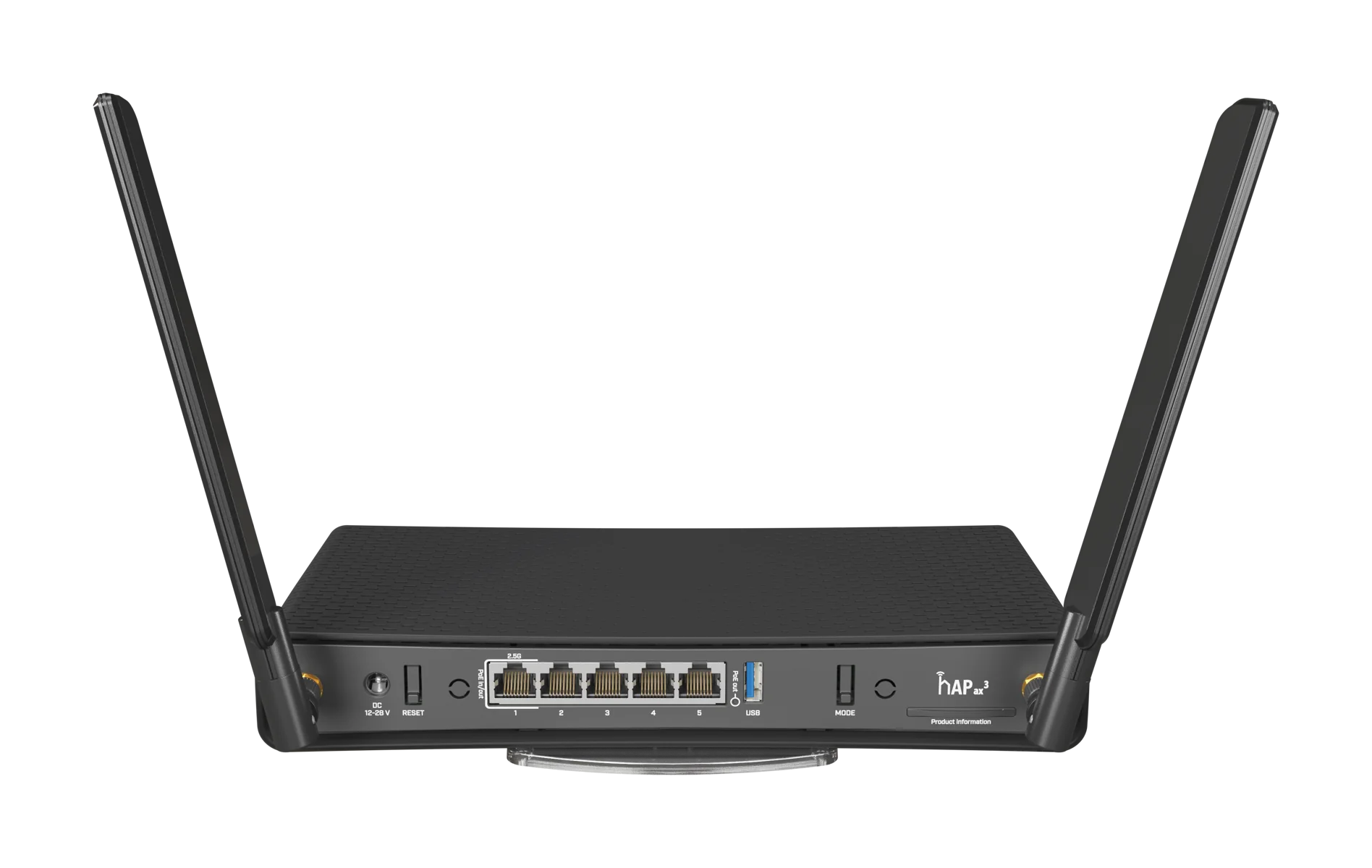

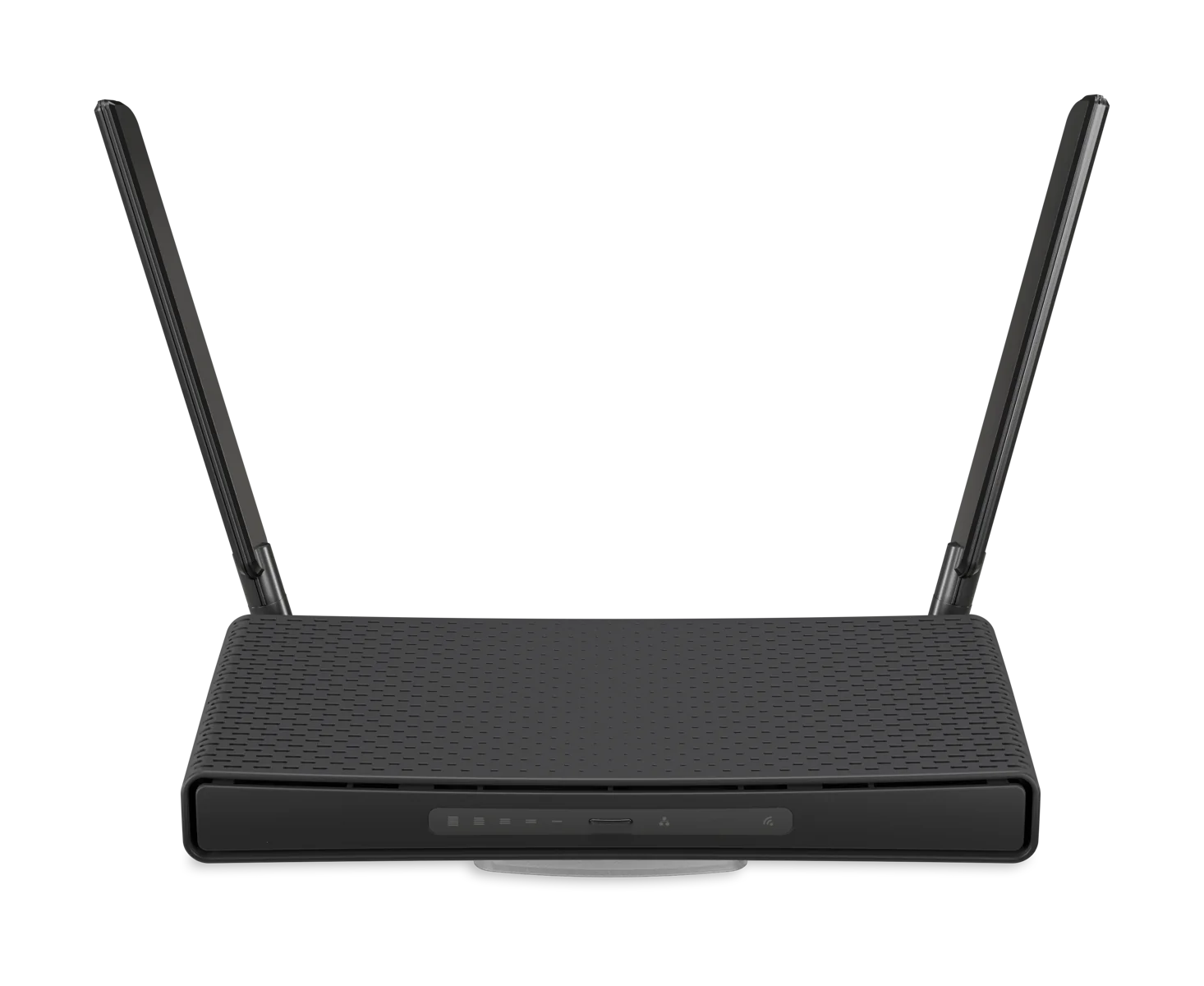

MikroTik hAP ax³
THB 10,008.00

จุดเด่น

  • 2.5G ethernet PoE-In/Out
  • 4 x 1G ethernet
  • 802.11ax + Wave 2
  • Strong Dual-Band, Dual-Chain wireless
  • USB 3 port for storage & file sharing
  • Powerful 1.8 GHz ARM CPU

ภาพรวมสินค้า

hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas (via built-in RP-SMA female ports) allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.

hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, our famous Northern work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.

To sum things up - hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.

ข้อมูลจำเพาะ

Specifications

Product code
C53UiG+5HPaxD2HPaxD
Suggested price
$139.00
Architecture
ARM 64bit
CPU
IPQ-6010
CPU core count
4
CPU nominal frequency
auto (864 - 1800) MHz
CPU Threads count
4
Switch chip model
IPQ-6010
RouterOS license
6
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C

Wireless capabilities

Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz Number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
3.3
Wireless 2.4 GHz chip model
QCN-5022
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz Max data rate
1200 Mbit/s
Wireless 5 GHz Number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
QCN-5052
Wireless 5 GHz generation
Wi-Fi 6
WiFi speed
AX1800

Ethernet

10/100/1000 Ethernet ports
4
Number of 1G Ethernet ports with PoE-out
1
Number of 2.5G Ethernet ports
1

Peripherals

Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1.5

Powering

Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-28 V
Max power consumption
38 W
Max power consumption without attachments
15 W
PoE in
Passive PoE
Cooling type
Passive
PoE in input Voltage
18-28 V

PoE-out

PoE-out ports
Ether 1
PoE out
Passive PoE
Low voltage PoE-Out current limit
0.625 A
Max total out (A)
0.625 A
Total output current
0.625
Total output power
15

Certification & Approvals

Certification
CE, FCC, IC, EAC, ROHS
IP
20

Other

CPU temperature monitor
Yes
Mode button
Yes
