MikroTik

hAP be³ Media

รหัสสินค้า: MA53UG+HbeH

เราเตอร์ Wi-Fi 7 แบบสามย่าน พอร์ต 2.5G 5 พอร์ต, CPU ARM Quad-core, รองรับ Matter/Thread และ Container

  • ARM
  • 2.5G
  • v7
  • Wi-Fi 6E
THB 12,888.00

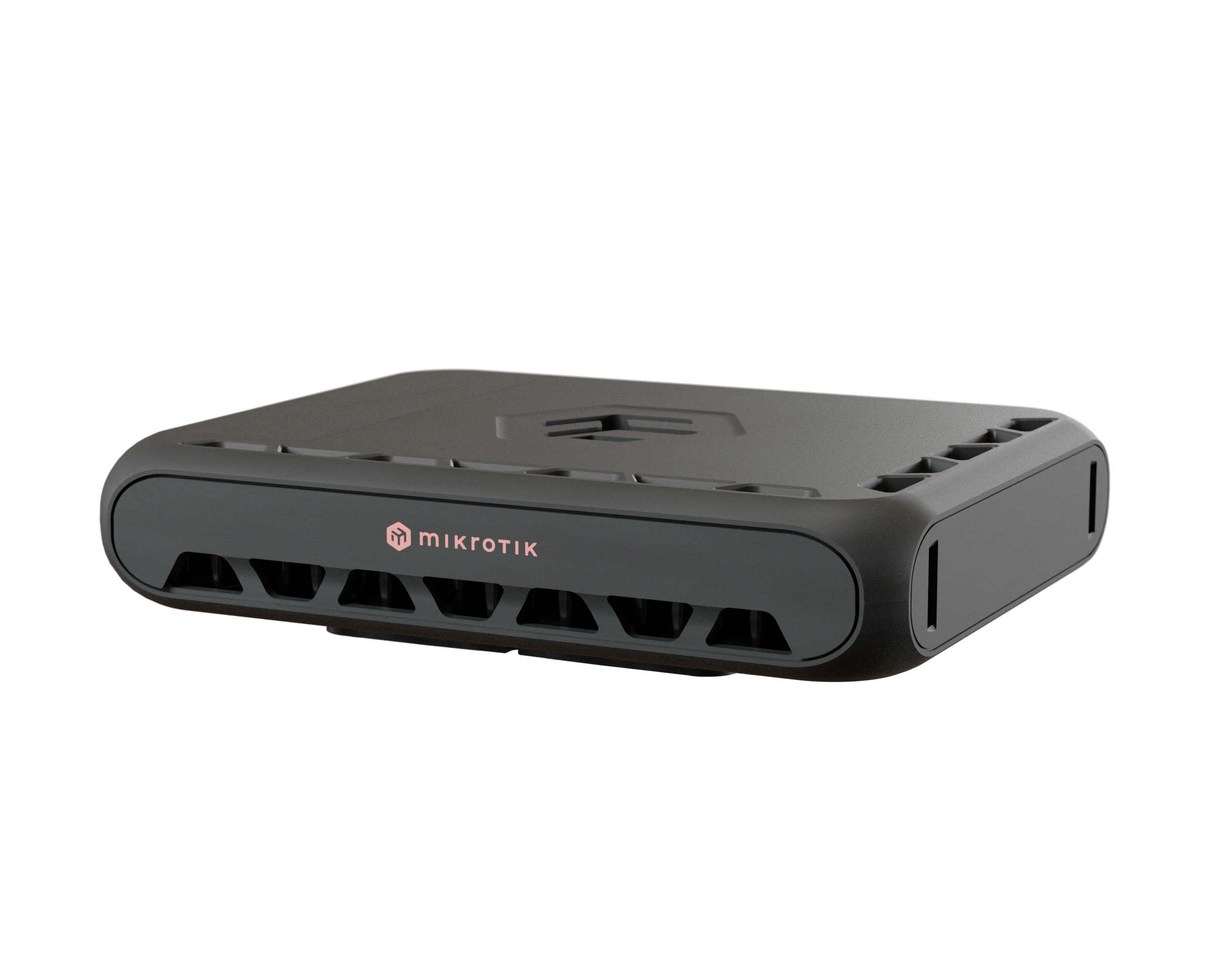

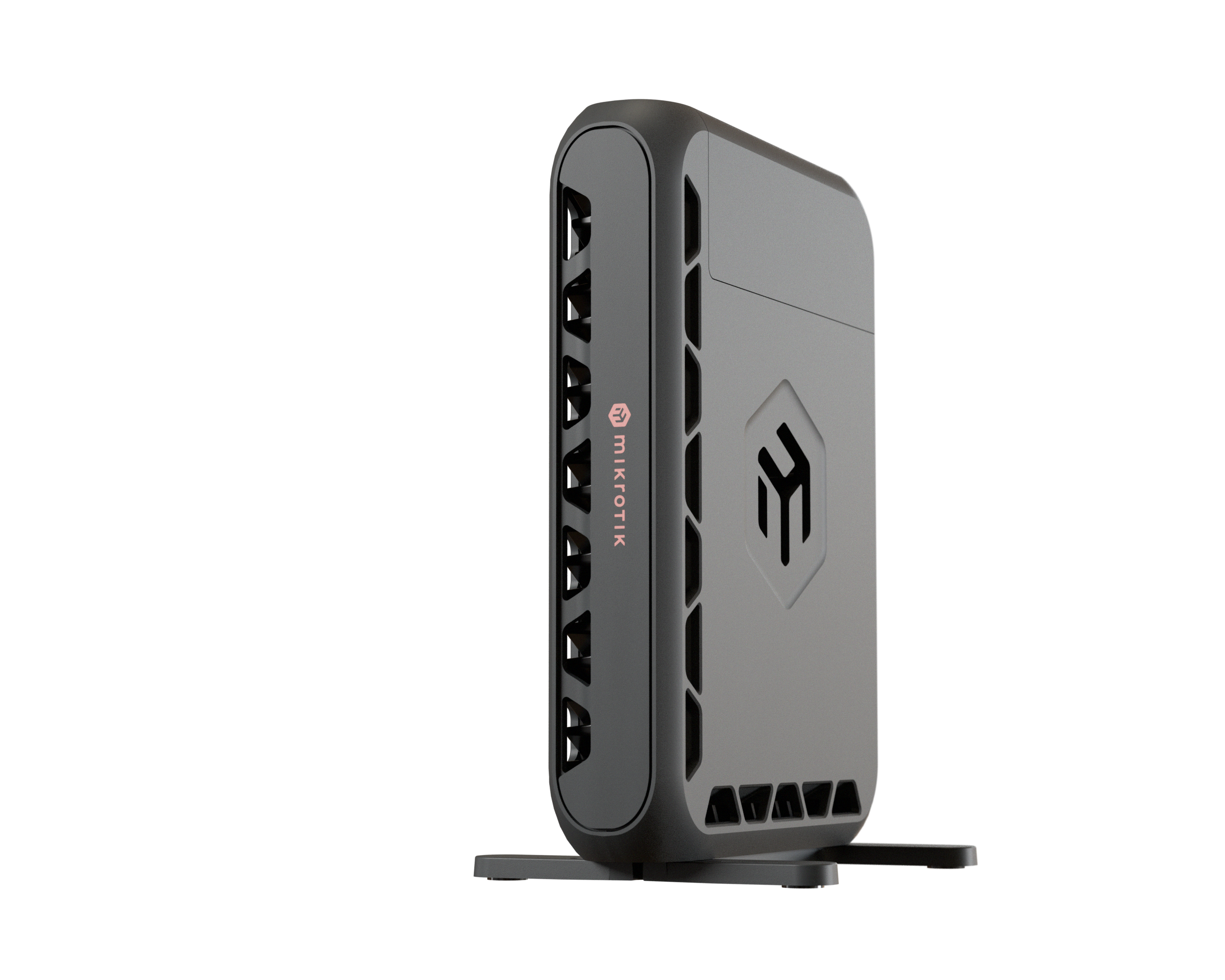

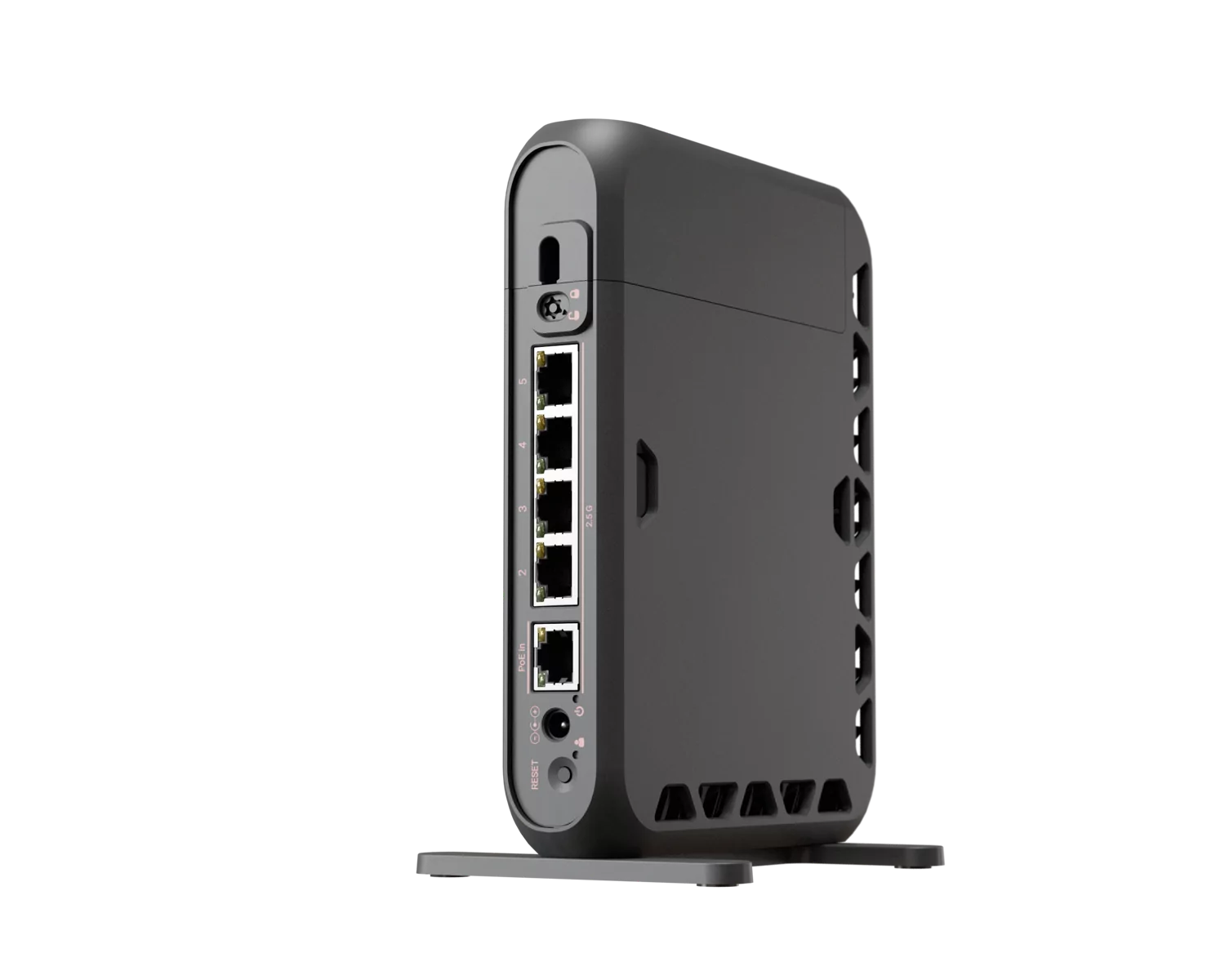

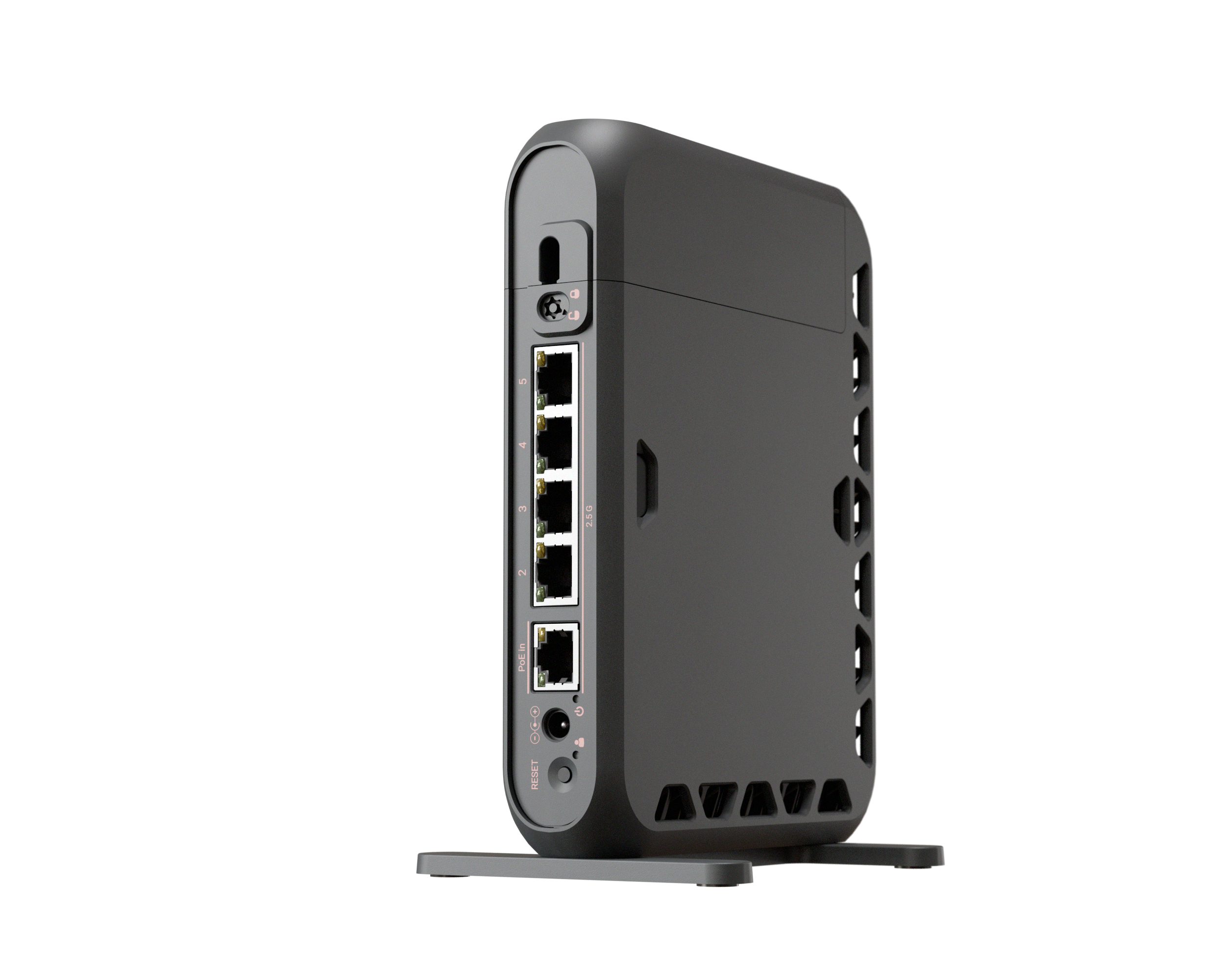

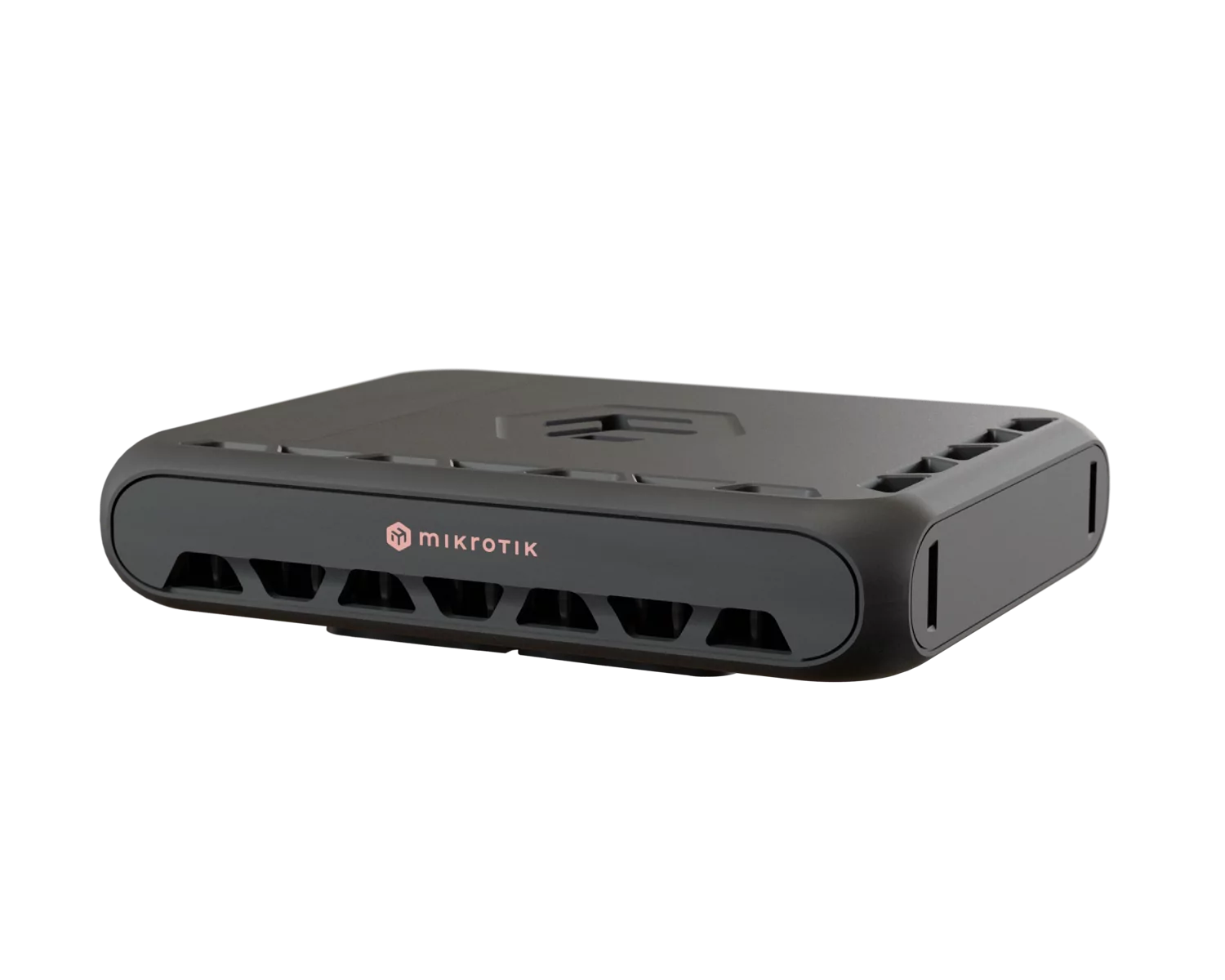

MikroTik hAP be³ Media
THB 12,888.00

จุดเด่น

  • Triple band 2x2 MIMO Wi-Fi 7

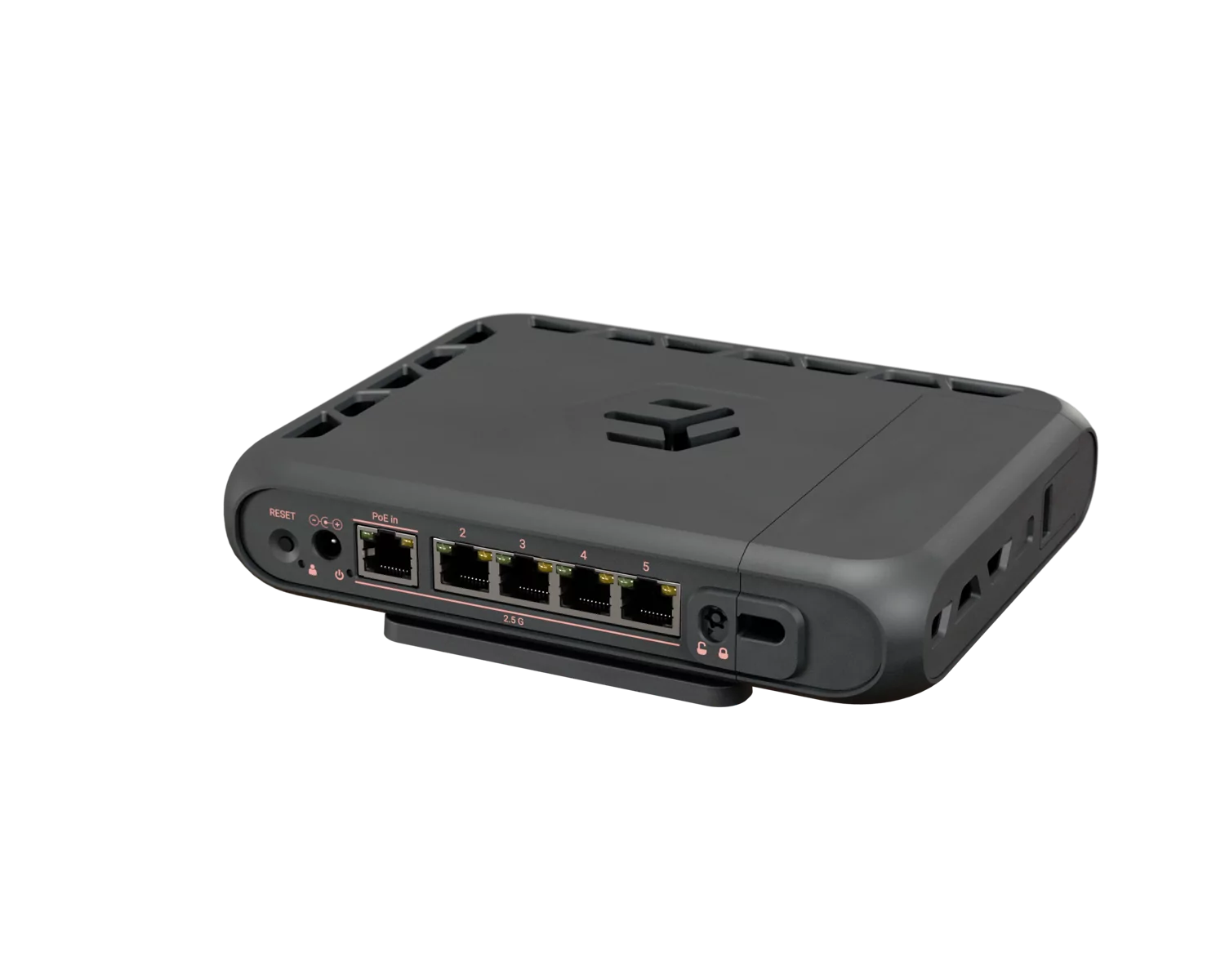

  • 5 x 2.5G Ethernet
  • Quad-core up to 1.5 GHz ARM CPU

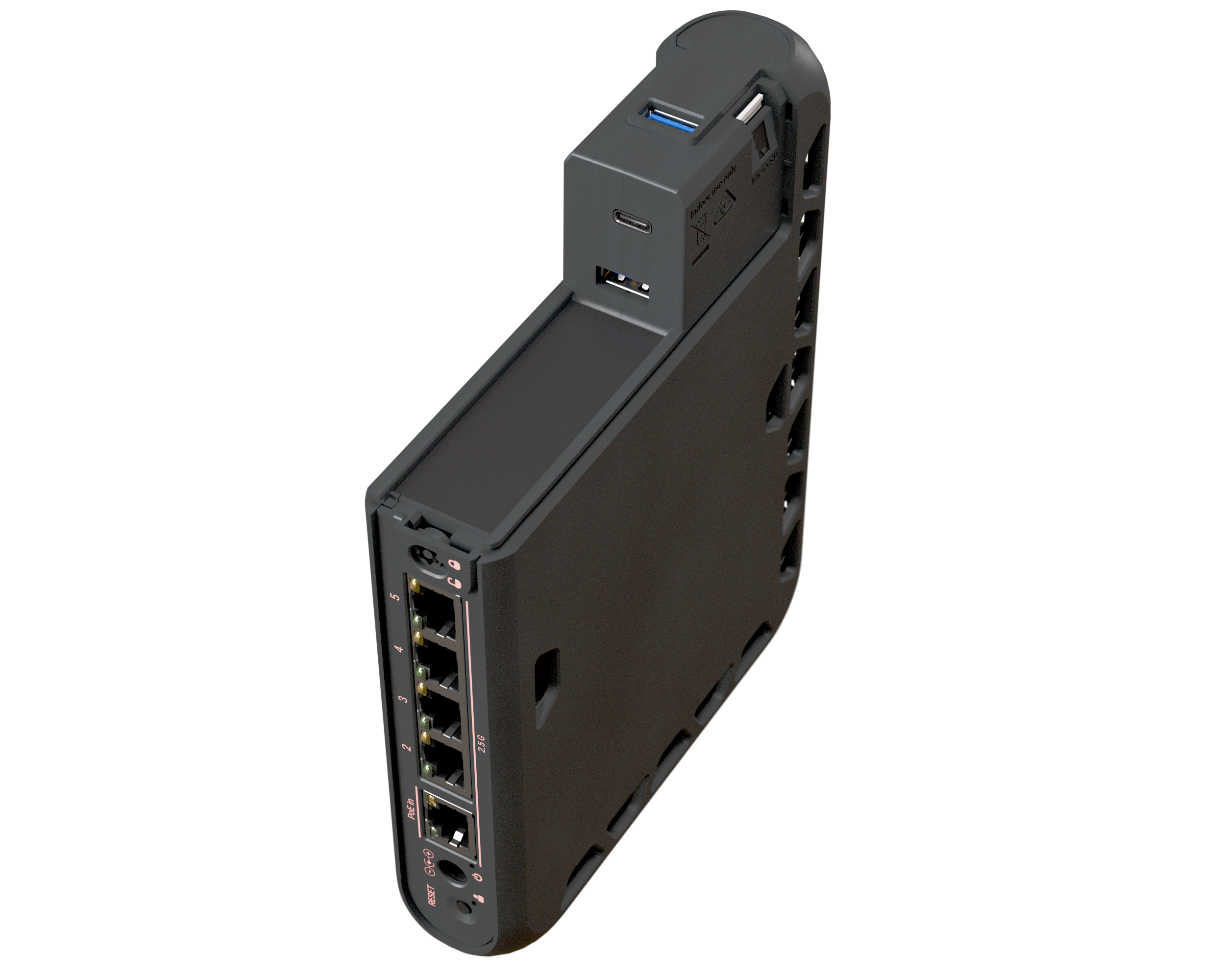

  • USB-C + 2x USB-A
  • Thread radio
  • PoE-in and DC jack
  • Bluetooth 5.4
  • Container support
  • microSD card slot

ภาพรวมสินค้า

The hAP be³ Media delivers true Wi-Fi 7 performance across the 2.4, 5, and 6 GHz bands.

Expect higher throughput, lower latency, improved security, and better spectral efficiency. The wide 6 GHz band offers more clean spectrum, helping reduce congestion in busy environments

Also, hAP be³ Media supports Wi-Fi 7 Multi-Link Operation (MLO) in TR-MLMR (AP mode).

Whether you are running a multi-device setup, a network lab, workstations, VR headsets, NAS backups, cloud sync, or high-resolution media streaming, everything can run simultaneously without competing for airtime. More bands mean more capacity, smoother performance, and a wireless experience that finally keeps up with modern workloads.

Self-hosted password managers, documents and services – that is the way in 2026, if you care about privacy and security. Store automation data and container workloads without relying on external servers. Everything stays fast, local, and fully under your control. Also, with the MikroTik BTH app and the improved File share functionality in WinBox, you can share large files without worrying about expired links, delays or privacy.

With Wi-Fi 7, Bluetooth 5.4, and RouterOS v7,
hAP be³ Media provides a solid foundation for modern IoT setups.

A built-in Thread radio and full container support allow users to deploy Thread IoT automation solutions that remain local, private, and fully customizable.

ข้อมูลจำเพาะ

Specifications

Product code
MA53UG+HbeH
Suggested price
$179.00
Architecture
ARM 64bit
CPU
IPQ-5322
CPU core count
4
CPU nominal frequency
Up to 1.5 GHz (auto)
CPU Threads count
4
Switch chip model
QCA8386
RouterOS license
6
Operating System
RouterOS v7
Size of RAM
2 GB
Storage size
512 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-30°C to 50°C

Wireless capabilities

Wireless 2.4 GHz Max data rate
688 Mbit/s
Wireless 2.4 GHz Number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax/be
Antenna gain dBi for 2.4 GHz
4
Wireless 2.4 GHz chip model
IPQ-5322
Wireless 2.4 GHz generation
Wi-Fi 7
Wireless 5 GHz Max data rate
2882 Mbit/s
Wireless 5 GHz Number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax/be
Antenna gain dBi for 5 GHz
7.5
Wireless 5 GHz chip model
QCM-8083
Wireless 5 GHz generation
Wi-Fi 7
WiFi speed
BE9300
Wireless 6 GHz Max data rate
5764 Mbit/s
Wireless 6 GHz Number of chains
2
Wireless 6 GHz standards
802.11ax/be
Antenna gain dBi for 6 GHz
8
Wireless 6 GHz chip model
QXM-8086
Wireless 6 GHz generation
Wi-Fi 7

Ethernet

Number of 2.5G Ethernet ports
5

Peripherals

Number of USB ports
3
USB slot type
USB 3.0 type A
Max USB current (A)
1.5

Powering

Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
24-57 V
Max power consumption
29 W
Max power consumption without attachments
20 W
PoE in
802.3af/at
Cooling type
Passive
PoE in input Voltage
24-57 V

Certification & Approvals

Certification
CE, FCC, IC, EAC, ROHS
IP
20

Other

CPU temperature monitor
Yes
Bluetooth version
5.4
