MikroTikView details
cAP ac
RBcAPGi-5acD2nD
จุดเชื่อมต่อไร้สายดูอัลแบนด์ 2.4/5GHz สำหรับติดตั้งบนเพดานหรือผนัง พร้อม 2 พอร์ต Gigabit Ethernet (หนึ่งพอร์ตมี PoE-out), รองรับ 802.11ac และ IPsec hardware encryption
- out
- 1G
THB 6,120.00
MikroTik

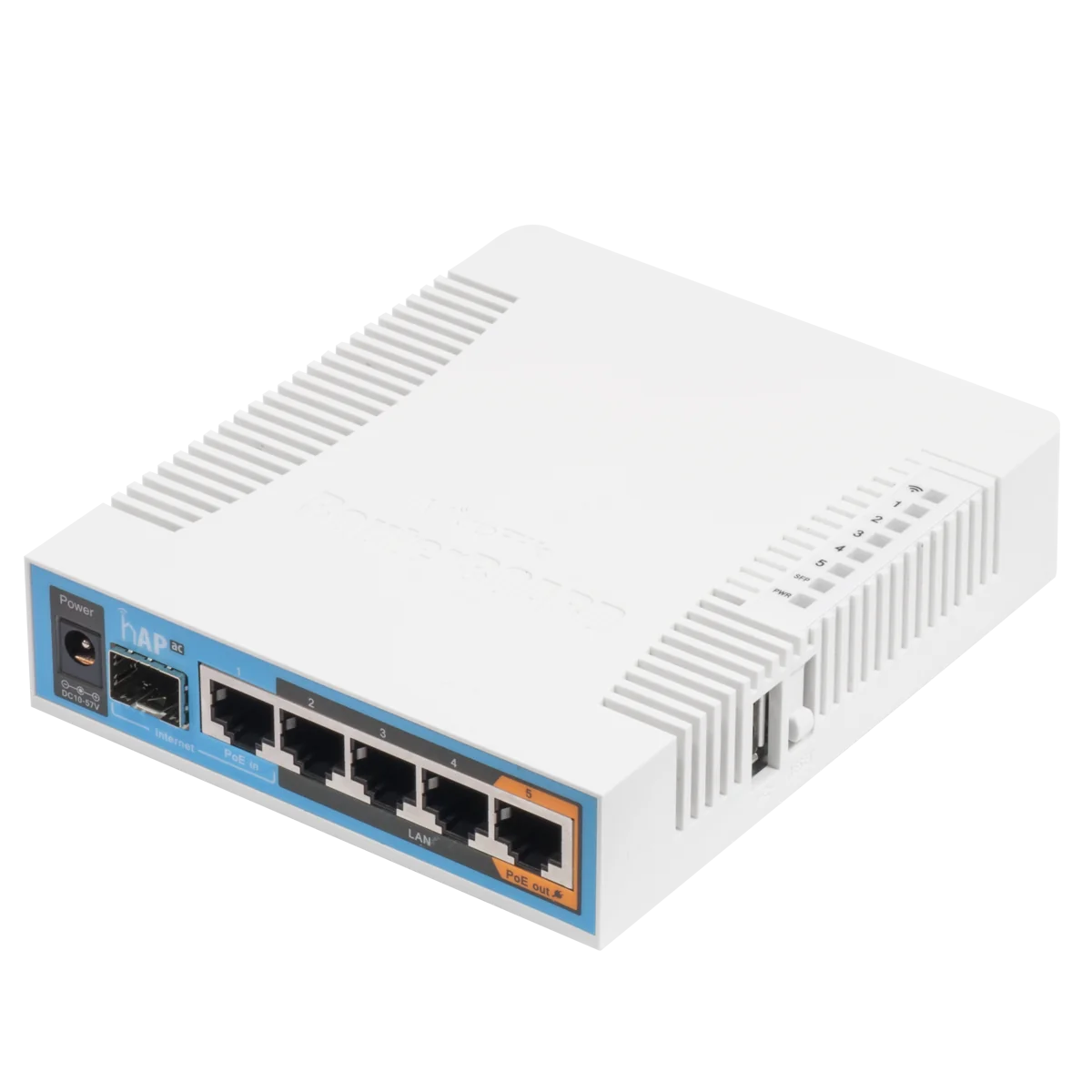

hAP ac
รหัสสินค้า: RB962UiGS-5HacT2HnT
จุดเชื่อมต่อไร้สายดูอัลแบนด์ 802.11ac พร้อมพอร์ต Gigabit Ethernet 5 พอร์ต, PoE-out ที่พอร์ต 5, SFP, USB สำหรับ 3G/4G หรือสตอเรจ
- SFP
- out
- 1G
- Wi-Fi
THB 9,288.00
MikroTik hAP ac—
THB 9,288.00
จุดเด่น
- PoE-out
- SFP
- USB
- dual-band
- 802.11ac
ภาพรวมสินค้า
Dual concurrent triple chain 2.4/5GHz AP, 802.11ac/a/n/b/g, Five Gigabit Ethernet ports, PoE-out on port 5, SFP, USB for 3G/4G support or storage
Dual concurrent triple chain 2.4/5GHz AP, 802.11ac/a/n/b/g, Five Gigabit Ethernet ports, PoE-out on port 5, SFP, USB for 3G/4G support or storage
ข้อมูลจำเพาะ
Specifications
- Product code
- RB962UiGS-5HacT2HnT
- Suggested price
- $129.00
- Architecture
- MIPSBE
- CPU
- QCA9558
- CPU core count
- 1
- CPU nominal frequency
- 720 MHz
- Switch chip model
- QCA8337
- Dimensions
- 114 x 137 x 29mm
- RouterOS license
- 4
- Operating System
- RouterOS v7
- Size of RAM
- 128 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
Wireless capabilities
- Wireless 2.4 GHz Max data rate
- 450 Mbit/s
- Wireless 2.4 GHz Number of chains
- 3
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 2.5
- Wireless 2.4 GHz chip model
- QCA9558
- Wireless 2.4 GHz generation
- Wi-Fi 4
- Wireless 5 GHz Max data rate
- 1300 Mbit/s
- Wireless 5 GHz Number of chains
- 3
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 2
- Wireless 5 GHz chip model
- QCA9880
- Wireless 5 GHz generation
- Wi-Fi 5
- WiFi speed
- AC1750
Ethernet
- 10/100/1000 Ethernet ports
- 5
Fiber
- SFP ports
- 1
Peripherals
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
Powering
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 11-57 V
- Max power consumption
- 17 W
- PoE in
- Passive PoE
- Cooling type
- Passive
- PoE in input Voltage
- 11-57 V
PoE-out
- PoE-out ports
- Ether5
- PoE out
- Passive PoE
- Low voltage PoE-Out current limit
- 700 mA
- High voltage PoE-Out current limit
- 350 mA
- Max total out (A)
- 700 mA
Certification & Approvals
- Certification
- CE, FCC, IC, EAC, ROHS
- IP
- IP20
Other
- PCB temperature monitor
- Yes
- Voltage Monitor
- Yes
- Beeper
- Yes
