MikroTikView details
cAP XL ac
RBcAPGi-5acD2nD-XL
จุดเชื่อมต่อไร้สายติดเพดานรุ่นปรับปรุง พร้อมเสาอากาศเกนสูง เพิ่มพื้นที่ครอบคลุมสูงสุด 100% เมื่อเทียบกับรุ่นก่อน, 2 พอร์ต Gigabit Ethernet, PoE-out, 802.11ac
- out
- 1G
THB 7,128.00
MikroTik
cAP ac
รหัสสินค้า: RBcAPGi-5acD2nD
จุดเชื่อมต่อไร้สายดูอัลแบนด์ 2.4/5GHz สำหรับติดตั้งบนเพดานหรือผนัง พร้อม 2 พอร์ต Gigabit Ethernet (หนึ่งพอร์ตมี PoE-out), รองรับ 802.11ac และ IPsec hardware encryption
- out
- 1G
- Wi-Fi
THB 6,120.00
MikroTik cAP ac—
THB 6,120.00
จุดเด่น
- PoE out
- IPsec
- Ceiling mount
- Dual-band
ภาพรวมสินค้า

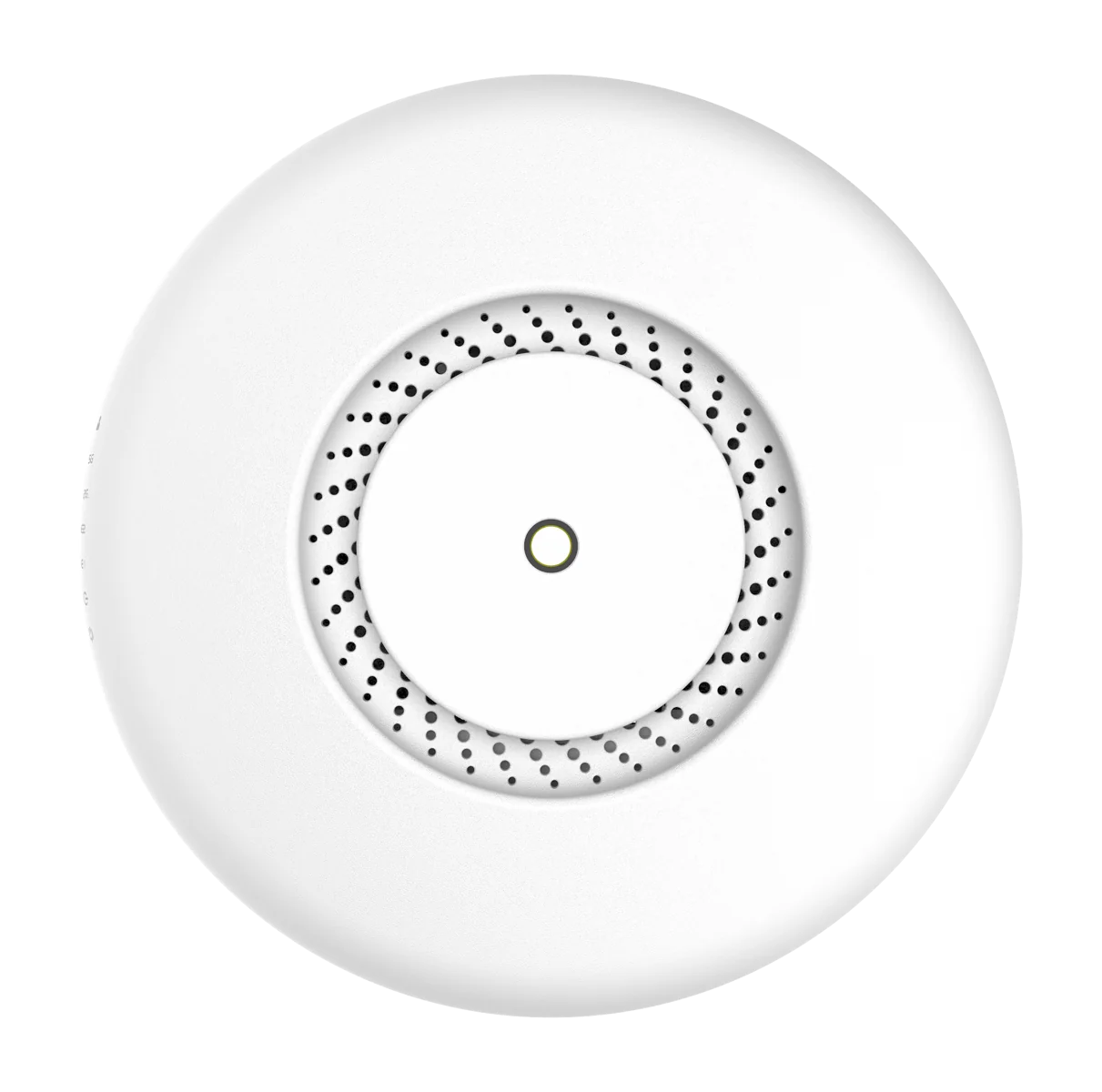

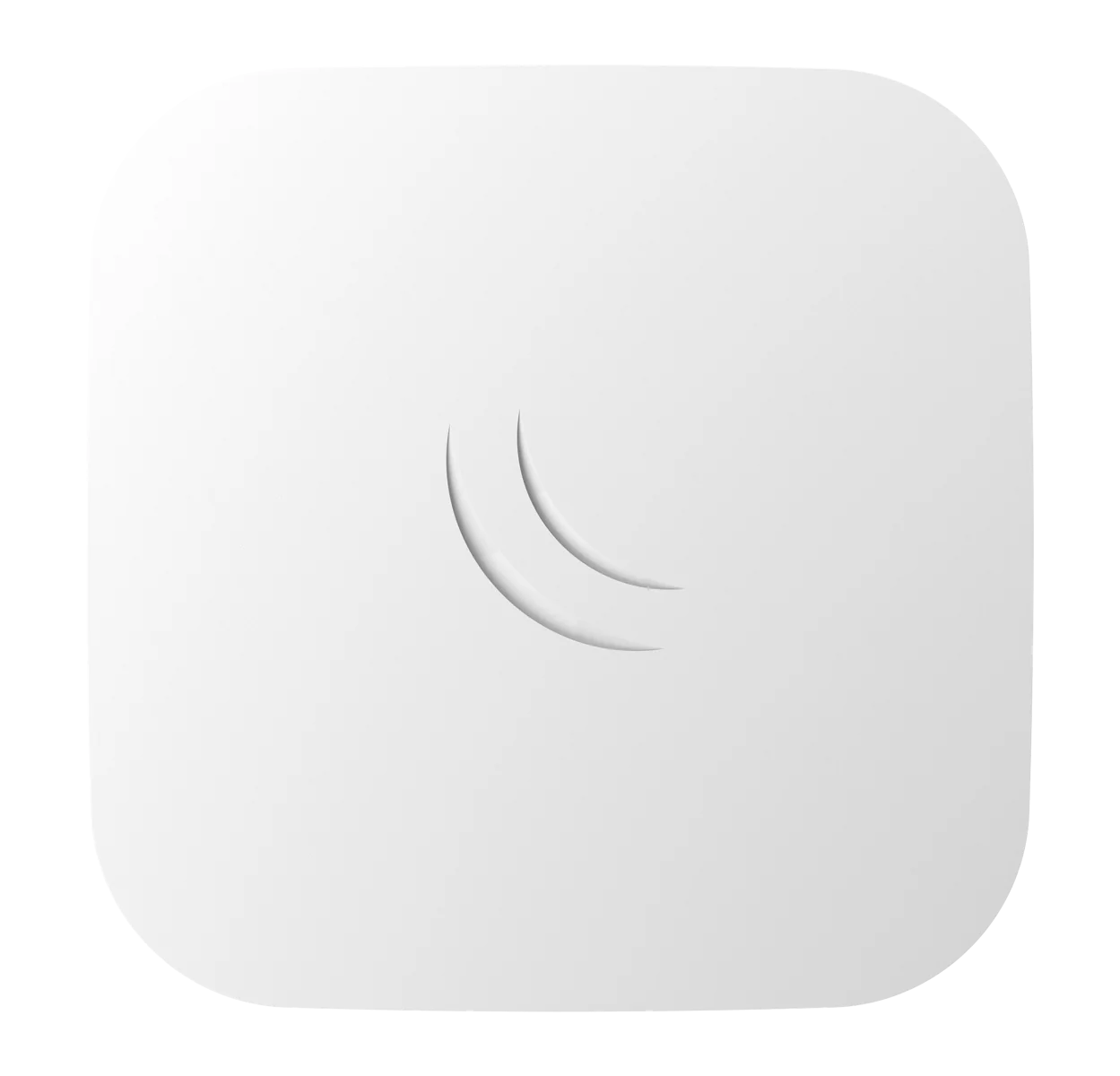

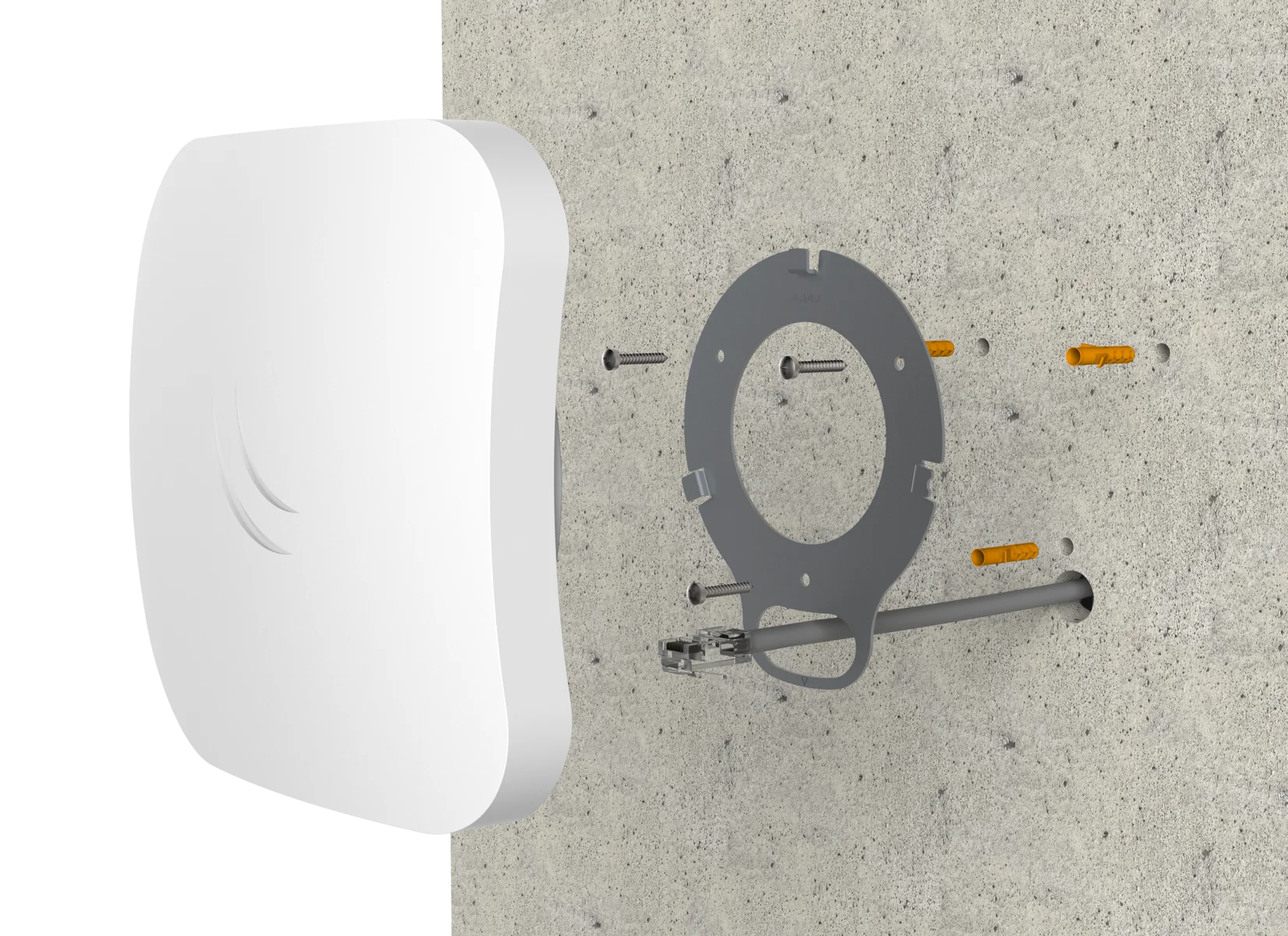

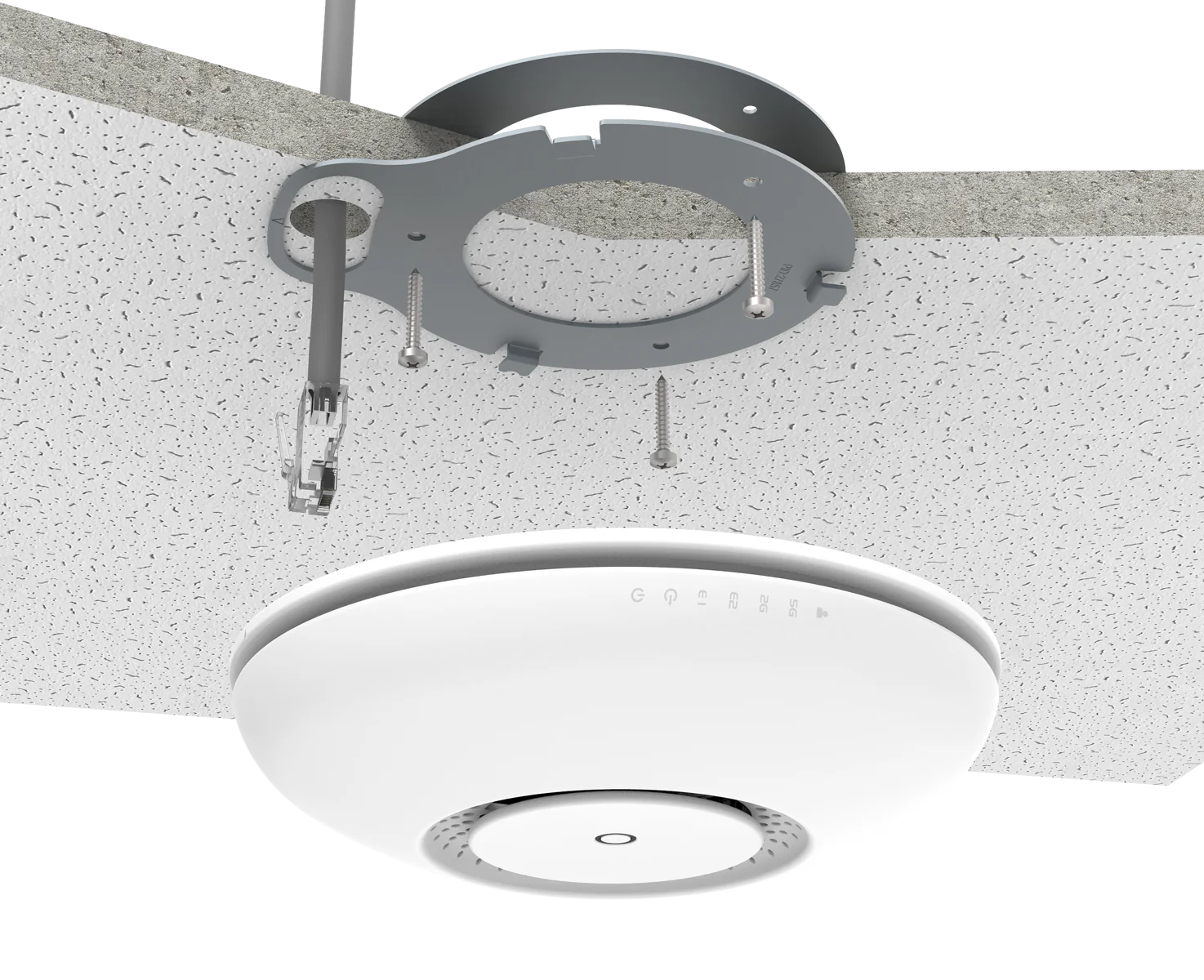

Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support
Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support
ข้อมูลจำเพาะ
Specifications
- Product code
- RBcAPGi-5acD2nD
- Suggested price
- $85.00
- Architecture
- ARM 32bit
- CPU
- IPQ-4018
- CPU core count
- 4
- CPU nominal frequency
- 488-896 (auto) MHz
- CPU Threads count
- 4
- Switch chip model
- IPQ-4018
- Dimensions
- Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
- RouterOS license
- 4
- Operating System
- RouterOS
- Size of RAM
- 128 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- MTBF
- Approximately 100'000 hours at 25C
- Tested ambient temperature
- -40°C to 50°C
Wireless capabilities
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Wireless 2.4 GHz Number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 2
- Wireless 2.4 GHz chip model
- IPQ-4018
- Wireless 2.4 GHz generation
- Wi-Fi 4
- Wireless 5 GHz Max data rate
- 867 Mbit/s
- Wireless 5 GHz Number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 2.5
- Wireless 5 GHz chip model
- IPQ-4018
- Wireless 5 GHz generation
- Wi-Fi 5
- WiFi speed
- AC1200
Ethernet
- 10/100/1000 Ethernet ports
- 2
Powering
- Number of DC inputs
- 1 (PoE-IN)
- Max power consumption
- 24 W
- Max power consumption without attachments
- 12 W
- PoE in
- 802.3af/at
- Cooling type
- Passive
- PoE in input Voltage
- 17-57 V
PoE-out
- PoE-out ports
- Ether2
- PoE out
- Passive PoE up to 57V
- Low voltage PoE-Out current limit
- 500 mA
- High voltage PoE-Out current limit
- 400 mA
- Max total out (A)
- 500 mA
Certification & Approvals
- Certification
- CE, FCC, IC, EAC, ROHS
- IP
- 20
Other
- Mode button
- Yes
