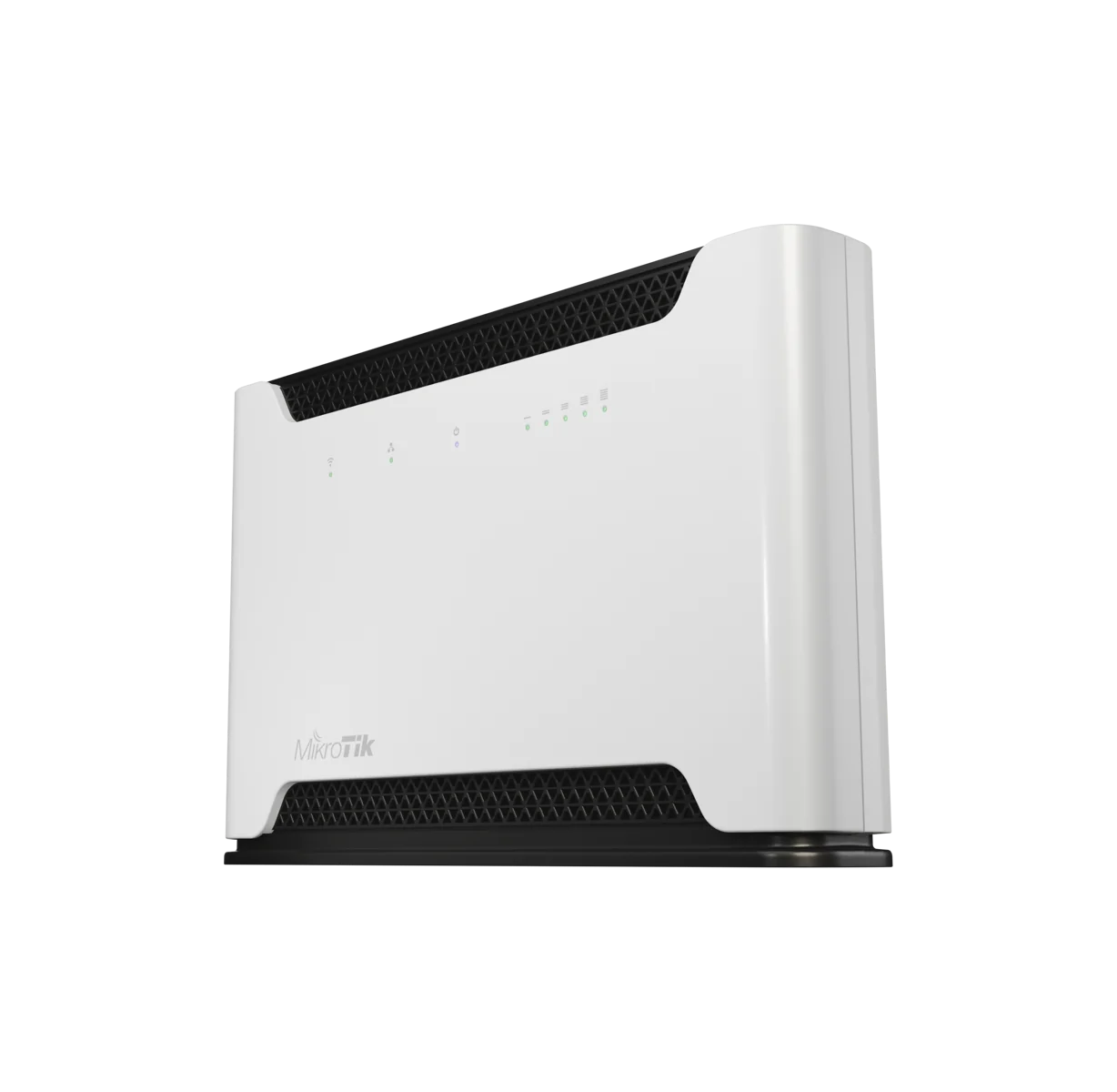

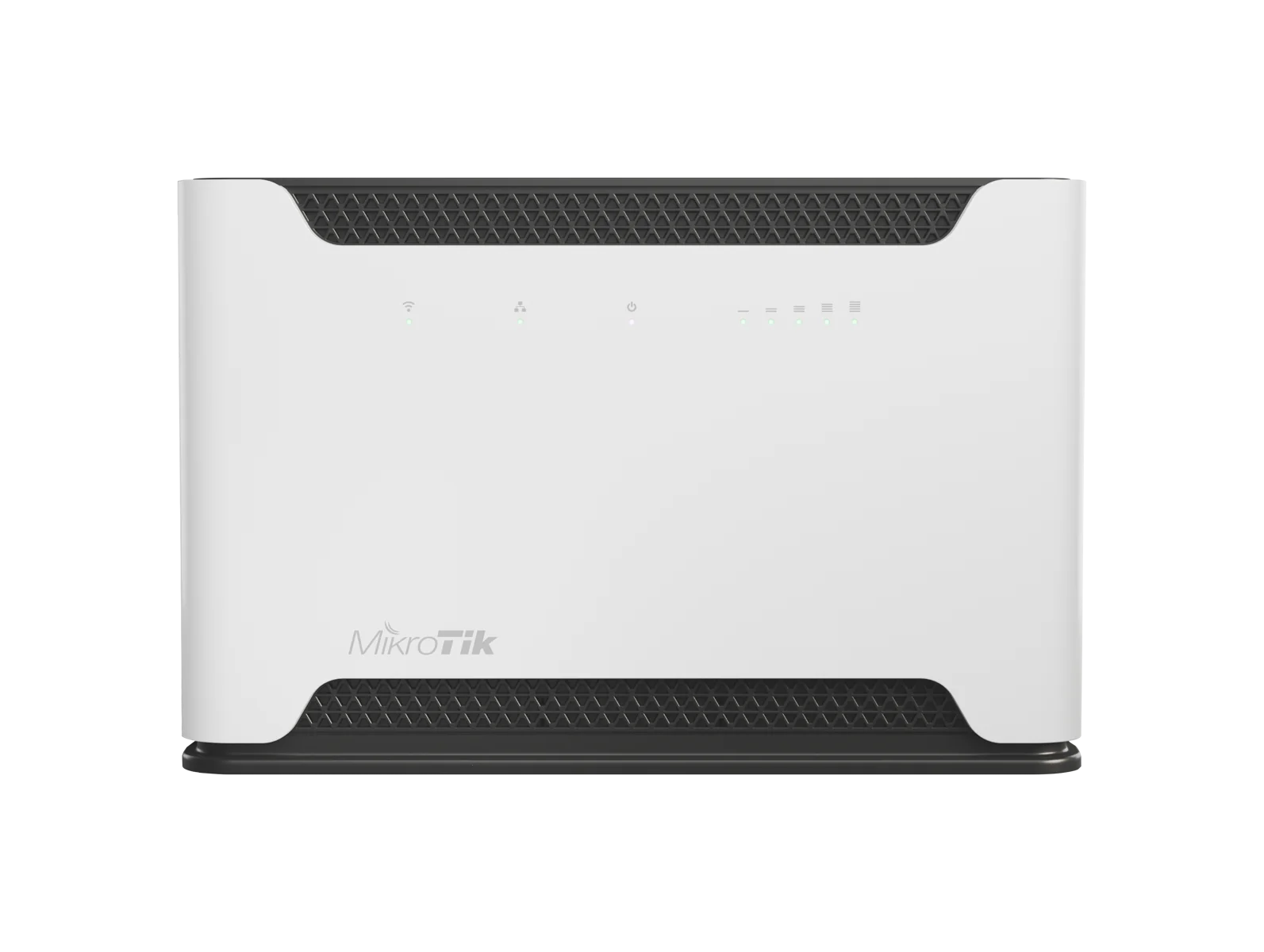

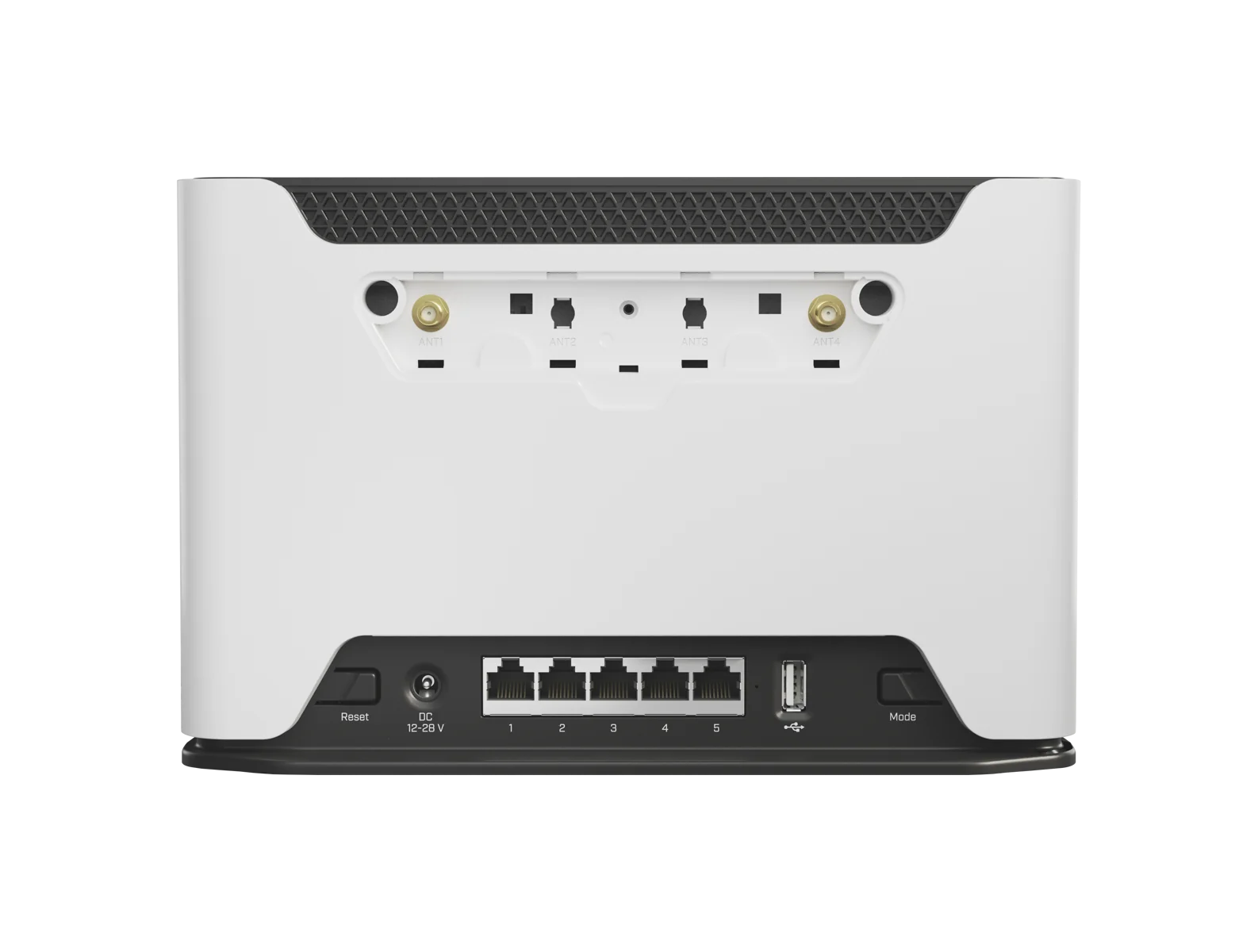

Chateau LTE6-US

MikroTik

Chateau LTE6-US

รหัสสินค้า: D53G-5HacD2HnD-TC&EG06-A

จุดเชื่อมต่อบ้านที่รองรับ LTE6 ความเร็วสูงสุด 300 Mbps พร้อมพอร์ต Gigabit Ethernet 5 พอร์ต, CPU quad-core, รองรับ AT&T และ T-Mobile

  • 1G
THB 13,608.00
MikroTik Chateau LTE6-US—
THB 13,608.00

จุดเด่น

  • LTE6
  • Gigabit Ethernet
  • quad-core CPU
  • carrier certified

ภาพรวมสินค้า

US carrier-certified (AT&T, T-Mobile) home access point with LTE6 support for speeds up to 300 Mbps. With 5x Gigabit Ethernet ports, a powerful quad-core CPU, and a refreshingly tasteful design, this device is the right choice for most homes.
US carrier-certified (AT&T, T-Mobile) home access point with LTE6 support for speeds up to 300 Mbps. With 5x Gigabit Ethernet ports, a powerful quad-core CPU, and a refreshingly tasteful design, this device is the right choice for most homes.

ข้อมูลจำเพาะ

Specifications

Product code
D53G-5HacD2HnD-TC&EG06-A
Suggested price
$189.00
Architecture
ARM 32bit
CPU
IPQ-4019
CPU core count
4
CPU nominal frequency
488-896 (auto) MHz
CPU Threads count
4
Switch chip model
IPQ-4019
Dimensions
240 x 156 x 44 mm
RouterOS license
4
Operating System
RouterOS v7
Size of RAM
256 MB
Storage size
16 MB
Storage type
FLASH
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C

Powering

Number of DC inputs
1 (DC jack)
DC jack input Voltage
12-28 V
Max power consumption
19 W
Max power consumption without attachments
14.3 W
Cooling type
Passive

Mobile

3G Category
R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands
2 (1900MHz) 4 (1700MHz) 5 (850MHz)
LTE Category
6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands
2 (1900MHz) 4 (1700MHz) 5 (850MHz) 7 (2600MHz) 12 (700MHz) 13 (700 MHz) 25 (1900MHz) 26 (850MHz) 29 (700 MHz) 30 (2300 MHz) 66 (1700MHz)
TAC
01619900

Wireless specifications

Wireless 2.4 GHz Max data rate
300 Mbit/s
Wireless 2.4 GHz Number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
3
Wireless 2.4 GHz chip model
IPQ-4019
Wireless 2.4 GHz generation
Wi-Fi 4
Wireless 5 GHz Max data rate
867 Mbit/s
Wireless 5 GHz Number of chains
2
Wireless 5 GHz standards
802.11a/n/ac
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
IPQ-4019
Wireless 5 GHz generation
Wi-Fi 5

Ethernet

10/100/1000 Ethernet ports
5

Peripherals

Number of SIM slots
1 Modem (Micro SIM)
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1

Other

Mode button
Yes

Certification & Approvals

Certification
CE, FCC, EAC, ROHS

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
