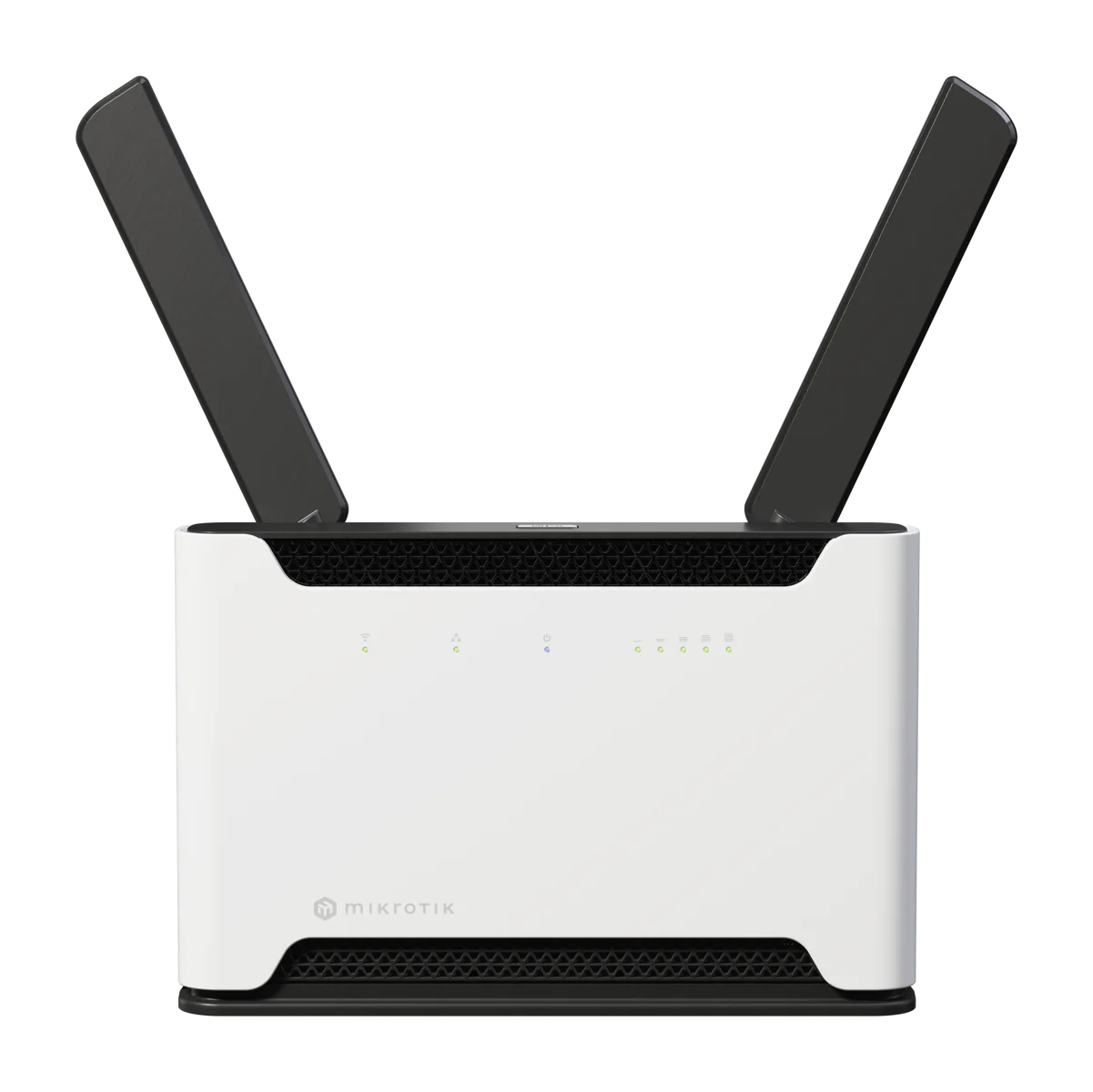

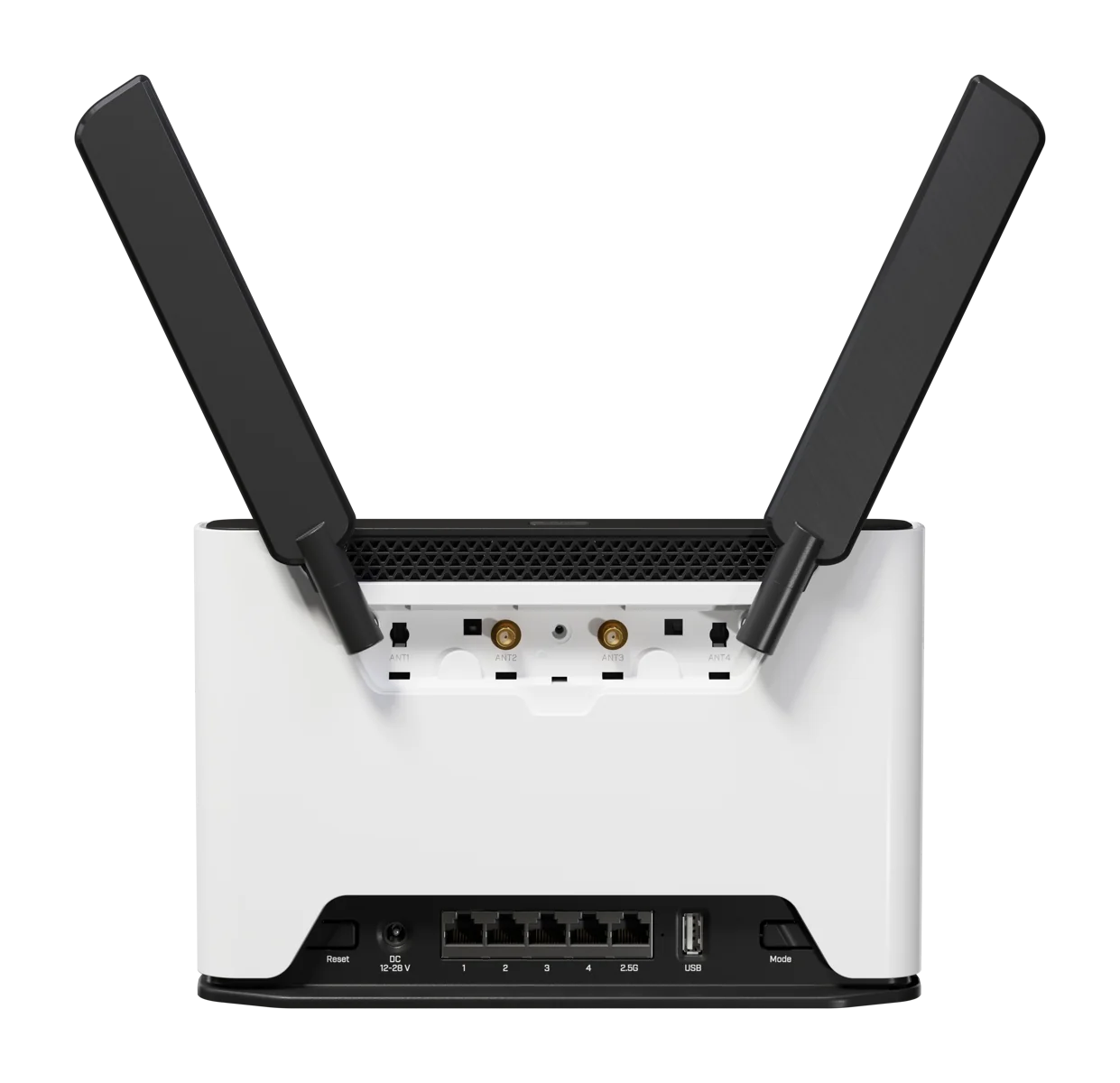

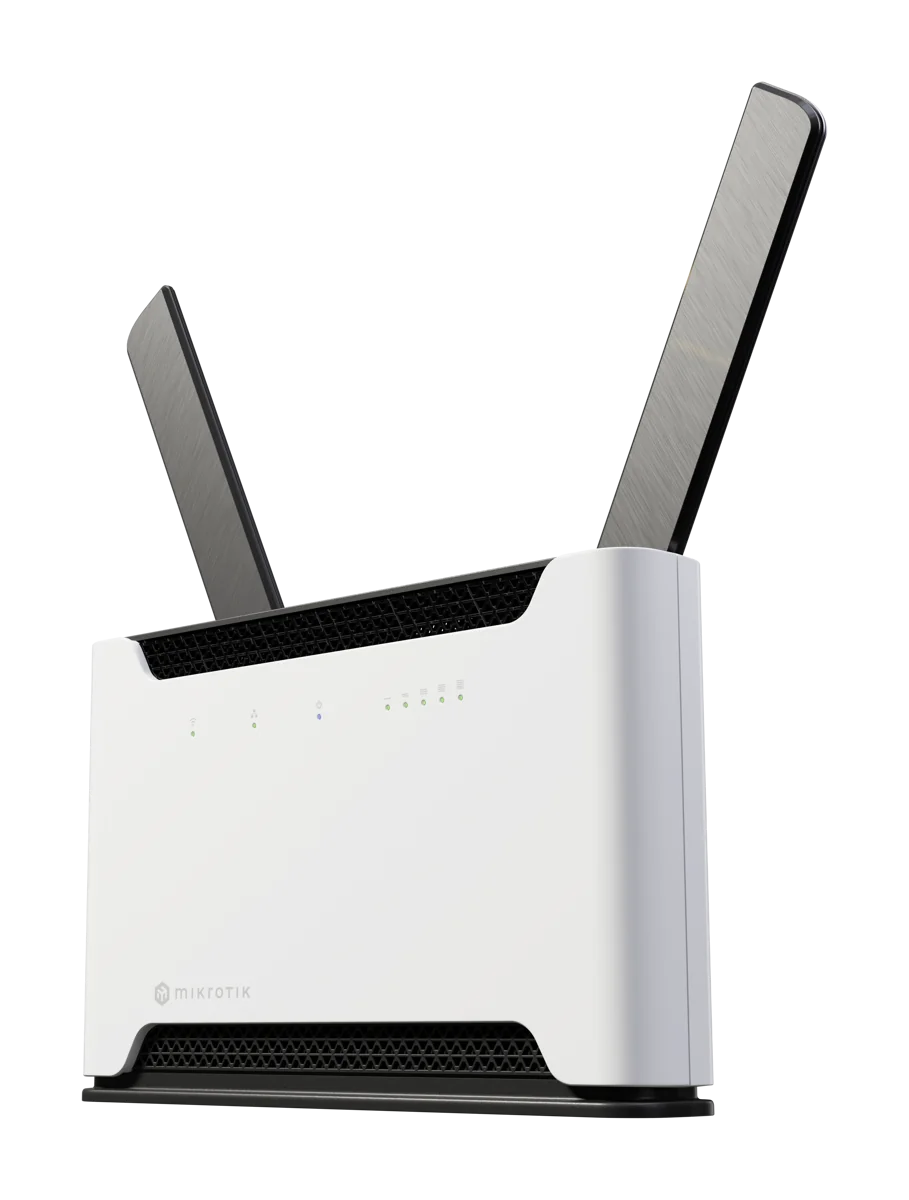

Chateau LTE18 ax

MikroTik

Chateau LTE18 ax

รหัสสินค้า: S53UG+5HaxD2HaxD-TC&EG18-EA

จุดเชื่อมต่อบ้านรุ่นใหม่ Wi-Fi 6 พร้อม LTE18 และพอร์ต 2.5 Gigabit Ethernet

  • 2.5G
  • Wi-Fi 6
THB 21,528.00
MikroTik Chateau LTE18 ax—
THB 21,528.00

จุดเด่น

  • Wi-Fi 6
  • LTE18
  • 2.5G Ethernet
  • improved CPU

ภาพรวมสินค้า

The best home AP just got even better. Generation 6 version of the Chateau LTE18. Much faster wireless, improved CPU, and now – with 2.5 Gigabit Ethernet!
The best home AP just got even better. Generation 6 version of the Chateau LTE18. Much faster wireless, improved CPU, and now – with 2.5 Gigabit Ethernet!

ข้อมูลจำเพาะ

Specifications

Product code
S53UG+5HaxD2HaxD-TC&EG18-EA
Suggested price
$299.00
Architecture
ARM 64bit
CPU
IPQ-6010
CPU core count
4
CPU nominal frequency
auto (864 -1800) MHz
CPU Threads count
4
Switch chip model
IPQ-6010
Dimensions
240 x 156 x 44 mm
RouterOS license
4
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 65°C

Powering

Number of DC inputs
1 (DC jack)
DC jack input Voltage
12-28 V
Max power consumption
19 W
Max power consumption without attachments
16 W
Cooling type
Passive

Mobile

3G Category
R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands
1 (2100MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz)
LTE Category
18 (1.2Gbps Downlink, 150Mbps Uplink)
MIMO DL
4x4
MIMO UL
1x1
LTE FDD bands
1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz)
LTE TDD bands
38 (2600MHz) 40 (2300MHz) 41 (2500MHz)
TAC
86981604

Wireless specifications

Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz Number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
3
Wireless 2.4 GHz chip model
QCN-5022
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz Max data rate
1200 Mbit/s
Wireless 5 GHz Number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
6
Wireless 5 GHz chip model
QCN-5052
Wireless 5 GHz generation
Wi-Fi 6

Ethernet

10/100/1000 Ethernet ports
4
Number of 2.5G Ethernet ports
1

Peripherals

Number of SIM slots
1 Modem (Micro SIM)
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1

Other

PCB temperature monitor
Yes
Voltage Monitor
Yes
Mode button
Yes

Certification & Approvals

Certification
CE, EAC, ROHS
IP
20

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
