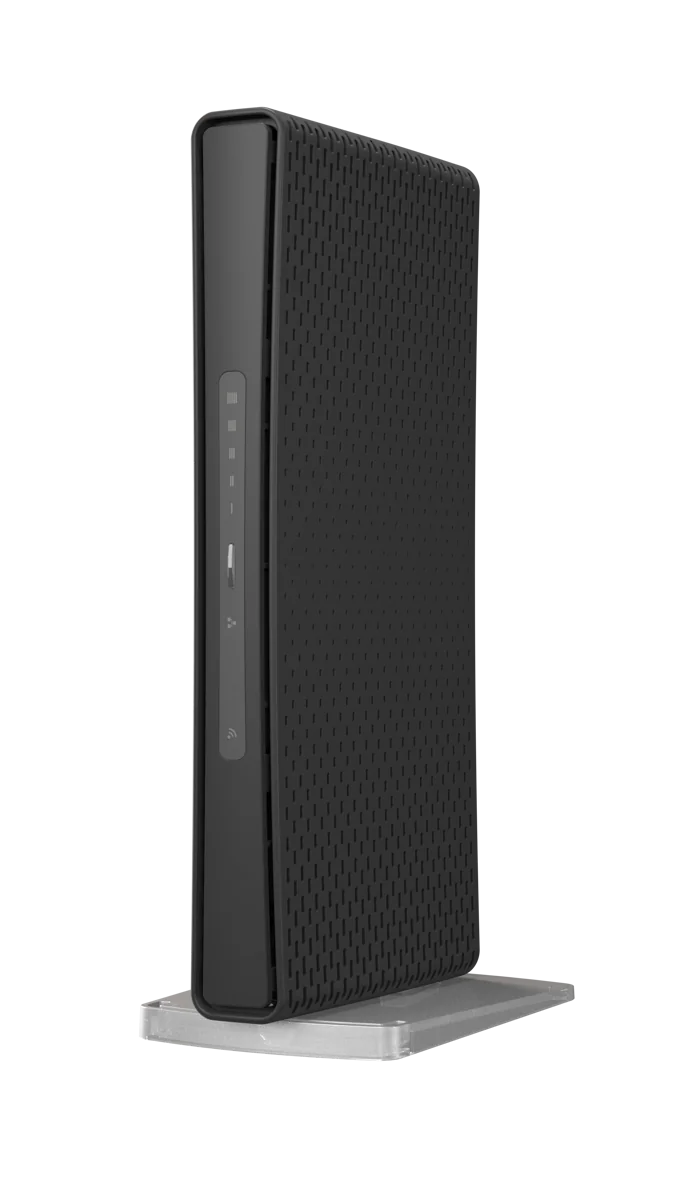

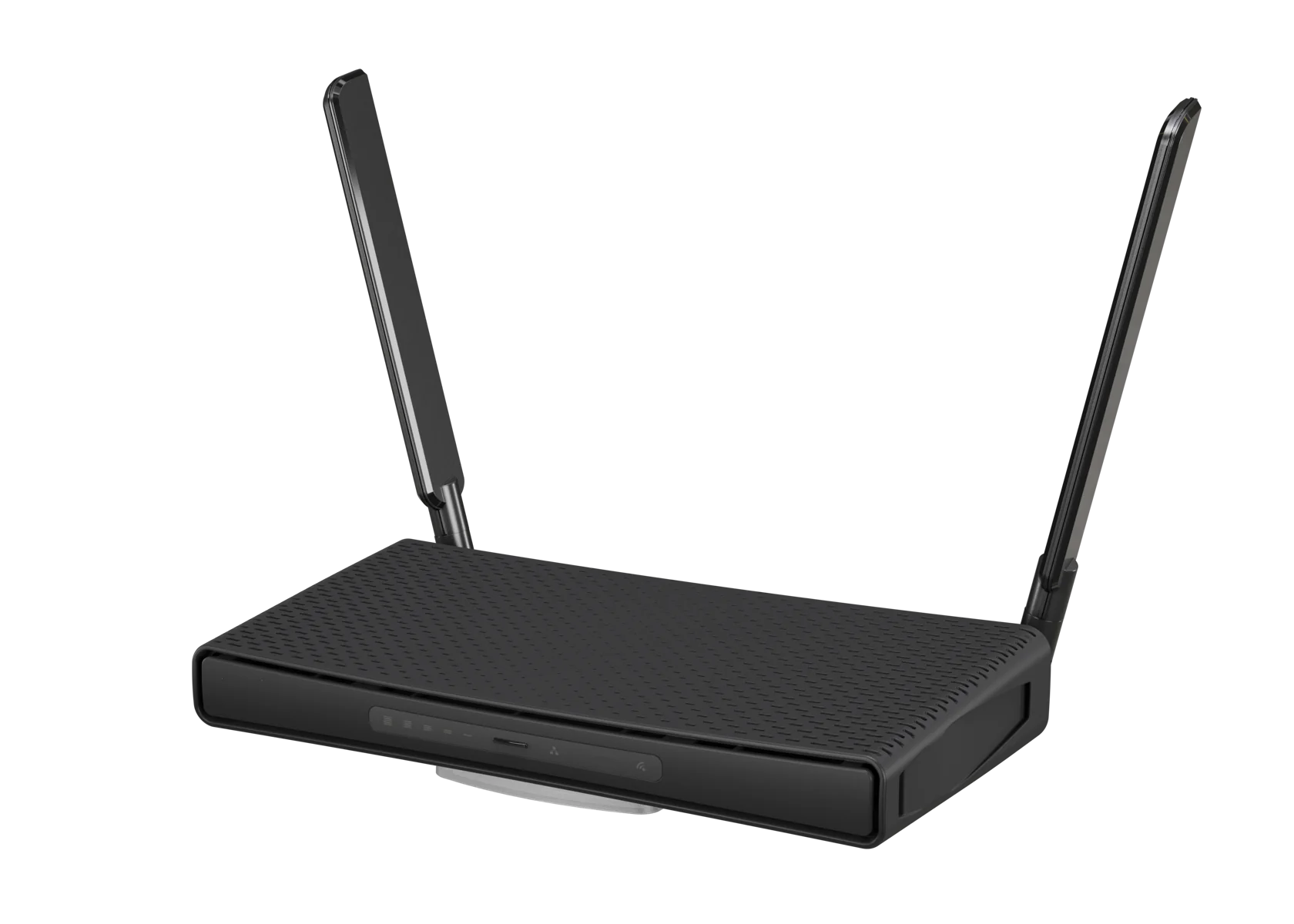

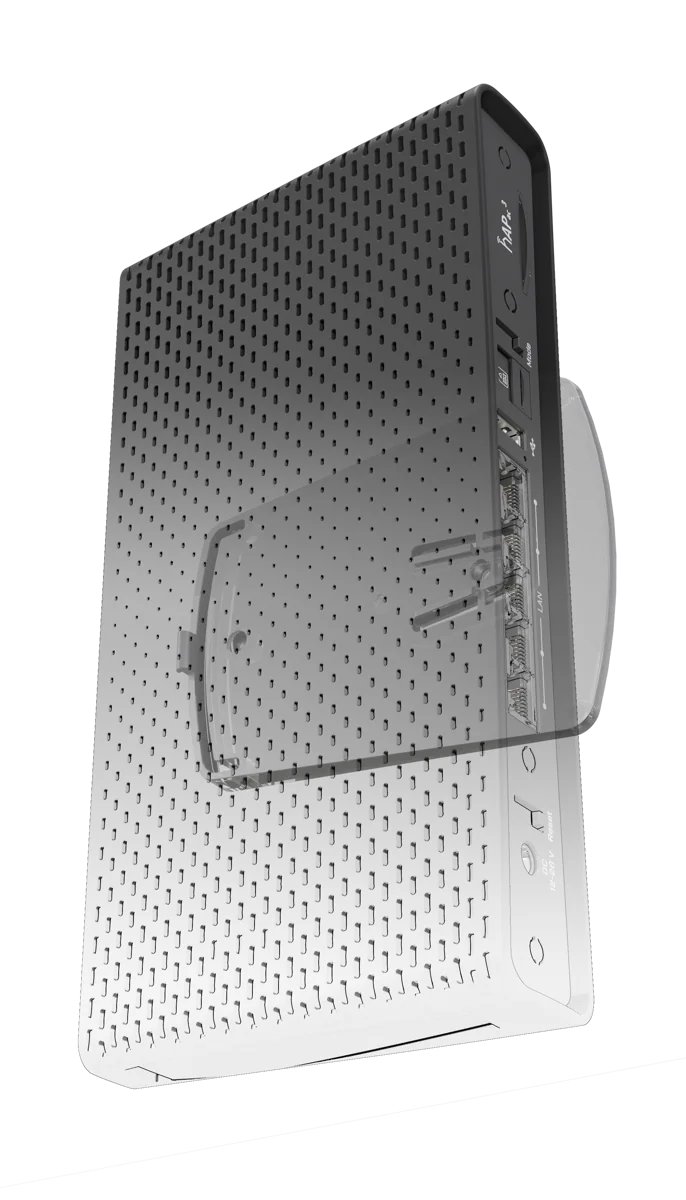

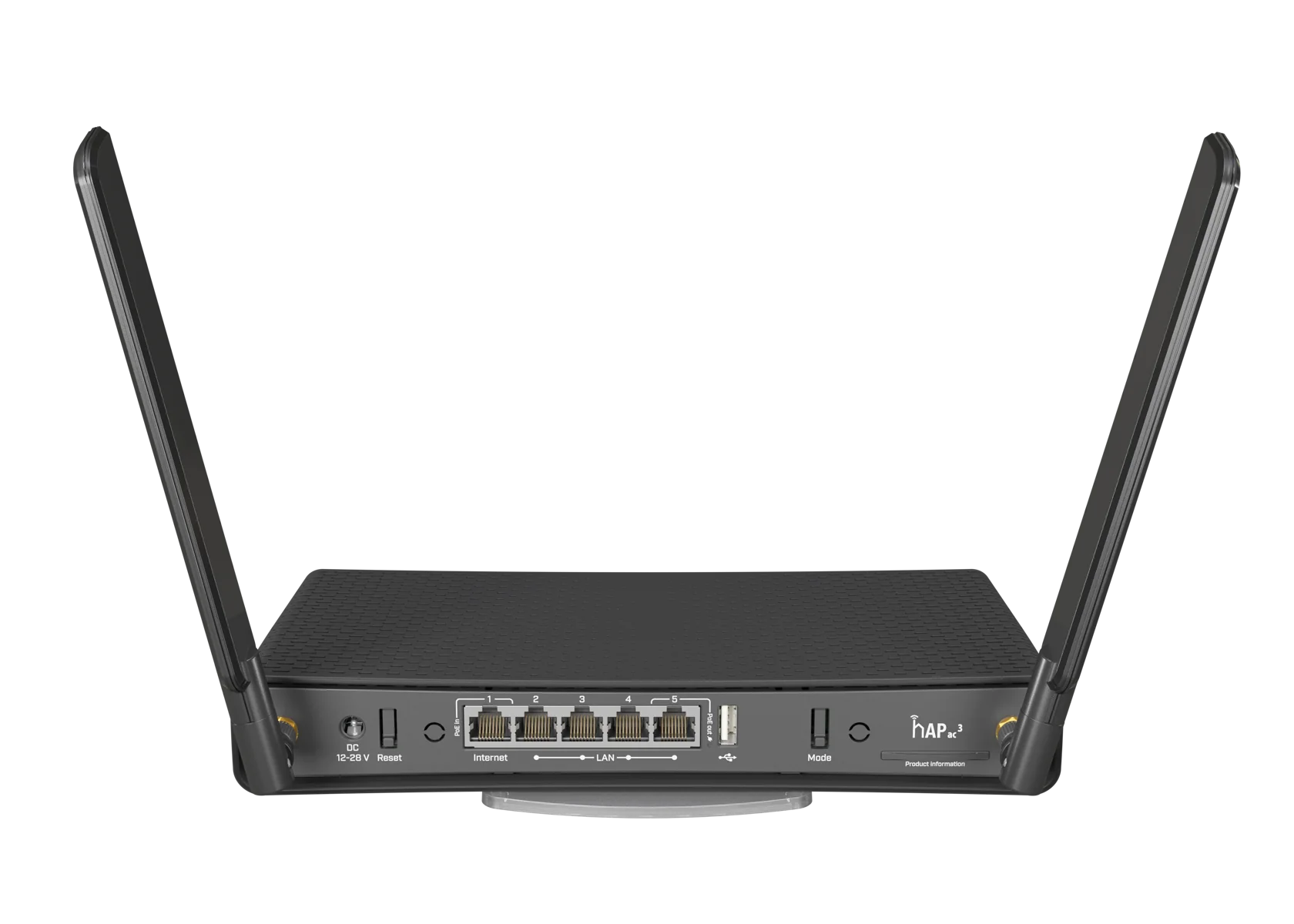

hAP ac³

MikroTik

hAP ac³

รหัสสินค้า: RBD53iG-5HacD2HnD

เราเตอร์ไร้สายดูอัลแบนด์ พร้อมพอร์ต Gigabit Ethernet 5 พอร์ต และเสาอากาศภายนอกเกนสูง

  • 1G
  • Wi-Fi
THB 7,848.00
MikroTik hAP ac³—
THB 7,848.00

จุดเด่น

  • Gigabit Ethernet
  • dual-band
  • external antennas

ภาพรวมสินค้า

A wireless dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage.
A wireless dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage.

ข้อมูลจำเพาะ

Specifications

Product code
RBD53iG-5HacD2HnD
Suggested price
$109.00
Architecture
ARM 32bit
CPU
IPQ-4019
CPU core count
4
CPU nominal frequency
448-896 (auto) MHz
CPU Threads count
4
Switch chip model
IPQ-4019
Dimensions
251 x 129 x 39 mm
RouterOS license
4
Operating System
RouterOS
Size of RAM
256 MB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C

Wireless capabilities

Wireless 2.4 GHz Max data rate
300 Mbit/s
Wireless 2.4 GHz Number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
3
Wireless 2.4 GHz chip model
IPQ-4019
Wireless 2.4 GHz generation
Wi-Fi 4
Wireless 5 GHz Max data rate
867 Mbit/s
Wireless 5 GHz Number of chains
2
Wireless 5 GHz standards
802.11a/n/ac
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
IPQ-4019
Wireless 5 GHz generation
Wi-Fi 5
WiFi speed
AC1200

Ethernet

10/100/1000 Ethernet ports
5
Number of 1G Ethernet ports with PoE-out
1

Peripherals

Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1

Powering

Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-28 V
Max power consumption
30 W
Max power consumption without attachments
12 W
PoE in
Passive PoE
Cooling type
Passive
PoE in input Voltage
18-28 V

PoE-out

PoE-out ports
Ether5
PoE out
Passive PoE
Low voltage PoE-Out current limit
0.5 A
Max total out (A)
0.5 A

Certification & Approvals

Certification
CE, FCC, IC, EAC, ROHS
IP
IP20

Other

Mode button
Yes

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
