Chateau PRO ax

MikroTik

Chateau PRO ax

รหัสสินค้า: H53UiG-5HaxQ2HaxQ

จุดเชื่อมต่อบ้าน Wi-Fi 6 สำหรับผู้ใช้งานขั้นสูง พร้อมระบบไร้สายและ CPU ที่ทรงพลัง

  • Wi-Fi 6
THB 14,328.00
MikroTik Chateau PRO ax—
THB 14,328.00

จุดเด่น

  • Wi-Fi 6
  • 802.11ax
  • powerful CPU

ภาพรวมสินค้า

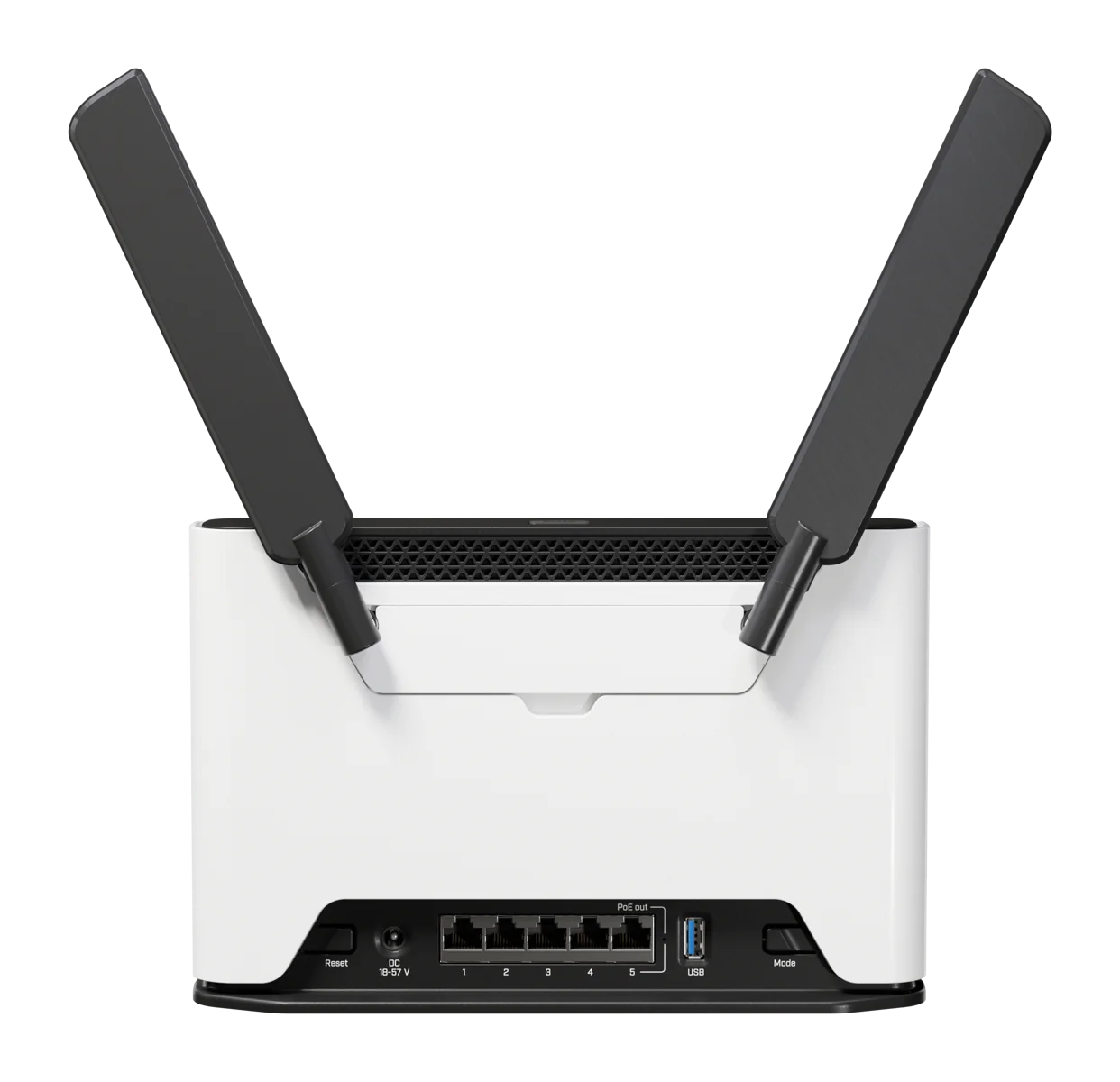

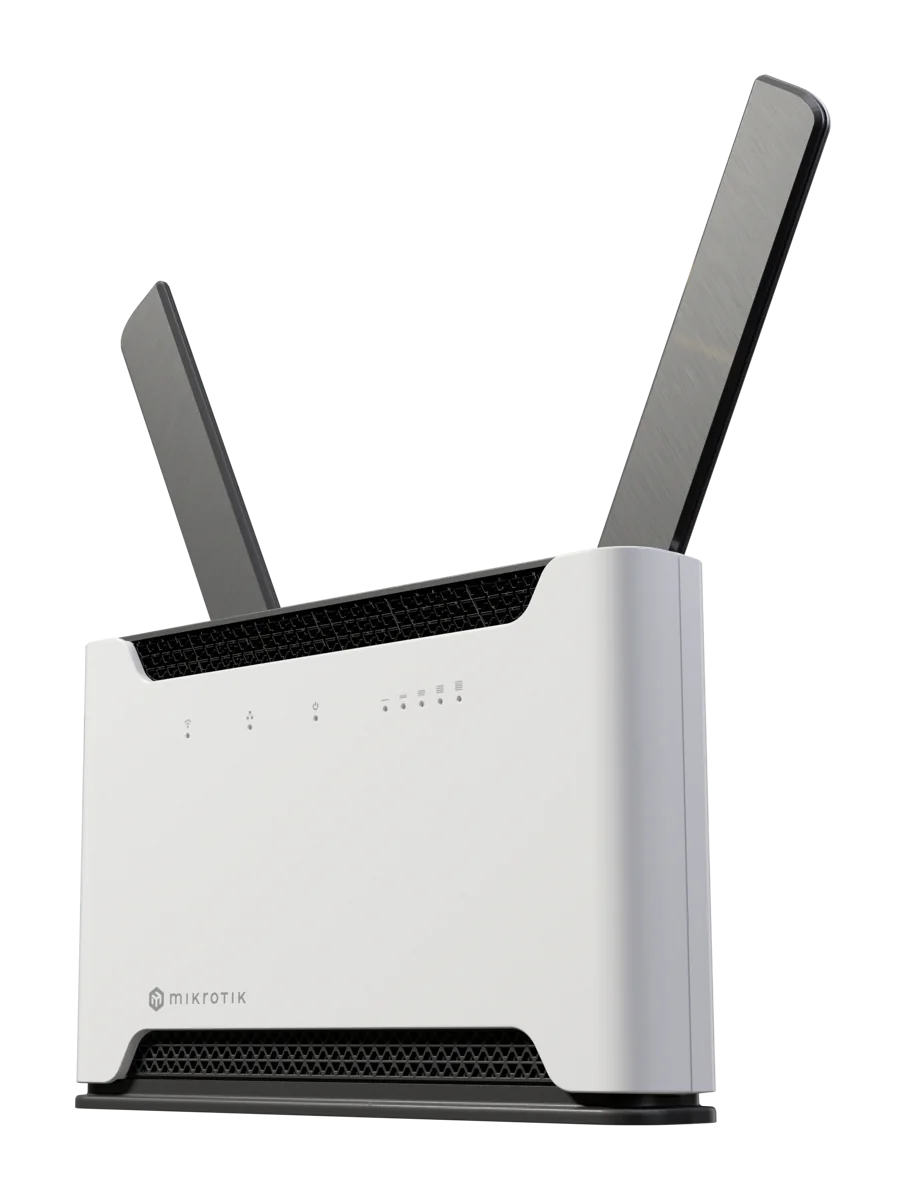

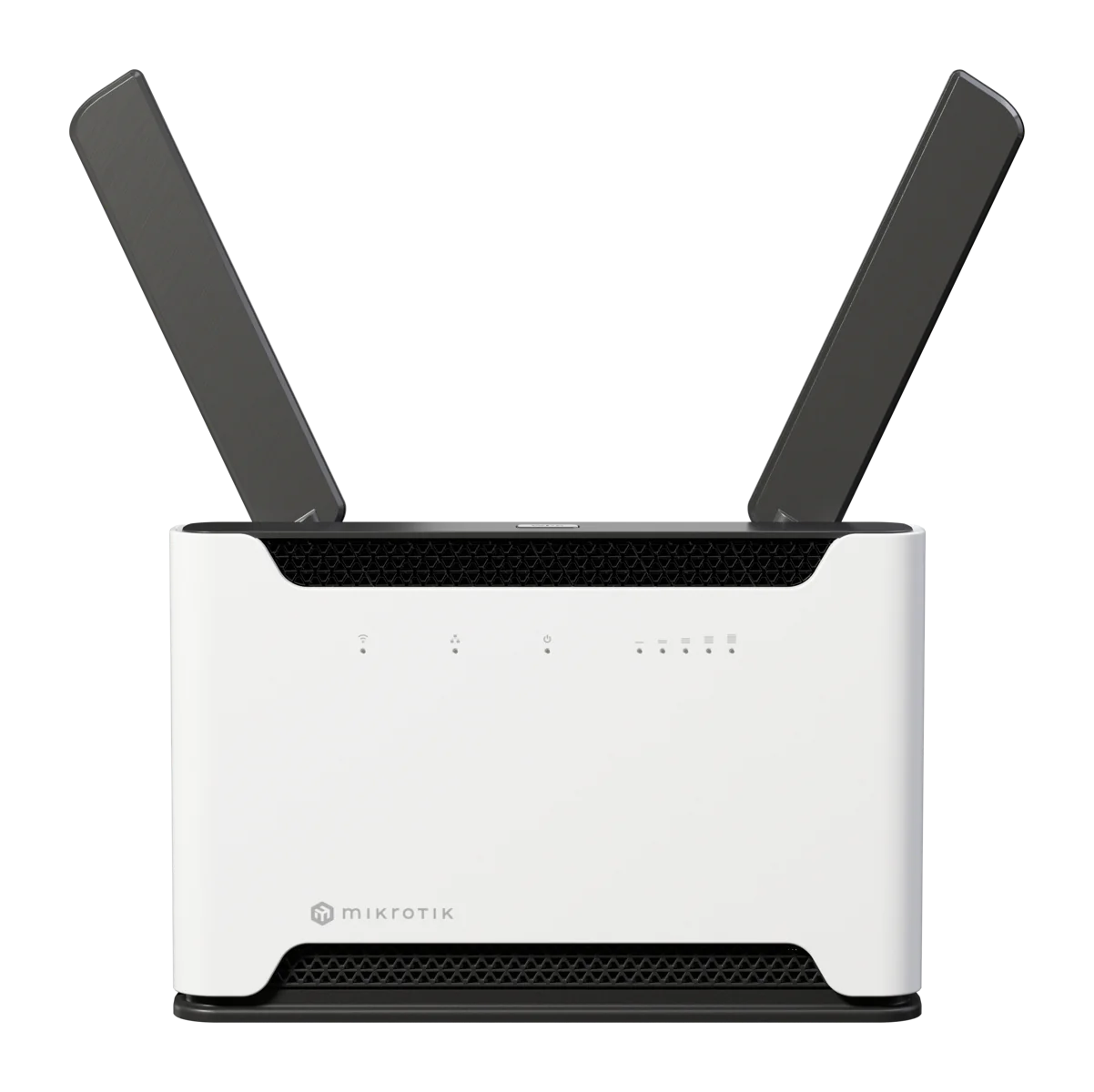

A Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU.
A Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU.

ข้อมูลจำเพาะ

Specifications

Product code
H53UiG-5HaxQ2HaxQ
Suggested price
$199.00
Architecture
ARM 64bit
CPU
IPQ-8072A
CPU core count
4
CPU nominal frequency
2208 MHz
CPU Threads count
4
Switch chip model
IPQ-8072
RouterOS license
6
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C

Wireless capabilities

Wireless 2.4 GHz Max data rate
1148 Mbit/s
Wireless 2.4 GHz Number of chains
4
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
5
Wireless 2.4 GHz chip model
QCN-5024
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz Max data rate
2400 Mbit/s
Wireless 5 GHz Number of chains
4
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
6
Wireless 5 GHz chip model
QCN-5054
Wireless 5 GHz generation
Wi-Fi 6
WiFi speed
AX3600

Ethernet

10/100/1000 Ethernet ports
5
Number of 1G Ethernet ports with PoE-out
1

Peripherals

Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1.5

Powering

Number of DC inputs
1 (DC jack)
DC jack input Voltage
18-57 V
Max power consumption
55 W (Networked standby (HiNA) ≤ 8 W)
Max power consumption without attachments
18 W
Cooling type
Passive

PoE-out

PoE-out ports
Ether5
PoE out
Passive PoE up to 57V
Low voltage PoE-Out current limit
600 mA
High voltage PoE-Out current limit
500 mA
Max total out (A)
0.600 A
Total output current
0.600
Total output power
22.8

Certification & Approvals

Certification
CE, FCC, IC, EAC, ROHS
IP
20

Other

CPU temperature monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes
Mode button
Yes

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
