RB5009UPr+S+IN

MikroTik

RB5009UPr+S+IN

รหัสสินค้า: RB5009UPr+S+IN

เราเตอร์ PoE-in และ PoE-out ทุกพอร์ต, พอร์ต 2.5G และ SFP+ 10G, เหมาะสำหรับ ISP ขนาดเล็กถึงกลาง

  • SFP+
  • in+out
  • mixed
THB 21,528.00
MikroTik RB5009UPr+S+IN—
THB 21,528.00

จุดเด่น

  • PoE-in
  • PoE-out
  • 2.5G
  • 10G
  • SFP+
  • ISP

ภาพรวมสินค้า

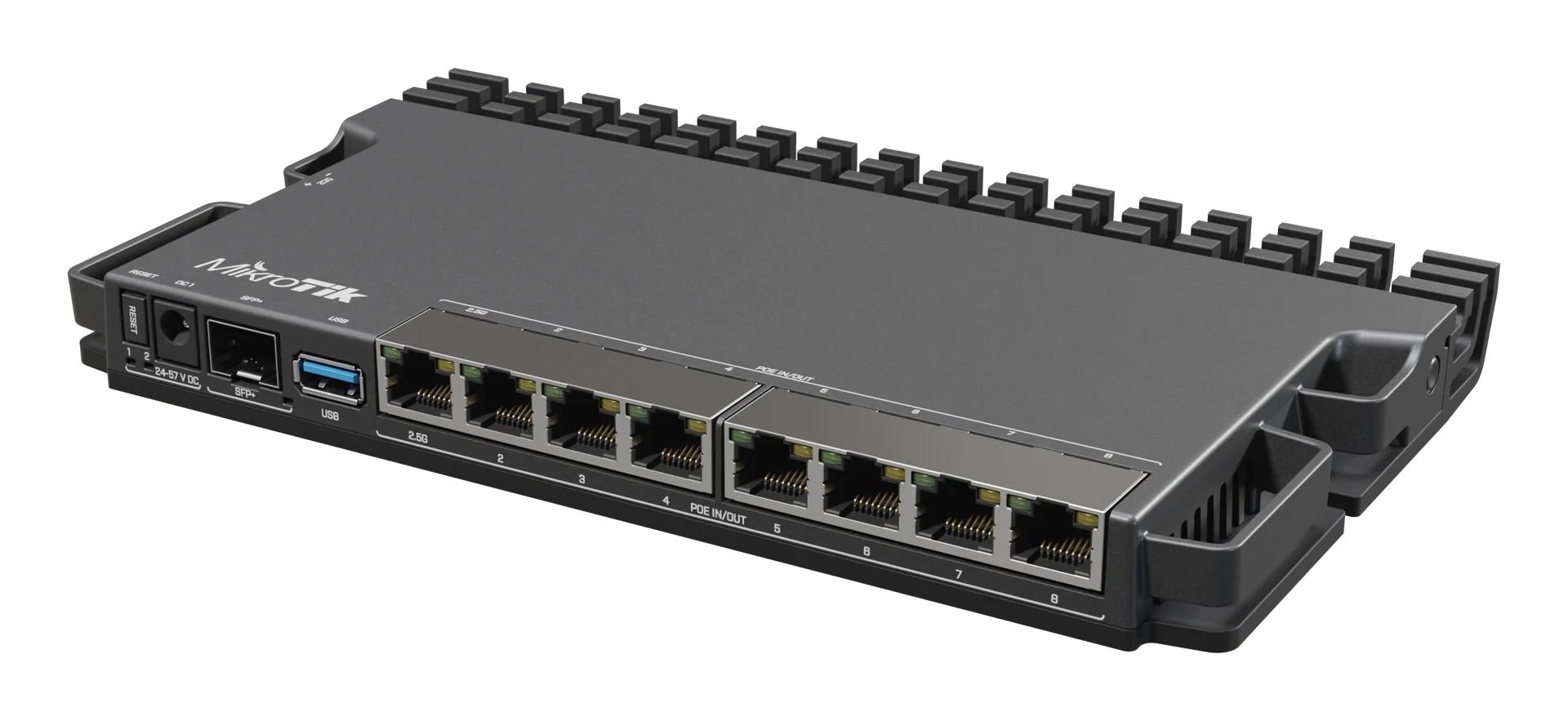

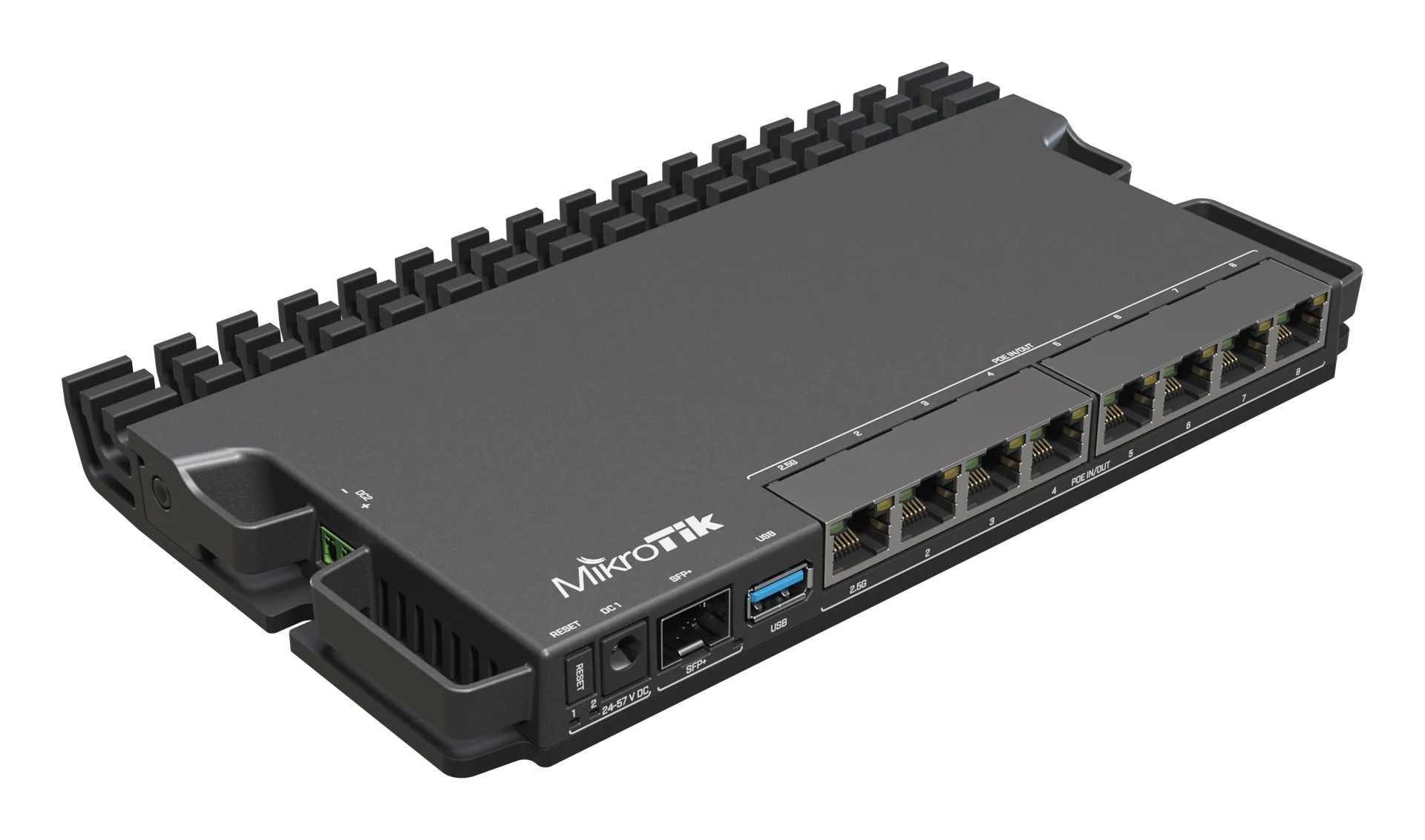

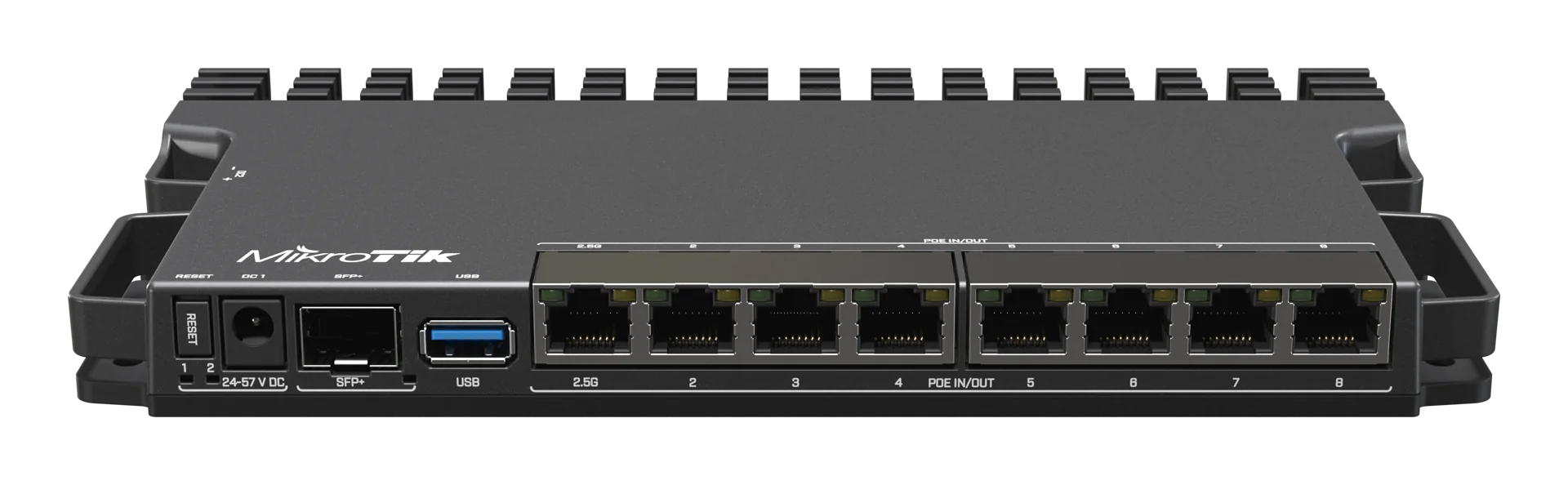

A new version of our popular heavy-duty RB5009 router with
PoE-in and PoE-out on all ports. Perfect for small and medium ISPs.
2.5 Gigabit Ethernet & 10 Gigabit SFP+, numerous powering options.
A new version of our popular heavy-duty RB5009 router with PoE-in and PoE-out on all ports. Perfect for small and medium ISPs. 2.5 Gigabit Ethernet & 10 Gigabit SFP+, numerous powering options.

ข้อมูลจำเพาะ

Specifications

Product code
RB5009UPr+S+IN
Suggested price
$299.00
Architecture
ARM 64bit
CPU
88F7040
CPU core count
4
CPU nominal frequency
350-1400 (auto) MHz
CPU Threads count
4
Switch chip model
88E6393
RouterOS license
5
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
1 GB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 60°C

Powering

Number of DC inputs
3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage
24-57 V
2-pin terminal input Voltage
24-57 V
Max power consumption
150 W
Max power consumption without attachments
16 W
PoE in
802.3af/at (ether1), Mode B (ether2-ether8)
Cooling type
Passive
PoE in input Voltage
24-57 V

PoE-out

PoE-out ports
Ether1-Ether8
PoE out
802.3af/at
Low voltage PoE-Out current limit
900 mA
High voltage PoE-Out current limit
440 mA
Max total out (A)
2.59 A
Total output current
2.28
Total output power
130

Ethernet

10/100/1000 Ethernet ports
7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)
7
Number of 2.5G Ethernet ports
1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in)
1

Fiber

SFP+ ports
1

Peripherals

Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1.5

Other

CPU temperature monitor
Yes
Current Monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes

Certification & Approvals

Certification
CE, EAC, ROHS
IP
20
