RB5009UG+S+IN

MikroTik

RB5009UG+S+IN

รหัสสินค้า: RB5009UG+S+IN

เราเตอร์สำหรับบ้านแล็บ, พอร์ต Gigabit และ 2.5G, พอร์ต SFP+ 10G, USB 3.0, CPU Quad-core

  • SFP+
  • mixed
THB 15,768.00
MikroTik RB5009UG+S+IN—
THB 15,768.00

จุดเด่น

  • 2.5G
  • 10G
  • SFP+
  • USB
  • home lab

ภาพรวมสินค้า

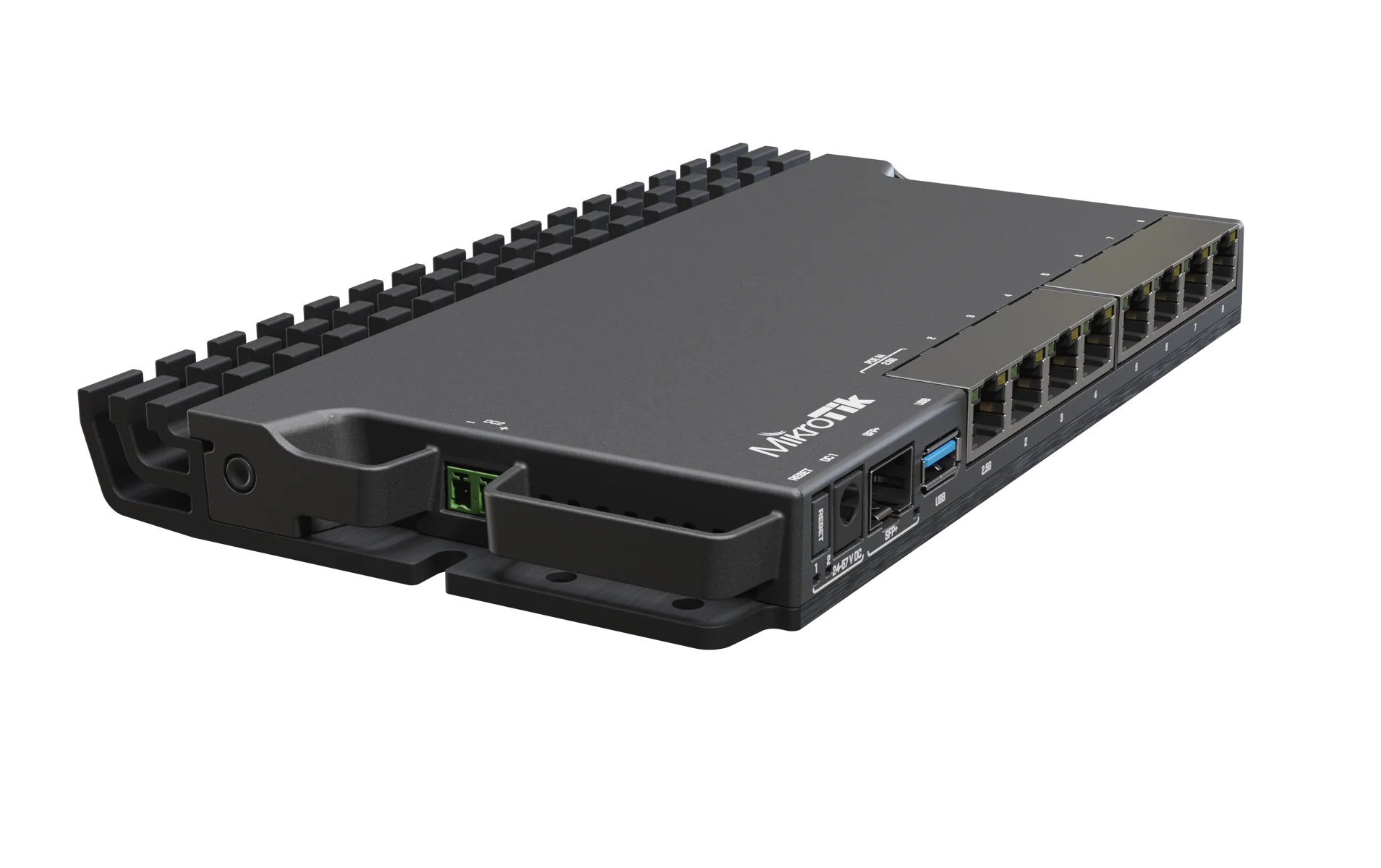

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.
The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

ข้อมูลจำเพาะ

Specifications

Product code
RB5009UG+S+IN
Suggested price
$219.00
Architecture
ARM 64bit
CPU
88F7040
CPU core count
4
CPU nominal frequency
350-1400 (auto) MHz
CPU Threads count
4
Switch chip model
88E6393
Dimensions
220 x 125 x 22 mm
RouterOS license
5
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
1 GB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 60°C

Powering

Number of DC inputs
3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage
24-57 V
2-pin terminal input Voltage
24-57 V
Max power consumption
25 W
Max power consumption without attachments
14 W
PoE in
802.3af/at
Cooling type
Passive
PoE in input Voltage
24-57 V

Ethernet

10/100/1000 Ethernet ports
7
Number of 2.5G Ethernet ports
1

Fiber

SFP+ ports
1

Peripherals

Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1.5

Other

CPU temperature monitor
Yes

Certification & Approvals

Certification
CE, EAC, ROHS

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
