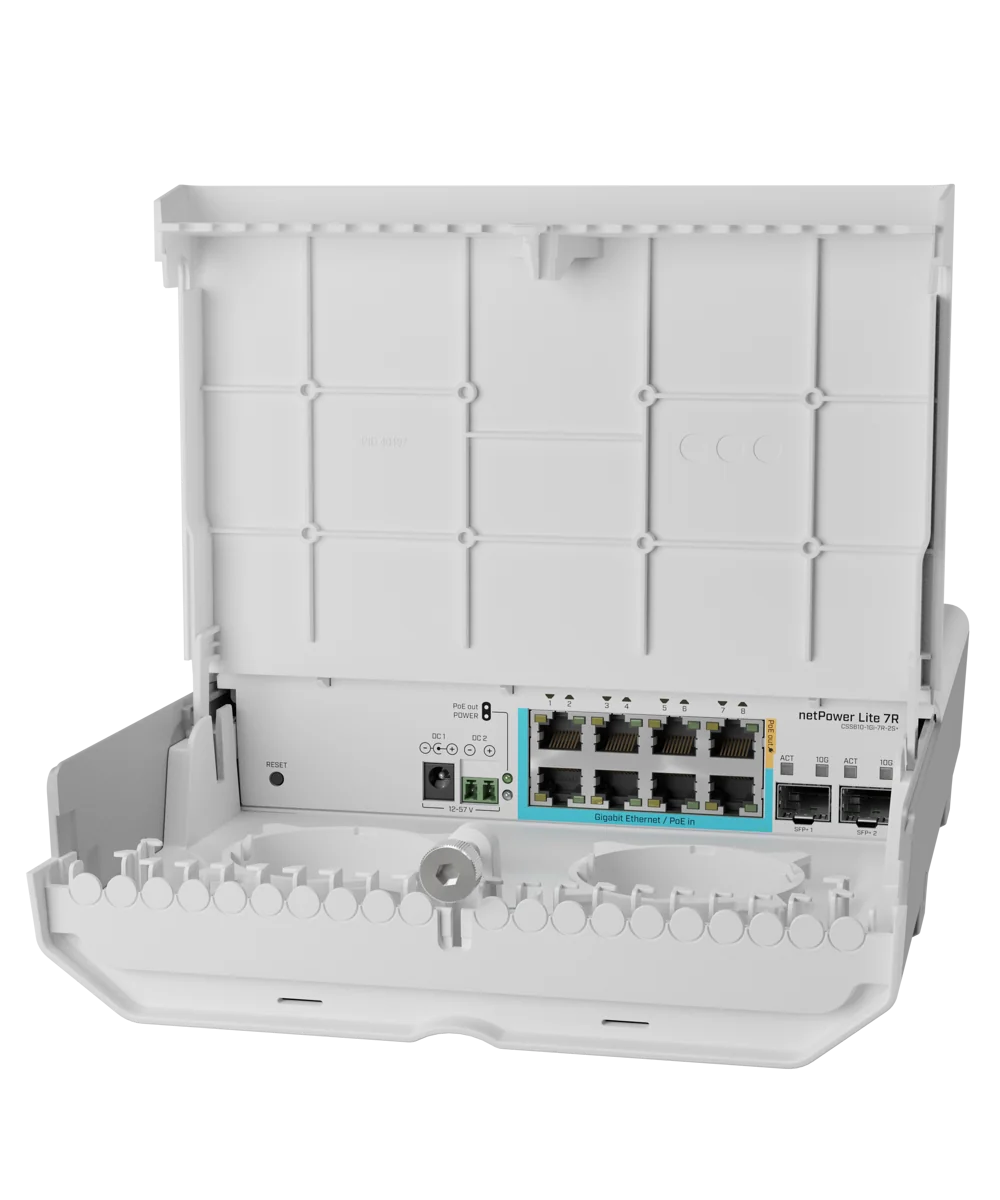

netPower Lite 7R

MikroTik

netPower Lite 7R

รหัสสินค้า: CSS610-1Gi-7R-2S+OUT

สวิตช์ outdoor พร้อม Reverse PoE, พอร์ต Gigabit และ SFP+ 10Gbps

  • SFP+
  • out
  • mixed
THB 10,008.00
MikroTik netPower Lite 7R—
THB 10,008.00

จุดเด่น

  • outdoor
  • reverse PoE
  • Gigabit
  • SFP+ 10G

ภาพรวมสินค้า

An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.
An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.

ข้อมูลจำเพาะ

Specifications

Product code
CSS610-1Gi-7R-2S+OUT
Suggested price
$139.00
Switch chip model
88E6193X
Dimensions
303.5 x 211.9 x 71.3/72.3 (left/right) mm
Operating System
SwitchOS Lite
Storage size
64 KB
Storage type
FLASH
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C

Powering

Number of DC inputs
3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage
12-57 V
2-pin terminal input Voltage
12-57 V
Max power consumption
29 W
Max power consumption without attachments
7 W
PoE in
Passive PoE
Cooling type
Passive
PoE in input Voltage
12-57 V

PoE-out

PoE-out ports
Ether8
PoE out
Passive PoE
Low voltage PoE-Out current limit
600 mA
High voltage PoE-Out current limit
450 mA
Max total out (A)
600 mA

Ethernet

10/100/1000 Ethernet ports
8
Number of 1G Ethernet ports with Reverse PoE (PoE-in)
7
Number of 1G Ethernet ports with PoE-out
1

Fiber

SFP+ ports
2

Certification & Approvals

Certification
CE, EAC, ROHS
IP
IP54

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
