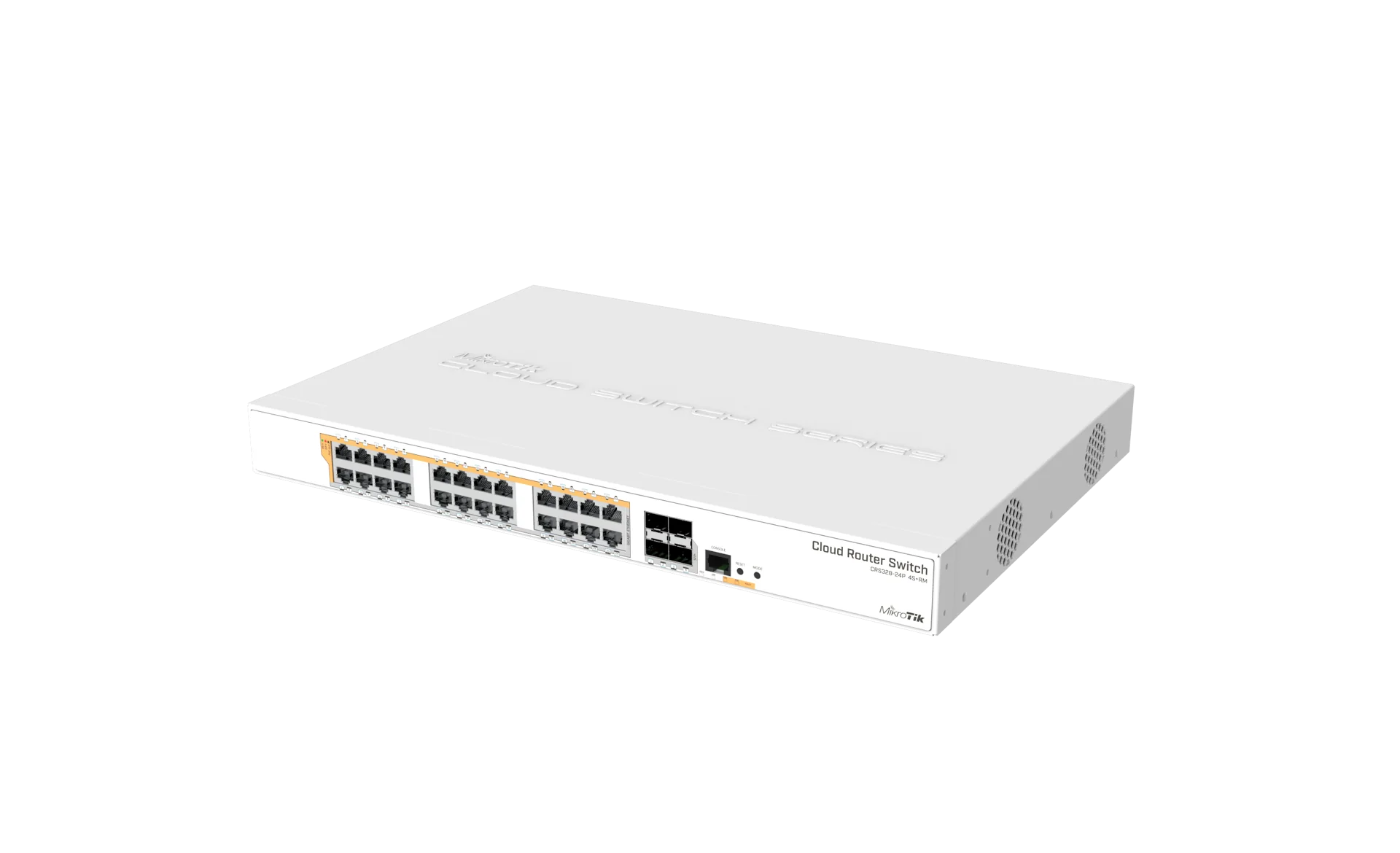

CRS328-24P-4S+RM

MikroTik

CRS328-24P-4S+RM

รหัสสินค้า: CRS328-24P-4S+RM

สวิตช์/เราเตอร์ 24 พอร์ต Gigabit PoE out, 4 พอร์ต SFP+ 10G, Dual Boot, 500W

  • SFP+
  • out
  • ARM
  • 1G
  • v7
THB 35,208.00
MikroTik CRS328-24P-4S+RM—
THB 35,208.00

จุดเด่น

  • PoE
  • SFP+
  • Dual Boot
  • 500W

ภาพรวมสินค้า

24 port Gigabit Ethernet router/switch with four 10Gbps SFP+ ports in 1U rackmount case, Dual Boot and PoE output, 500W
24 port Gigabit Ethernet router/switch with four 10Gbps SFP+ ports in 1U rackmount case, Dual Boot and PoE output, 500W

ข้อมูลจำเพาะ

Specifications

Product code
CRS328-24P-4S+RM
Suggested price
$489.00
Architecture
ARM 32bit
CPU
98DX3236
CPU core count
1
CPU nominal frequency
800 MHz
Switch chip model
98DX3236
Dimensions
443 x 300 x 44 mm
RouterOS license
5
Operating System
RouterOS / SwitchOS
Size of RAM
512 MB
Storage size
16 MB
Storage type
FLASH
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-20°C to 60°C

Powering

Number of AC inputs
1
AC input range
100-240
Number of PSU slots
1
Max power consumption
494 W
Max power consumption without attachments
44 W
Cooling type
2 fans

PoE-out

PoE-out ports
Ether1-Ether24
PoE out
802.3af/at
Low voltage PoE-Out current limit
1000 mA
High voltage PoE-Out current limit
450 mA
Max total out (A)
20 A

Ethernet

10/100/1000 Ethernet ports
24

Fiber

SFP+ ports
4

Peripherals

Serial console port
RJ45

Other

CPU temperature monitor
Yes
Current Monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes
Mode button
Yes

Certification & Approvals

Certification
CE, EAC, ROHS
IP
IP00

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
