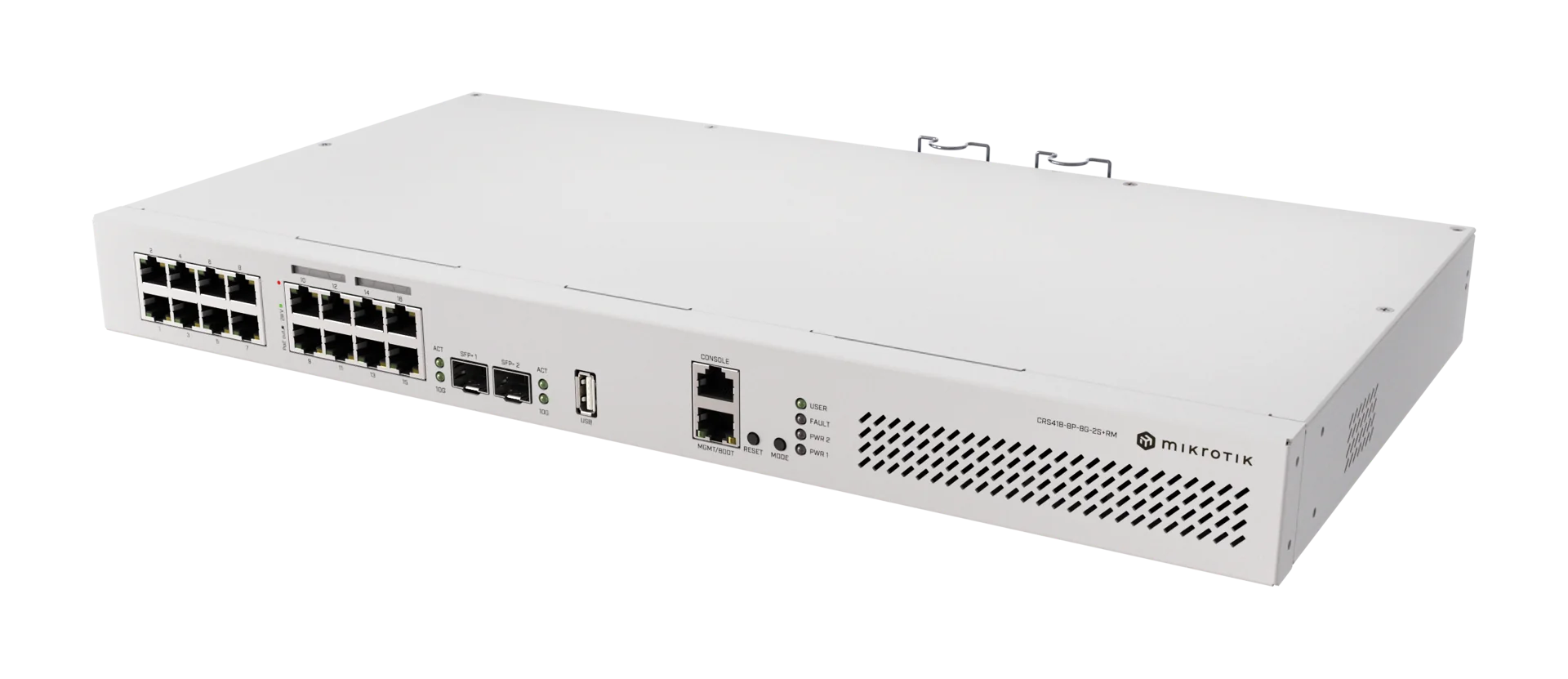

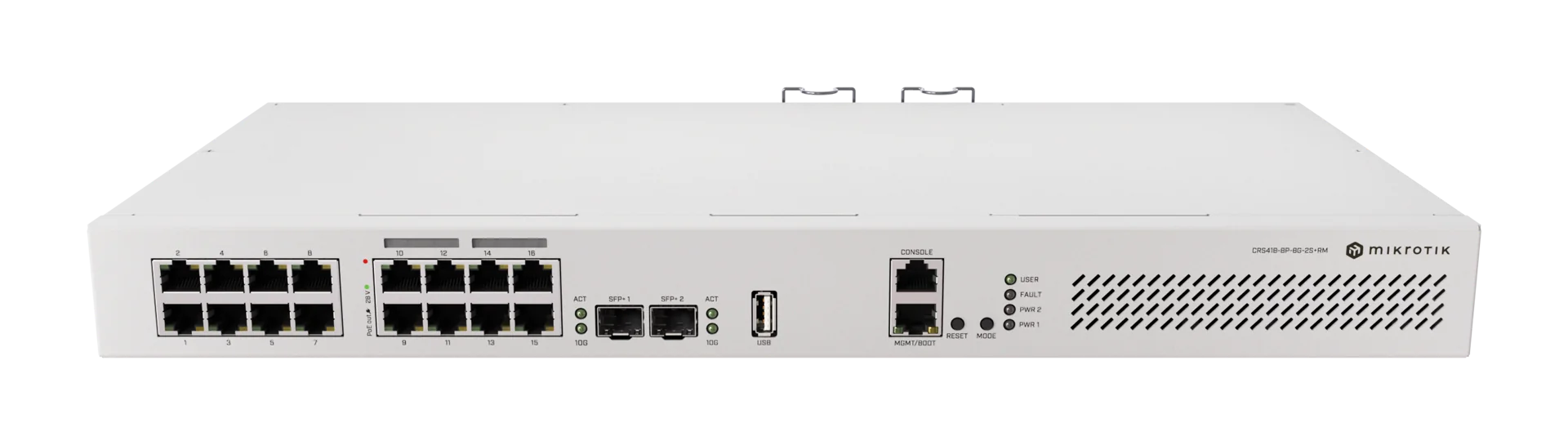

CRS418-8P-8G-2S+RM

MikroTik

CRS418-8P-8G-2S+RM

รหัสสินค้า: CRS418-8P-8G-2S+RM

สวิตช์ 16 พอร์ต Gigabit (8 พอร์ต PoE out) พร้อม 2 พอร์ต 10G SFP+ และ CPU ARM Quad-core 2.2 GHz รองรับการใช้งานเป็นเราเตอร์

  • SFP+
  • out
  • ARM
  • mixed
THB 32,328.00
MikroTik CRS418-8P-8G-2S+RM—
THB 32,328.00

จุดเด่น

  • L3 HW Offloading
  • Mighty Quad-core 2.2 GHz ARM CPU
  • 16x Gigabit Ethernet ports

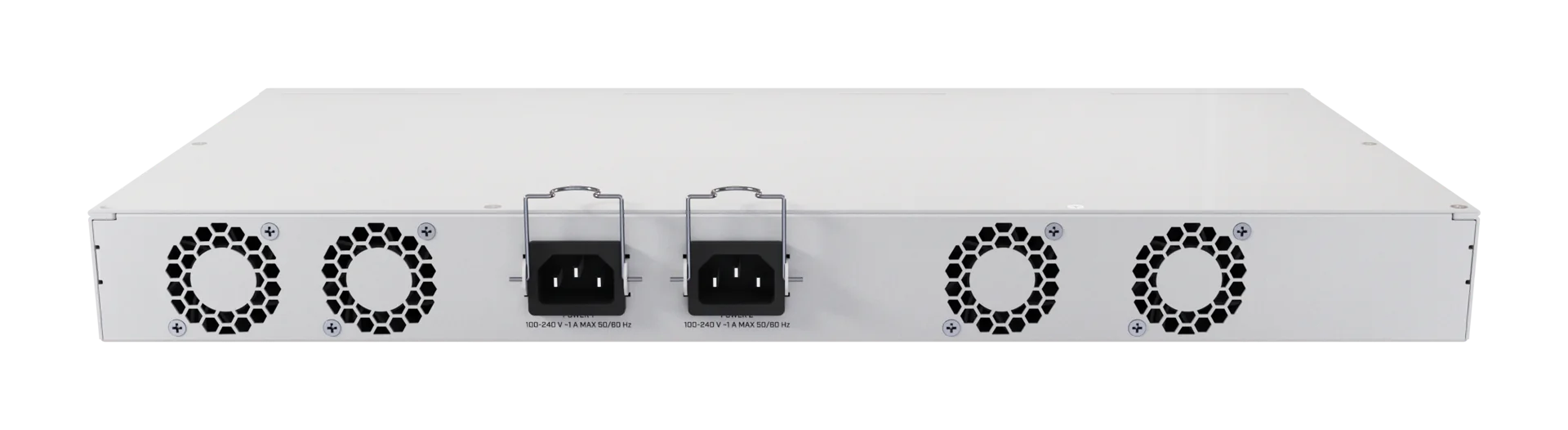

  • Dual-redundant power supplies
  • USB 3
  • PoE-out
  • 1 GB RAM
  • 2x 10G SFP+ ports

ภาพรวมสินค้า

PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading… in a single 1U device and for the best price on the market.

This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV ameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!

It is perfect for hybrid Layer 2/3 environments – whether you’re segmenting your network with VLANs or routing between them. Here’s why:

It’s a real multi-tasking champion that keeps your network lean and your server room clean.

ข้อมูลจำเพาะ

Specifications

Product code
CRS418-8P-8G-2S+RM
Suggested price
$449.00
Architecture
ARM 64bit
CPU
IPQ-8072
CPU core count
4
CPU nominal frequency
2208 MHz
CPU Threads count
4
Switch chip model
98DX226S
RouterOS license
5
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-20°C to 70°C

Powering

Number of AC inputs
2
AC input range
100-240
Number of PSU slots
2
Frequency (Hz)
50-60
Max power consumption
215 W
Max power consumption without attachments
28 W
Cooling type
4 fans

PoE-out

PoE-out ports
Ether9 - Ether16
PoE out
802.3af/at
Low voltage PoE-Out current limit
1.1 A
High voltage PoE-Out current limit
0.56 A
Max total out (A)
5.4 A
Total output current
5.4
Total output power
150

Ethernet

10/100/1000 Ethernet ports
17
Number of 1G Ethernet ports with PoE-out
8

Fiber

SFP+ ports
2

Peripherals

Serial console port
RJ45
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1

Other

CPU temperature monitor
Yes
Current Monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes
Mode button
Yes

Certification & Approvals

Certification
CE, EAC, ROHS
IP
20

เอกสาร

brochure

เปิดเอกสารจากผู้ผลิตเพื่อดูรายละเอียดสเปกและฟีเจอร์

PDF
