MikroTikView details
CRS504-4XQ-OUT
สวิตช์ 100G กลางแจ้ง กันน้ำ IP66 มี 4 พอร์ต 100G QSFP28 ประหยัดพลังงาน
- QSFP
- 100G
THB 64,728.00
MikroTik
CRS504-4XQ-IN
รหัสสินค้า: CRS504-4XQ-IN
สวิตช์ 100G ราคาประหยัด ขนาดกะทัดรัด มี 4 พอร์ต 100G QSFP28 รองรับแหล่งจ่ายไฟสำรองแบบ Hot-swap
- QSFP
- 100G
THB 57,528.00

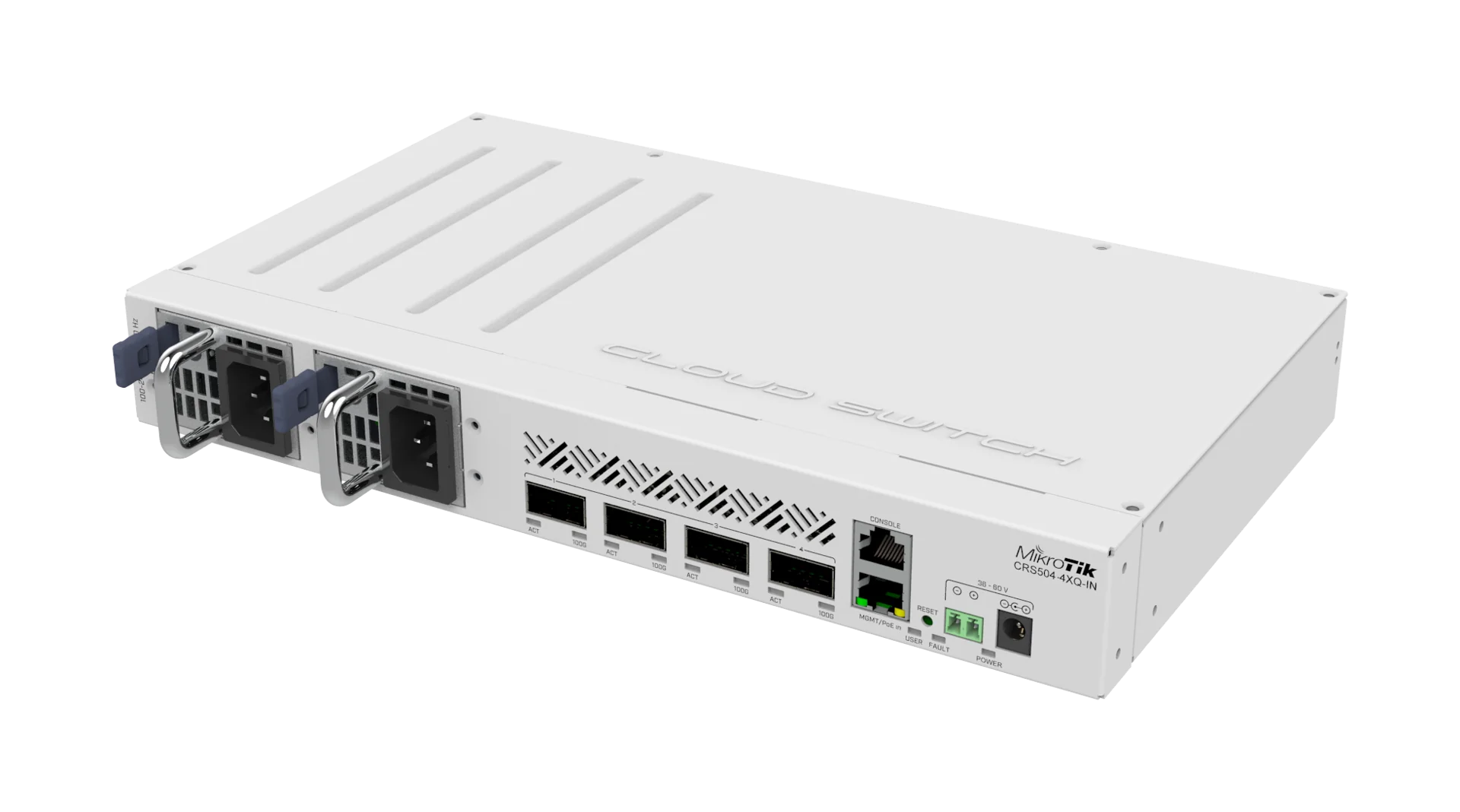

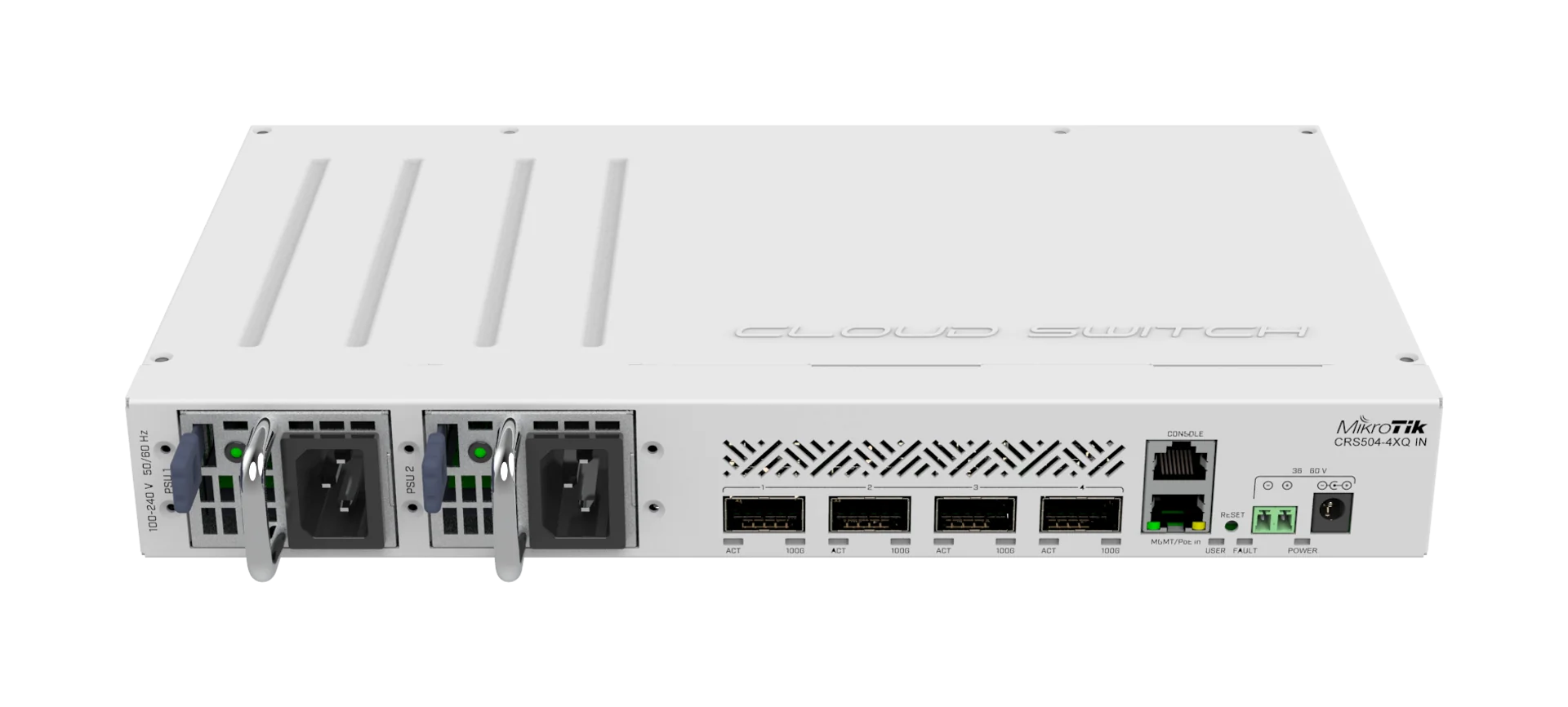

MikroTik CRS504-4XQ-IN—
THB 57,528.00
จุดเด่น
- 100G
- QSFP28
- Affordable
- Compact
- Hot-swap PSU
- Energy-efficient
ภาพรวมสินค้า
Your most affordable, compact, energy-efficient
doorway to the world of 100 Gigabit networking.
This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.
Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.
ข้อมูลจำเพาะ
Specifications
- Product code
- CRS504-4XQ-IN
- Suggested price
- $799.00
- Architecture
- MIPSBE
- CPU
- QCA9531
- CPU core count
- 1
- CPU nominal frequency
- 650 MHz
- Switch chip model
- 98DX4310
- Dimensions
- 320 x 185 x 44 mm
- RouterOS license
- 5
- Operating System
- RouterOS v7
- Size of RAM
- 64 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
Powering
- Number of AC inputs
- 2
- AC input range
- 100-240
- Number of DC inputs
- 3 (DC jack, PoE-IN, 2-pin terminal)
- DC jack input Voltage
- 36-57 V
- Number of PSU slots
- 2
- 2-pin terminal input Voltage
- 36-57 V
- Frequency (Hz)
- 47-63
- Max power consumption
- 41 W
- Max power consumption without attachments
- 25 W
- PoE in
- 802.3 bt
- Cooling type
- 2 fans
- PoE in input Voltage
- 43-57 V
Ethernet
- 10/100 Ethernet ports
- 1
Fiber
- Number of 100G QSFP28 ports
- 4
Peripherals
- Serial console port
- RJ45
Other
- PCB temperature monitor
- Yes
Certification & Approvals
- Certification
- CE, EAC, ROHS
- IP
- 20
