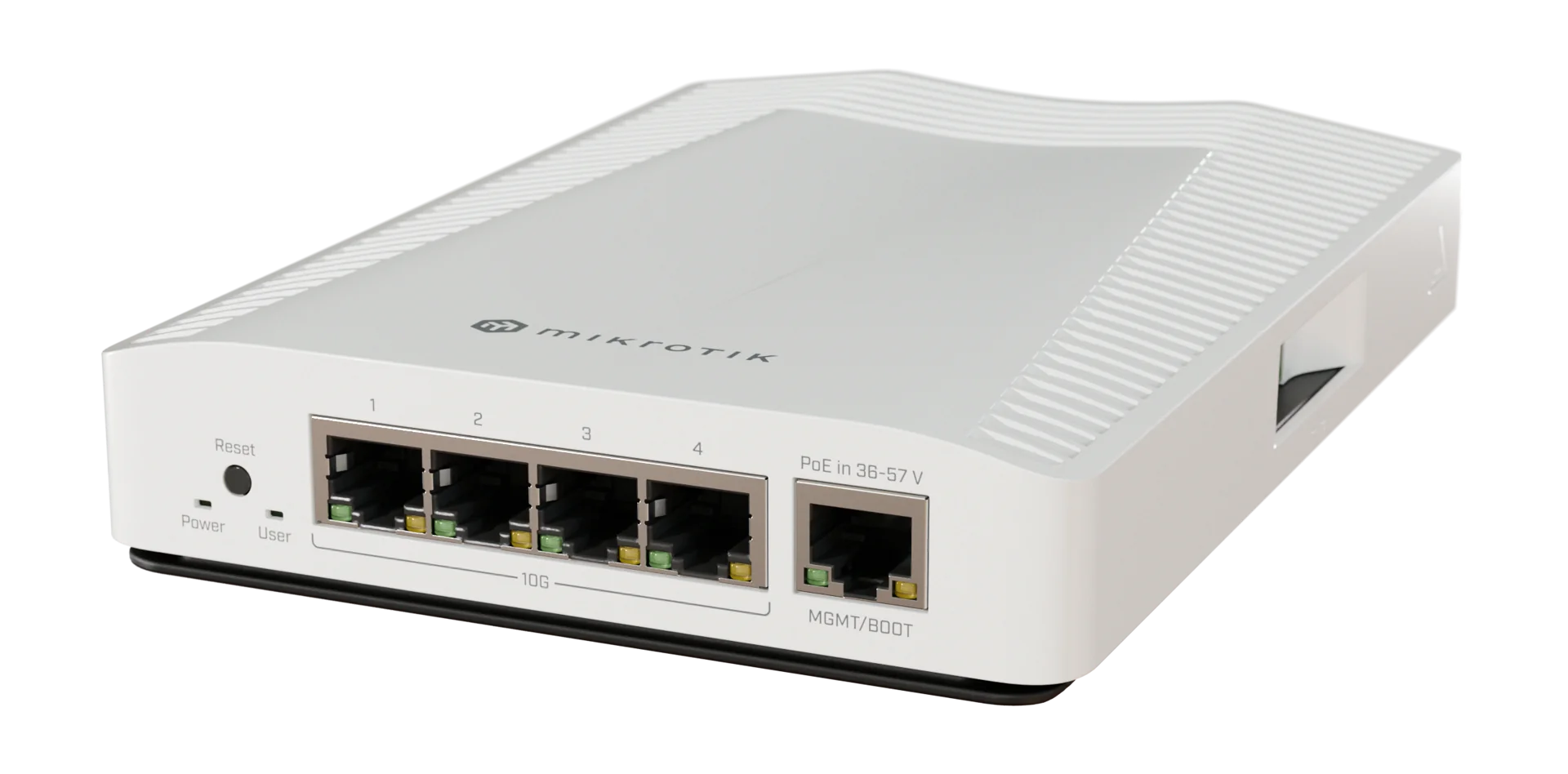

CRS304-4XG-IN

MikroTik

CRS304-4XG-IN

รหัสสินค้า: CRS304-4XG-IN

สวิตช์ 10G ขนาดกะทัดรัด 4 พอร์ต 10G Ethernet พร้อมใช้งานทันที ไม่ต้องใช้โมดูลเพิ่ม

  • 10G
THB 14,328.00
MikroTik CRS304-4XG-IN—
THB 14,328.00

จุดเด่น

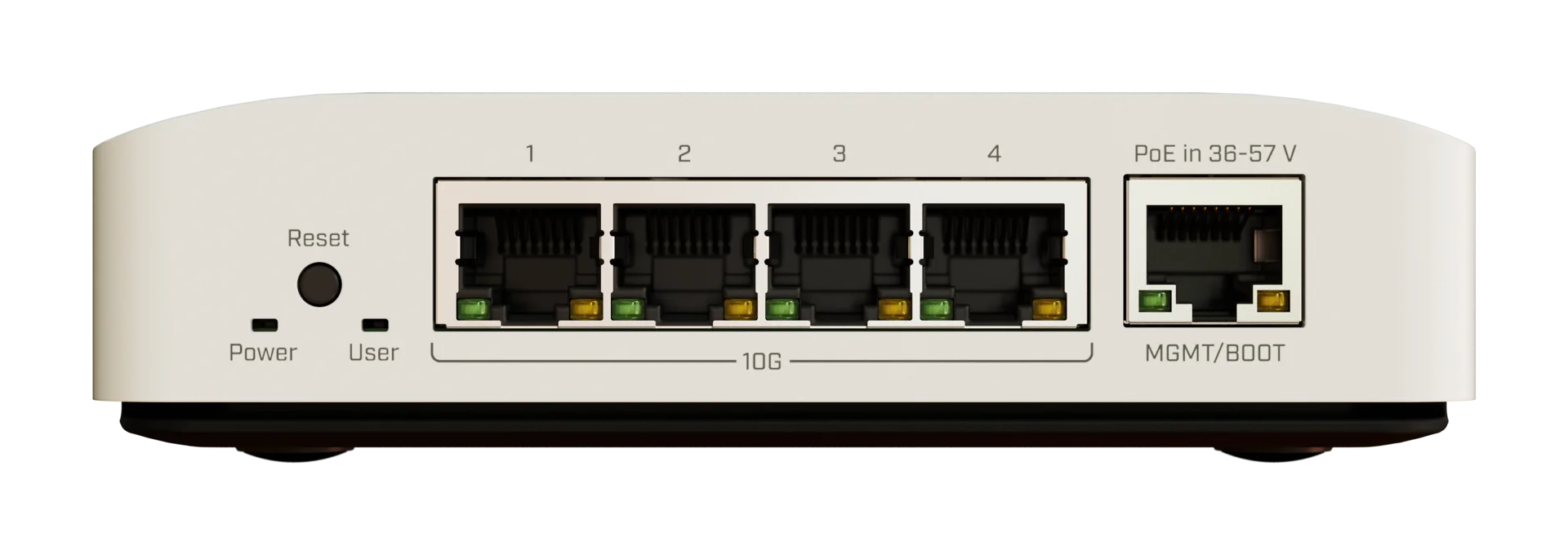

  • 4 x 10G Ethernet ports
  • 1Gbit management port
  • Durable lightweight enclosure

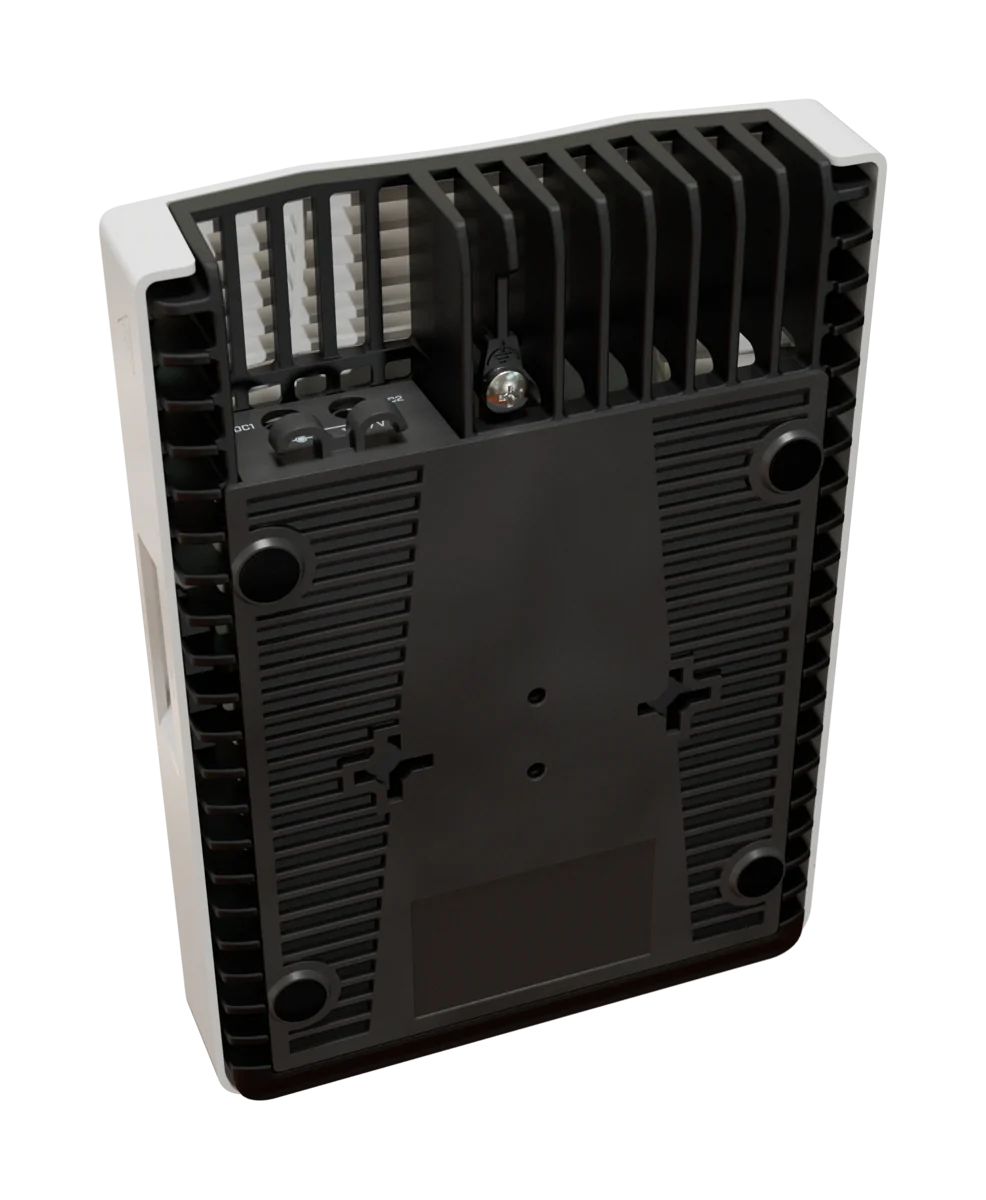

  • Massive fanless heat sink
  • RouterOS v7 and SwOS dual-boot
  • 4x ways of powering

ภาพรวมสินค้า

Power redundancy is a key feature of the CRS304. It offers four different power input options: two DC jacks, a 2-pin terminal, and PoE-in. The switch automatically selects the power source with the highest voltage, ensuring uninterrupted operation.

Powered by a dual-core ARM CPU and the mighty Marvell Prestera switch chip, the CRS304 delivers exceptional performance for its tiny size. Port-to-port forwarding, broadcast storm control, MAC filtering, VLANs, traffic mirroring, bandwidth limitations, and even some Layer 3 hardware offloading – not a problem for the CRS304-4XG-IN!

The CRS304’s small form factor and enhanced durability makes it an ideal choice for both stationary and mobile applications. Place it on your desk or keep it in your backpack for on-the-go networking – this is a must-have switch for any network administrator.

ข้อมูลจำเพาะ

Specifications

Product code
CRS304-4XG-IN
Suggested price
$199.00
Architecture
ARM 64bit
CPU
98DX2528
CPU core count
2
CPU nominal frequency
1200 MHz
CPU Threads count
2
Switch chip model
98DX2528
RouterOS license
5
Operating System
RouterOS v7
Size of RAM
512 MB
Storage size
32 MB
Storage type
FLASH
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C

Powering

Number of DC inputs
4 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage
12-57 V / 12-57 V
2-pin terminal input Voltage
12-57 V
Max power consumption
21 W
Max power consumption without attachments
15 W
PoE in
802.3af/at
Cooling type
Passive
PoE in input Voltage
36-57 V

Ethernet

10/100/1000 Ethernet ports
1
Number of 1G/2.5G/5G/10G Ethernet ports
4

Certification & Approvals

Certification
CE, EAC, ROHS
IP
20
