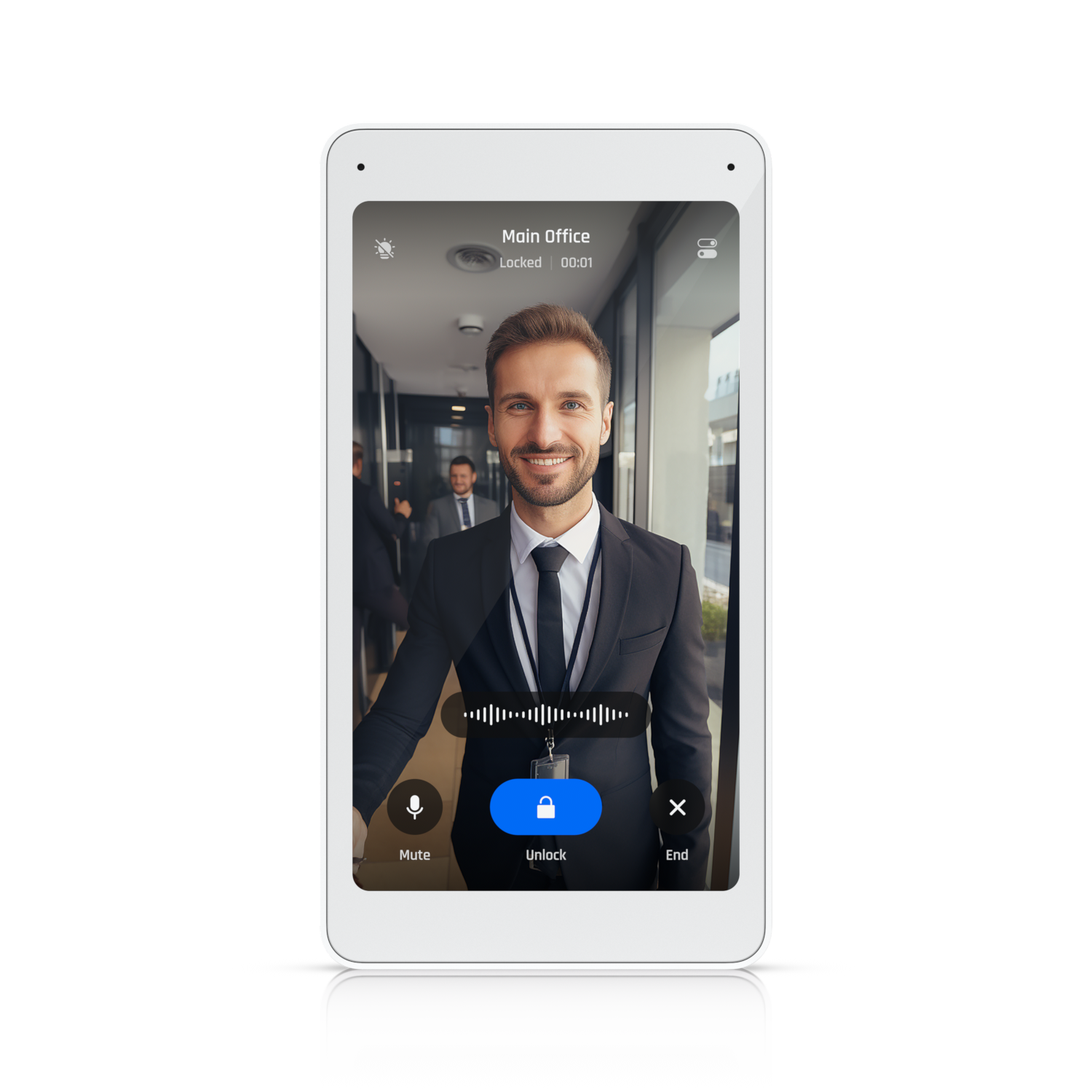

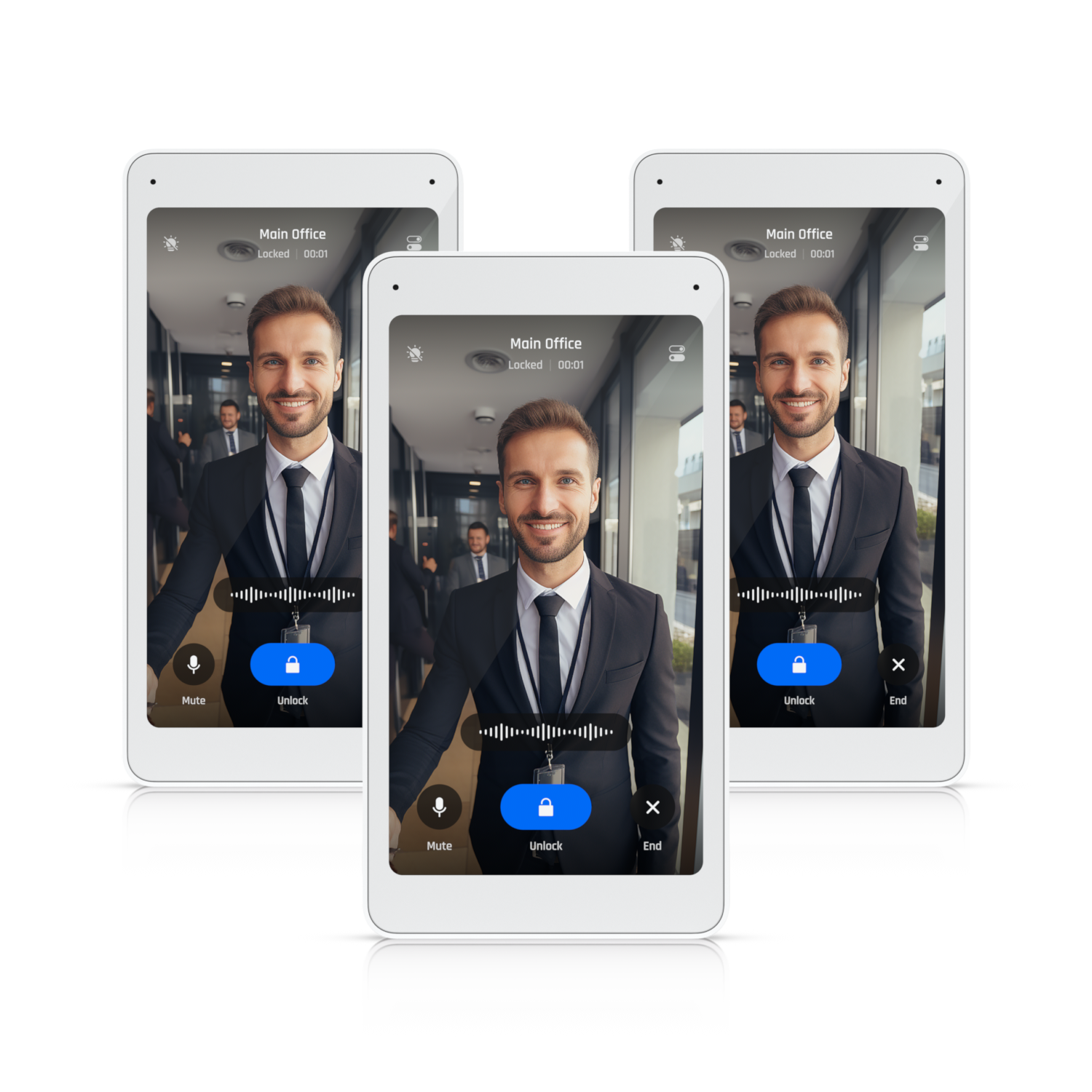

Ubiquiti Intercom Viewer
Intercom Viewer
รหัสสินค้า: UA-Intercom-Viewer
จอแสดงผลสำหรับ Intercom และ Reader Pro ใช้ตรวจสอบผู้มาเยือนและควบคุมการเข้าออกระยะไกล
THB 7,247.31
Ubiquiti Intercom Viewer—
THB 7,247.31
จุดเด่น
- Receives doorbell calls from one or more locations
- Two-way audio
- Instant live view
- 5" touch display
- Connect and power using a PoE switch
ภาพรวมสินค้า
Display that works with Intercom and Reader Pro for visitor screening and remote access control.
ข้อมูลจำเพาะ
Grid overview
- Display
- Touch display
- Livestream
- Live View
- Sound
- Two-Way Audio
Overview
- Dimensions
- 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
- UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Mechanical
- Weight
- 168 g (5.9 oz)
- Enclosure Material
- Glass, polycarbonate
- Mount Material
- Aluminum alloy
- Mounting
- Wall (Included) Gang box mount (Optional)
Hardware
- Indoor and Outdoor Use
- Indoor only
- Networking Interface
- (1) 10/100 Mbps RJ45 port
- Connectivity
- Ethernet
- Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- Max. Power Consumption
- 5W
- Supported Voltage Range
- 44–57V DC
- Size
- 127 mm (5") diagonal
- Luminance
- 300 nits (Typical)
- Screen Orientation
- Portrait
- Resolution
- 1280 x 720 px
- Buttons
- (1) Factory reset
- PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
- UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
- CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Document number, and issue date and/or revision level
- UA-Intercom-Viewer, V01
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity
- 5 to 95% noncondensing
Software
- Management Application
- Access
- Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
