Ubiquiti G3 Starter Kit

G3 Starter Kit

รหัสสินค้า: UA-G3-SK

ชุดเริ่มต้นสำหรับควบคุมประตู 1 บาน พร้อมเครื่องอ่าน 1 ตัว รองรับ Touch Pass

THB 13,279.57
Ubiquiti G3 Starter Kit—
THB 13,279.57

จุดเด่น

  • Access Control
  • Touch Pass
  • Entry Control

ภาพรวมสินค้า

A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Touch Pass for modern, secure access control.

ข้อมูลจำเพาะ

Overview

In the Box
(1) Door Hub Mini (1) G3 Reader (2) Pocket Keyfobs
Touch Pass
10 free 1-year Touch Passes included <a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a>

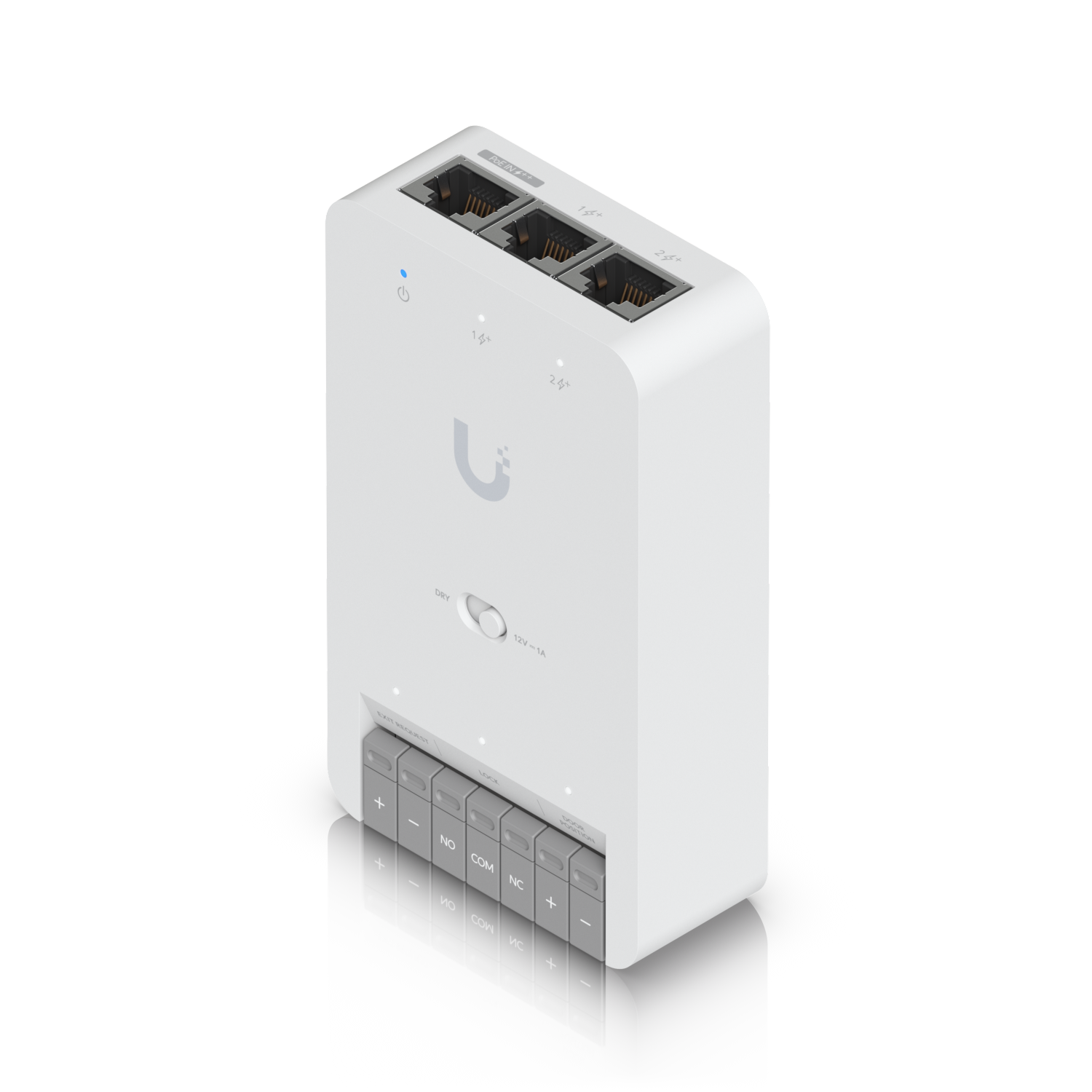

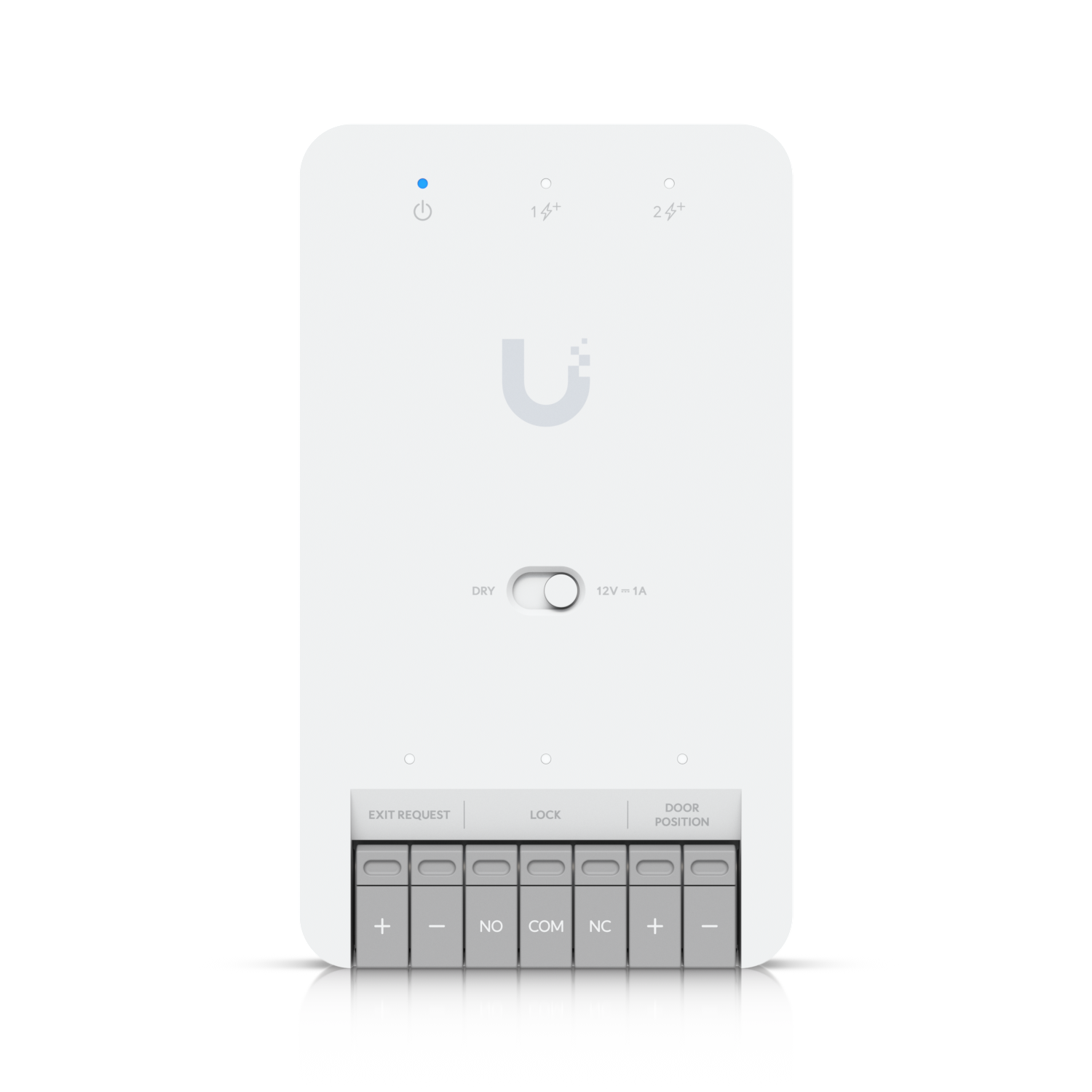

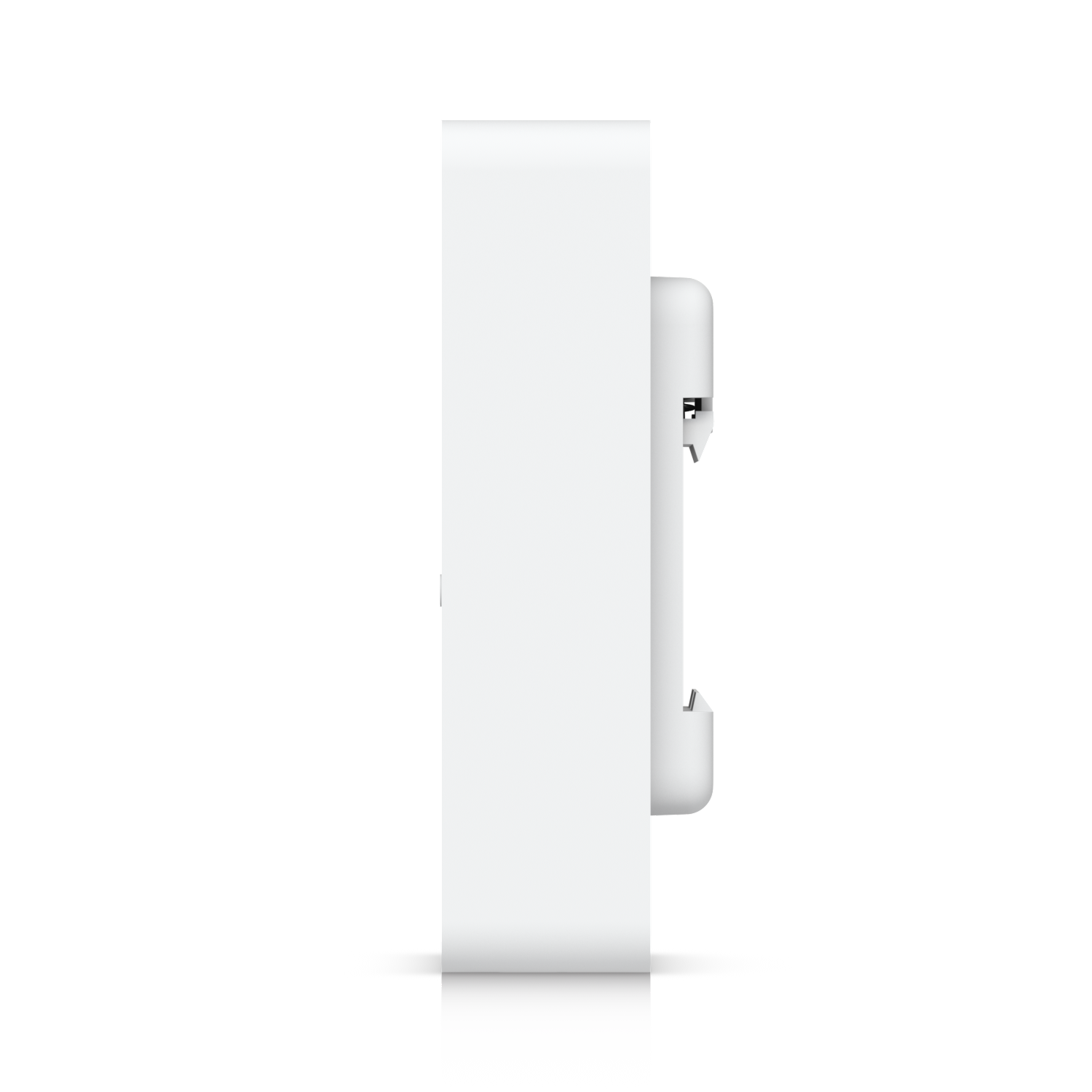

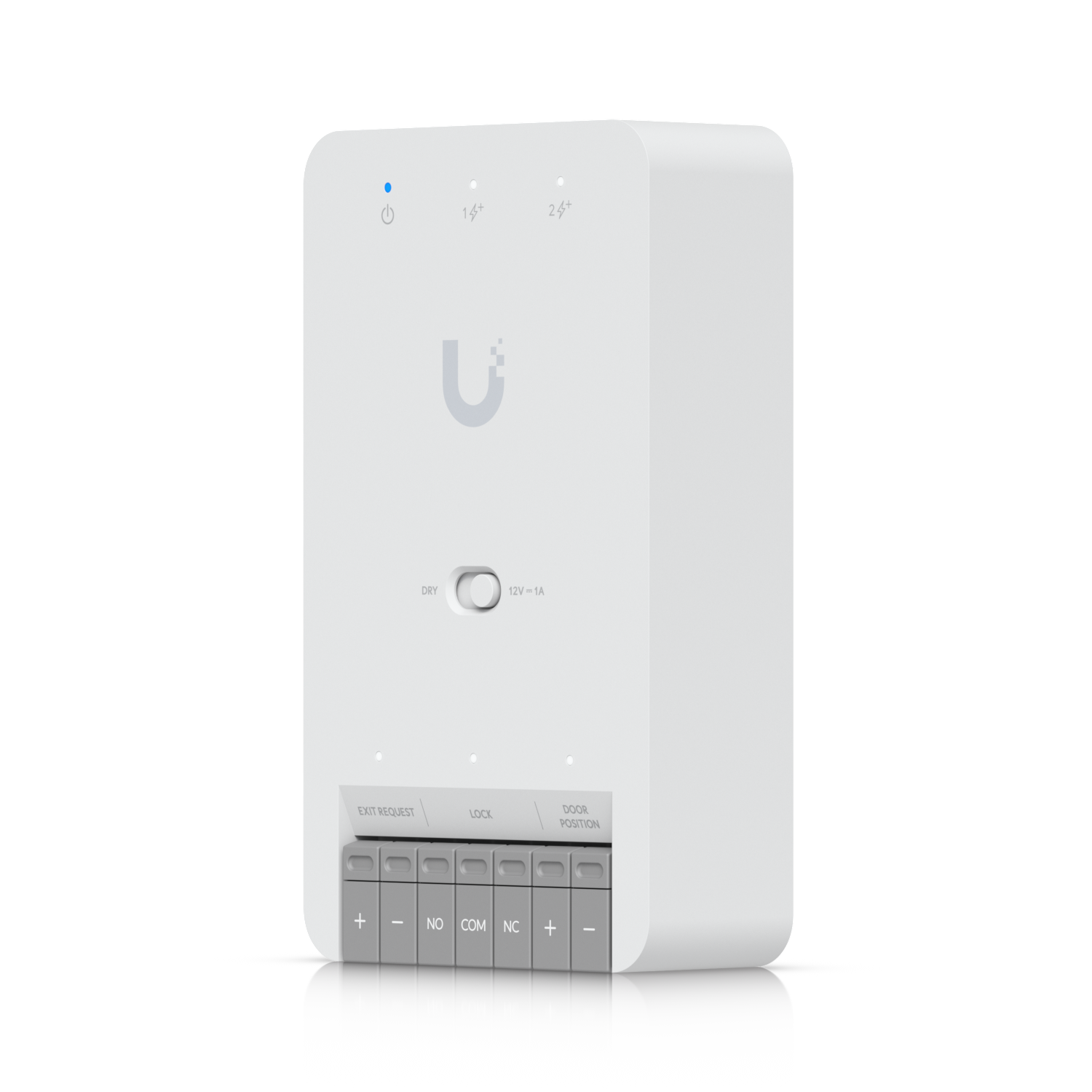

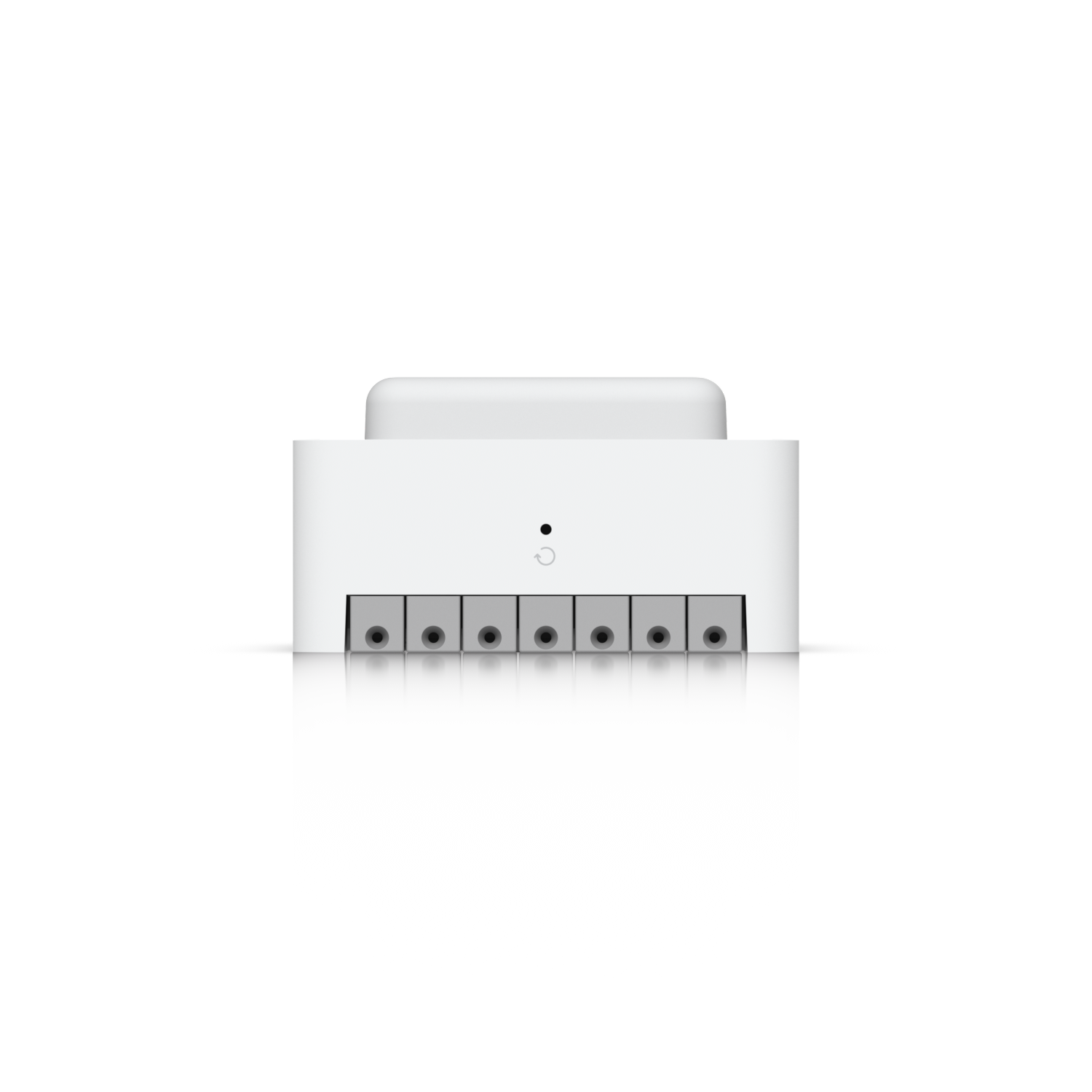

Door Hub Mini

Dimensions
113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Supported Doors
1
Maximum User Count
3,000
Input Terminals
(1) Door Exit Request (1) Door Position
Power Method
PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight
190 g (6.7 oz)
Enclosure Material
Polycarbonate, metal

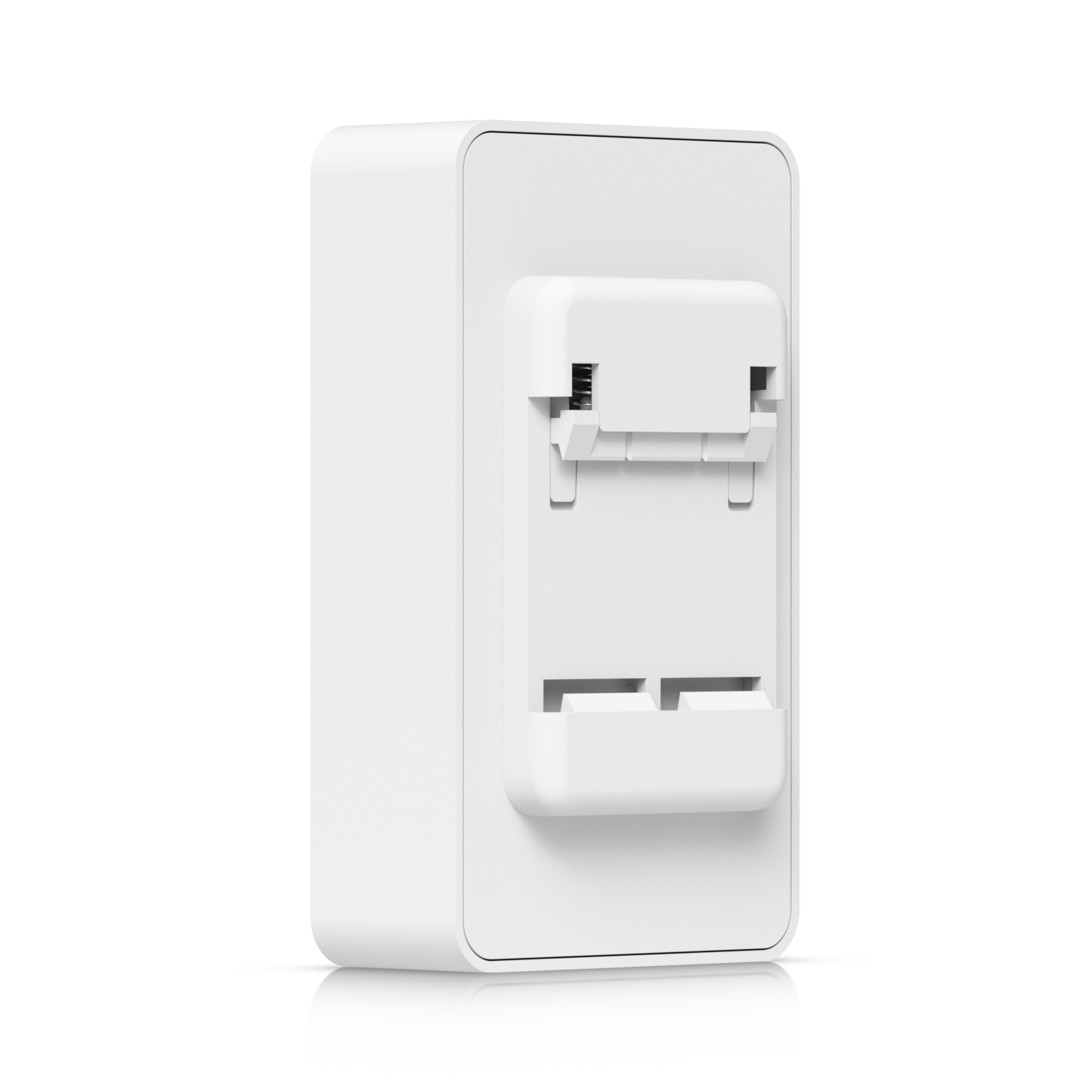

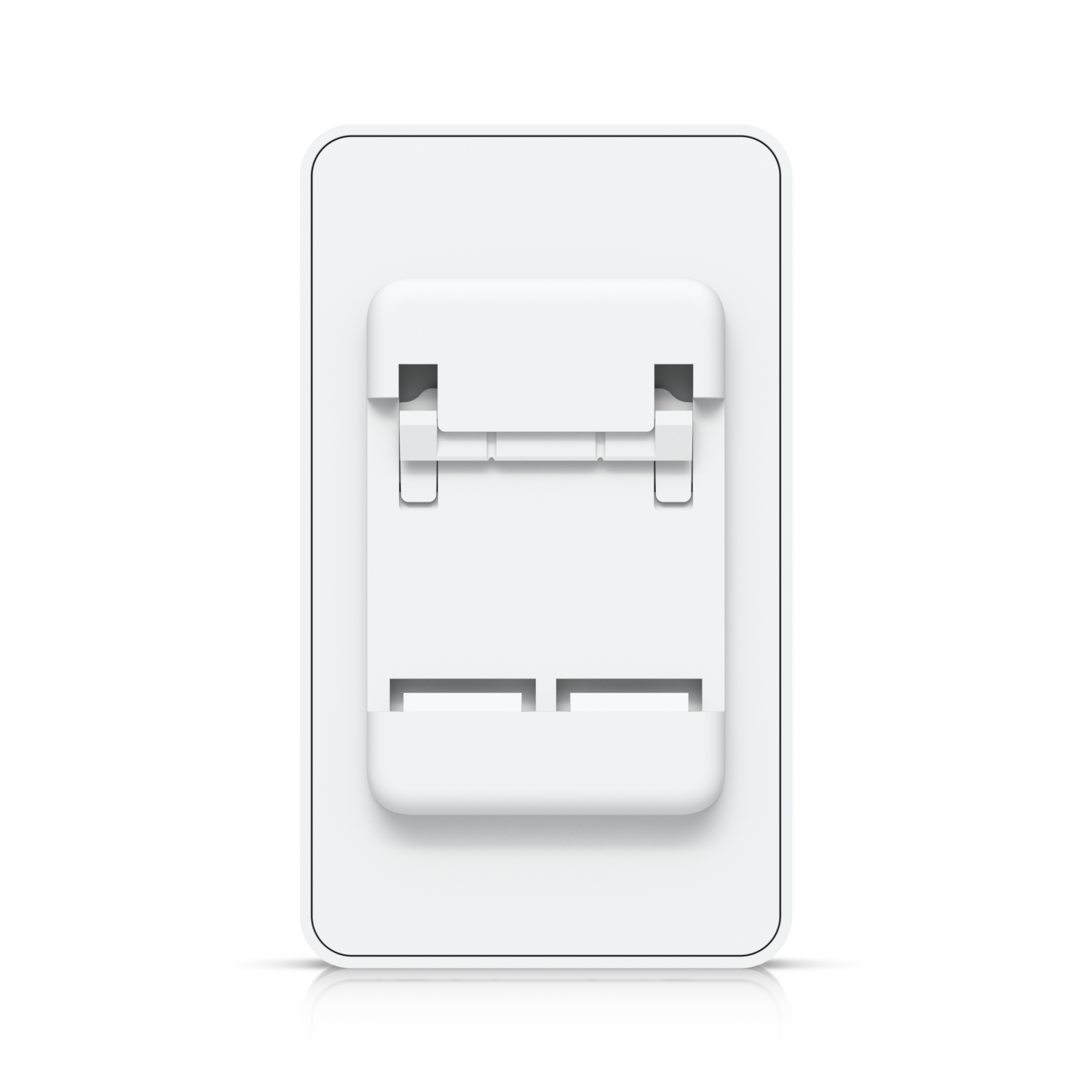

Mounting
DIN-rail (Included)

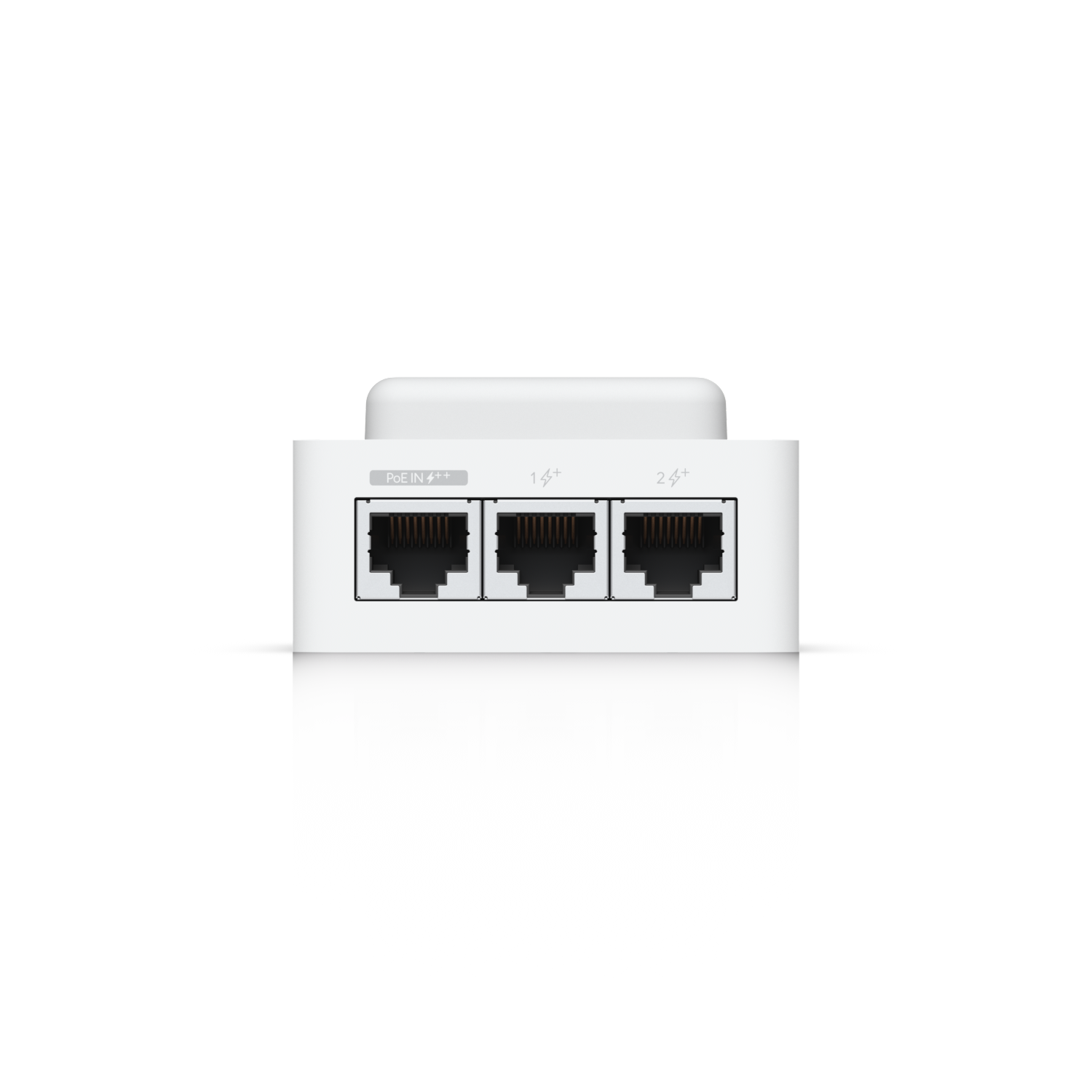

Networking Interface
(3) GbE RJ45 ports
PoE Interface
(1) PoE++ input, 50V DC, 1A (2) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption
19W (Without PoE output) 50W (With PoE output)
Digital Input
Request to exit, door position sensor
Dry Output Relay
30V DC, 1A
Wet Output Relay
12V DC, 1A
LEDs
B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
Button
(1) Factory reset (1) Dry/Wet switch
UA-Lock-Electric (400mA)
24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)
24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Management Application
UniFi Access
Software Information
The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
Document number, and issue date and/or revision level
UA-Hub-Door-Mini, V01

G3 Reader Pro

Resolution
12 MP (3072 × 4096)
Field of View
H: 98.6°, V: 125.7°, D: 157.8°

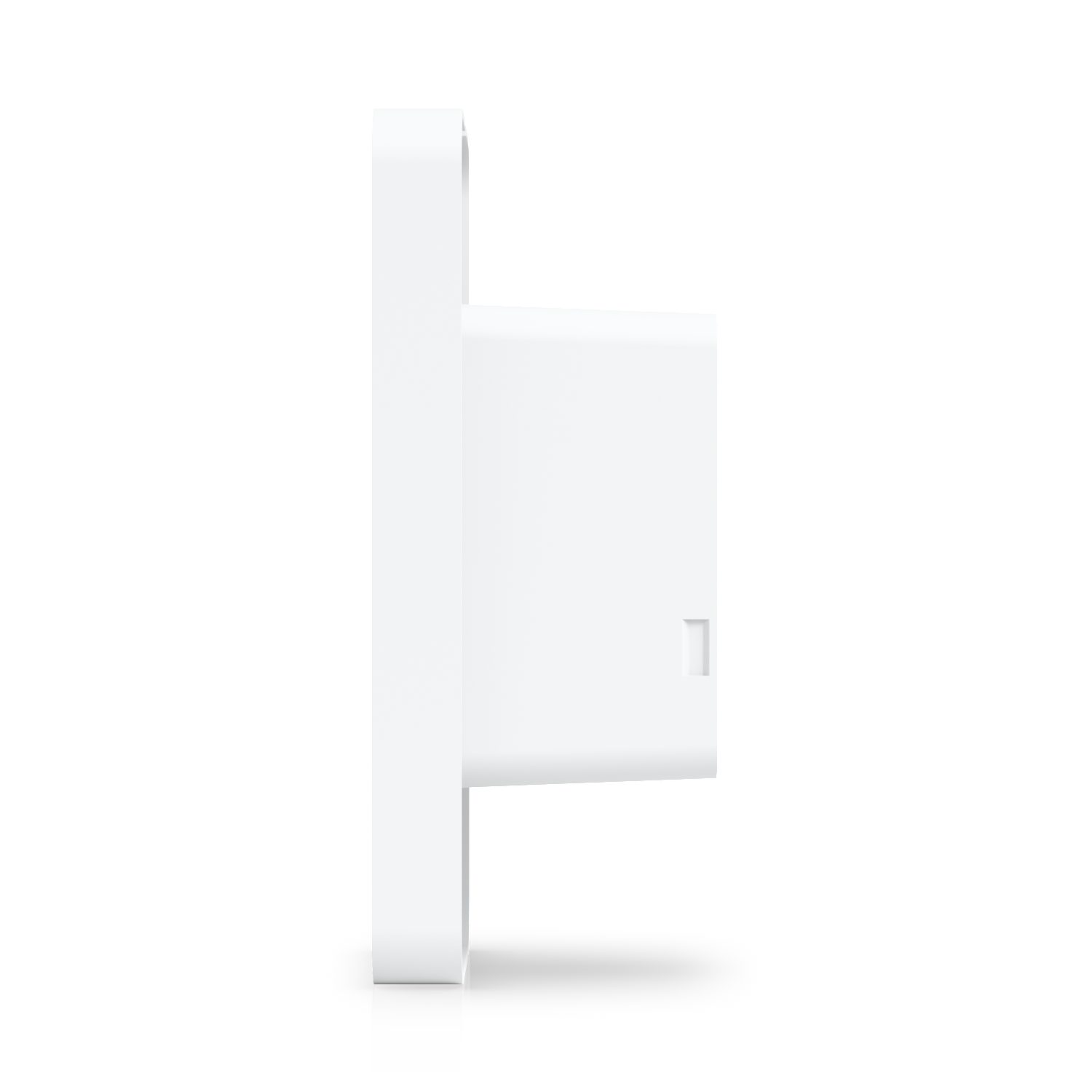

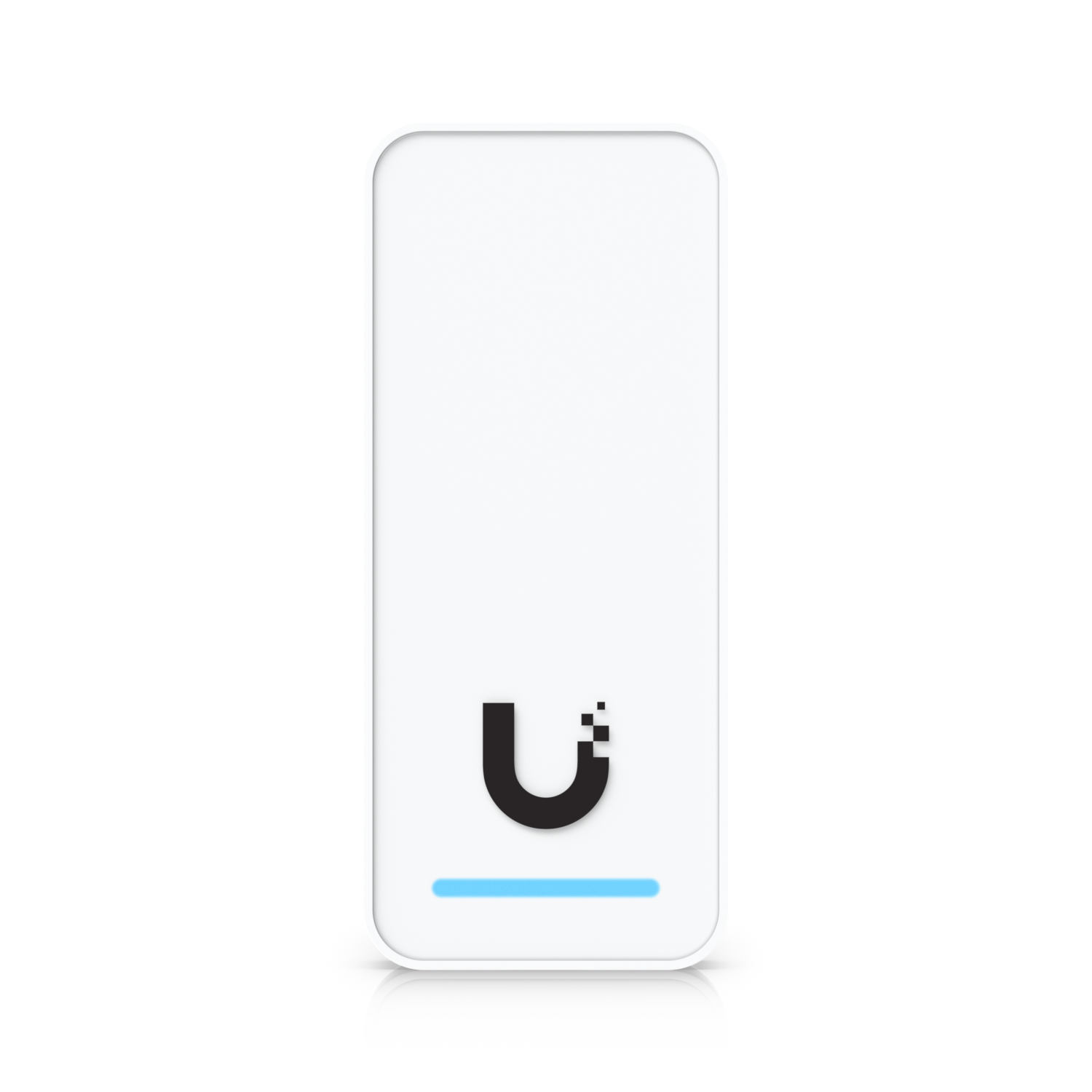

G3 Reader

Dimensions
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weatherproofing
IP55
Weight
82 g (2.9 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
In-wall, gang box (Included) Junction box (Optional)
Networking Interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
5W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Sensors
Proximity sensor
Speaker
(1) Yes, 0.7W
LEDs
R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
Button
(1) Factory reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Ambient Operating Temperature
-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3, V01
Management Application
UniFi Access
Software Information
The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Pocket Keyfob

Dimensions
84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight
16 g (0.56 oz)
Enclosure Material
Polycarbonate, stainless steel, silicone rubber
Weatherproofing
IP54
Ambient Operating Humidity
10 to 90% noncondensing
Ambient Operating Temperature
-10 to 45° C (14 to 113° F)
NFC Frequency
13.56 MHz
NFC Technology
ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
Certification
CE
