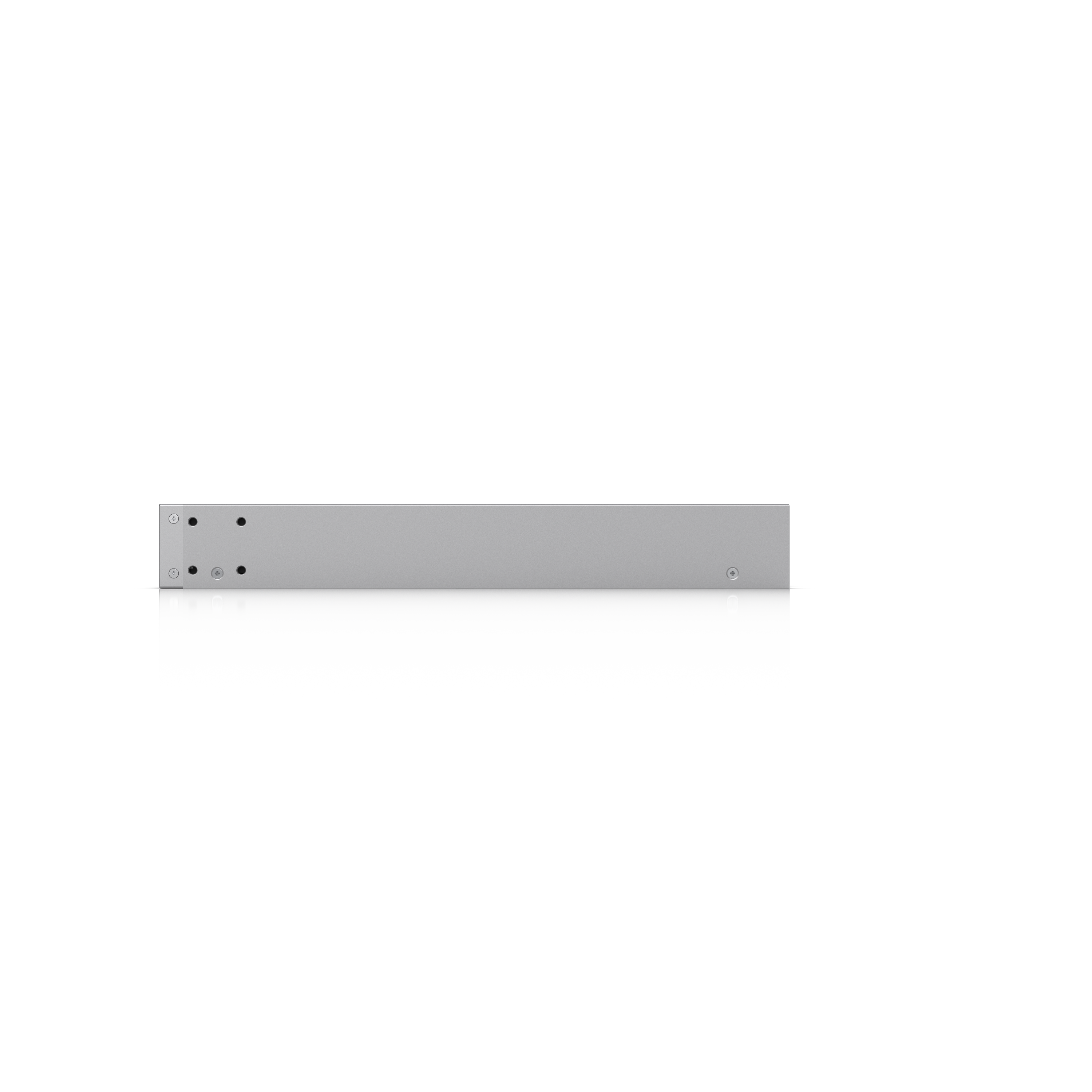

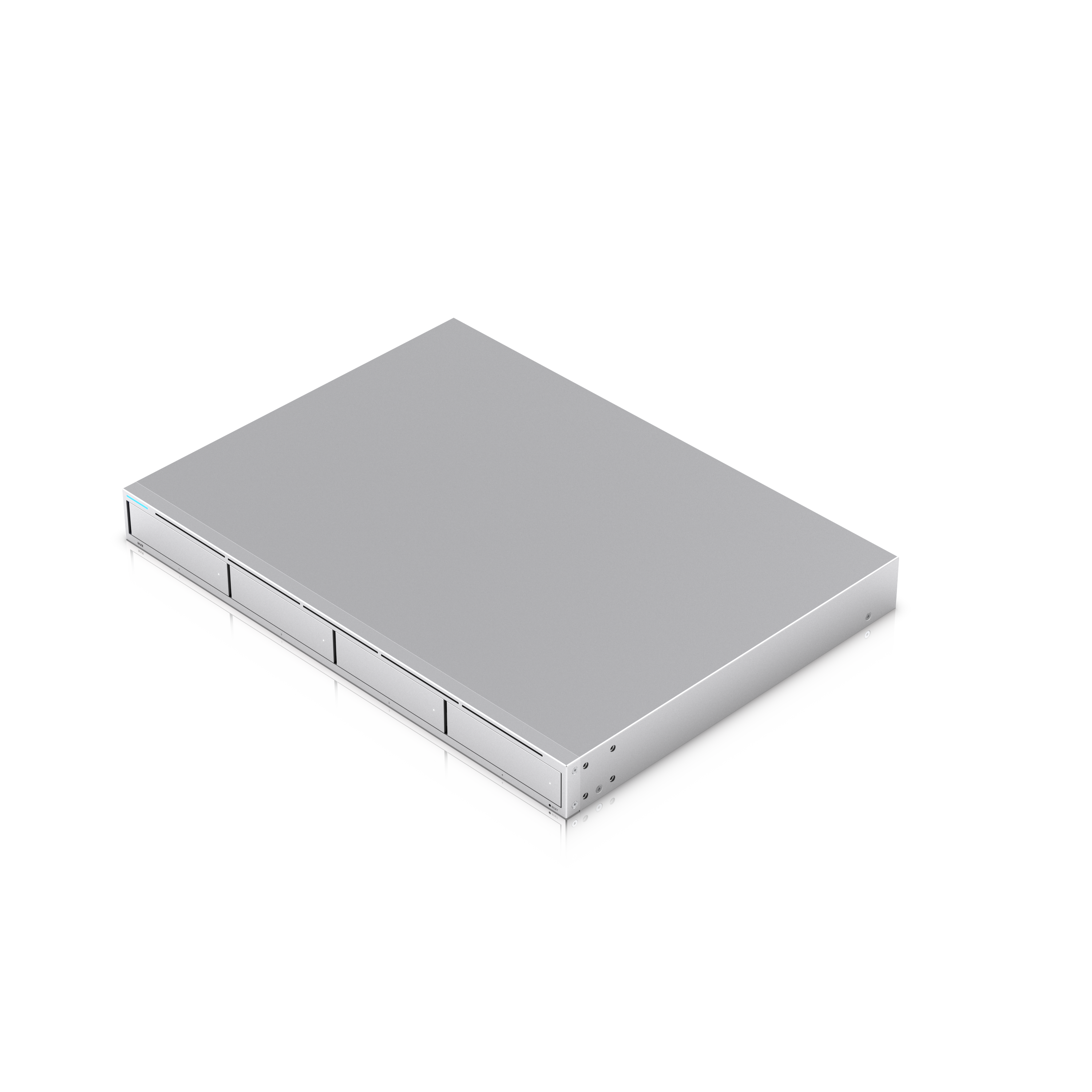

Ubiquiti Network Video Recorder

MikroTik

Ubiquiti Network Video Recorder

Network Video Recorder

รหัสสินค้า: UNVR

เครื่องบันทึกวิดีโอ (NVR) มี 4 ช่องใส่ HDD 2.5/3.5" รองรับกล้อง 4K สูงสุด 18 ตัว หรือ Full HD 60 ตัว บันทึกได้นานถึง 30 วัน

THB 14,709.68
Ubiquiti Network Video Recorder—
THB 14,709.68

จุดเด่น

  • (4) 3.5" HDD / SSD support
  • (1) 10G SFP+ uplink and (1) GbE RJ45 port
  • Data protection with RAID storage technology
  • DC power backup-ready

ภาพรวมสินค้า

A video recorder with (4) 2.5/3.5" HDD bays that can support up to 30 days of storage for (18) 4K cameras or (60) Full HD cameras.

ข้อมูลจำเพาะ

Grid overview

Managed Cameras (grid)
60 HD or 18 4K
Ports
1 GbE + 1 SFP+
Power
RPS Ready
Security
RAID Protection

Overview

Dimensions
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Managed Cameras
(60) HD (30) 2K (18) 4K
Managed Access Hubs
150+
Storage Capacity
(4) 2.5/3.5" drive bays
Networking Interface
(1) 10G SFP+ port (1) GbE RJ45 port
Power Redundancy
UniFi Power Backup ready
Form Factor
Rack mount (1U)
Management Application
UniFi Protect UniFi Access UniFi Connect
Network
Powerful gateways, WiFi access points, and switches enabling next-gen security and scalable SD-WAN.
Protect
Al-powered camera system with flexible alarm integrations, and smart detections for streamlined incident management.
Access
Secure Ethernet-based access control for doors, gates, and elevators, featuring flexible unlock mechanisms.
Talk
Plug-and-play VolP system with advanced call routing and automations for seamless communication.
Connect
Manage digital signage, EV chargers, and Lutron lighting systems with ease.

Hardware

Hard Drive Capacity
(4) 2.5/3.5” HDD / SSD support
Max. Power Budget for Drives
75W
Max. Power Consumption
100W
Power Method
(1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 10.43A
Power Supply
AC/DC, internal, 120W
Processor
Quad ARM® Cortex®-A57 cores at 1.7 GHz
Memory
4 GB
Management
Ethernet
Weight
Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC, SRRC, Anatel: 01924-21-08356
