Ubiquiti

Ubiquiti UK-Ultra

Name: Ubiquiti UK-Ultra
Brand: Ubiquiti
SKU: UK-Ultra
Price: 4250 THB
Availability: InStock

Swiss Army Knife

รหัสสินค้า: UK-Ultra

จุดเชื่อมต่อไร้สาย UniFi WiFi 5 แบบ 4 สตรีม ใช้ใน/นอกอาคาร กันน้ำ IPX6 รองรับเสาอากาศภายนอก RP-SMA

in
1G
UniFi
Wi-Fi 5

THB 4,250.00

Ubiquiti UK-Ultra—

THB 4,250.00

Ubiquiti UK-Ultra—

THB 4,250.00

จุดเด่น

WiFi 5
4 spatial streams
115 m² (1,250 ft²) coverage with internal antenna
200+ connected devices
Powered using PoE
GbE uplink

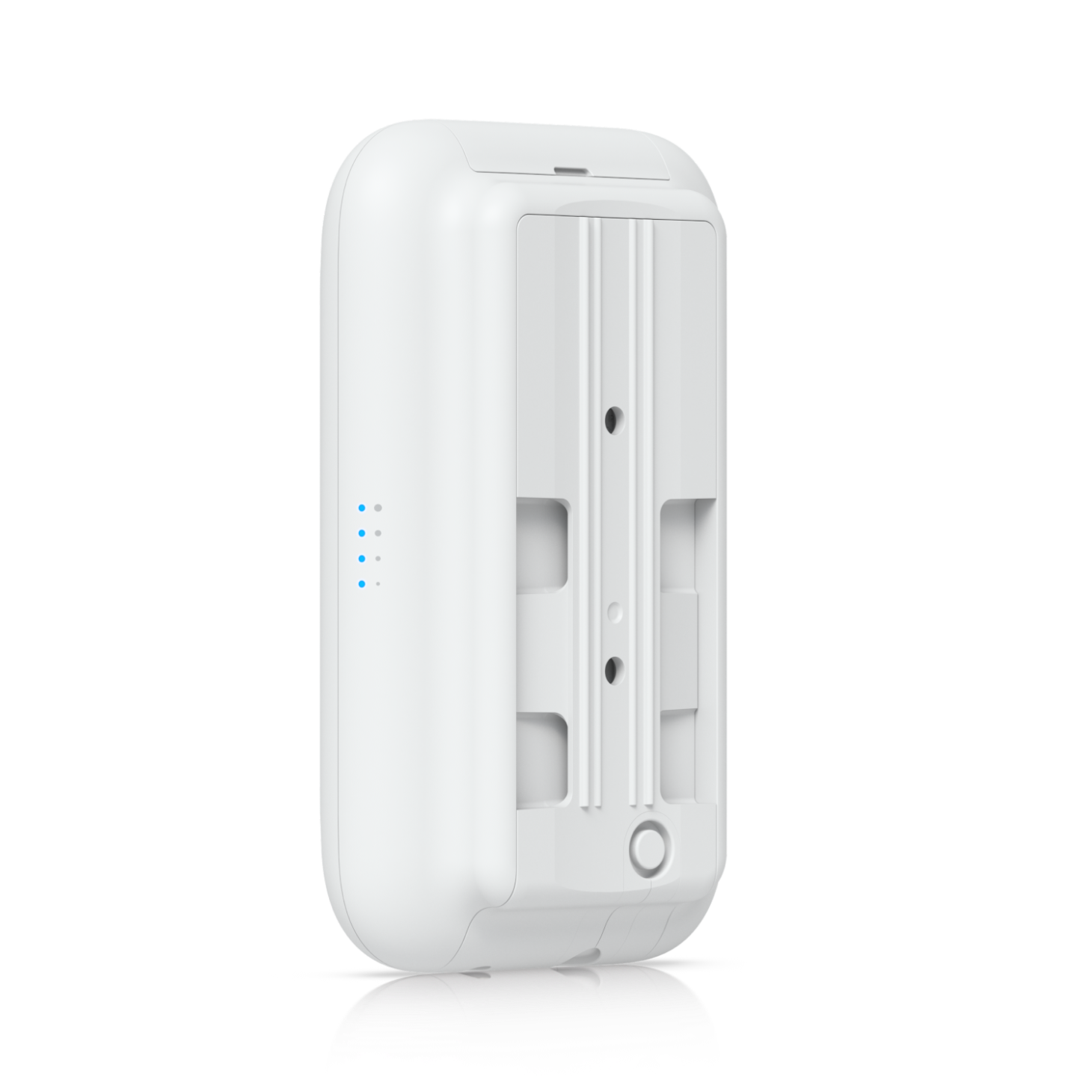

Versatile wall, ceiling, and pole mounting

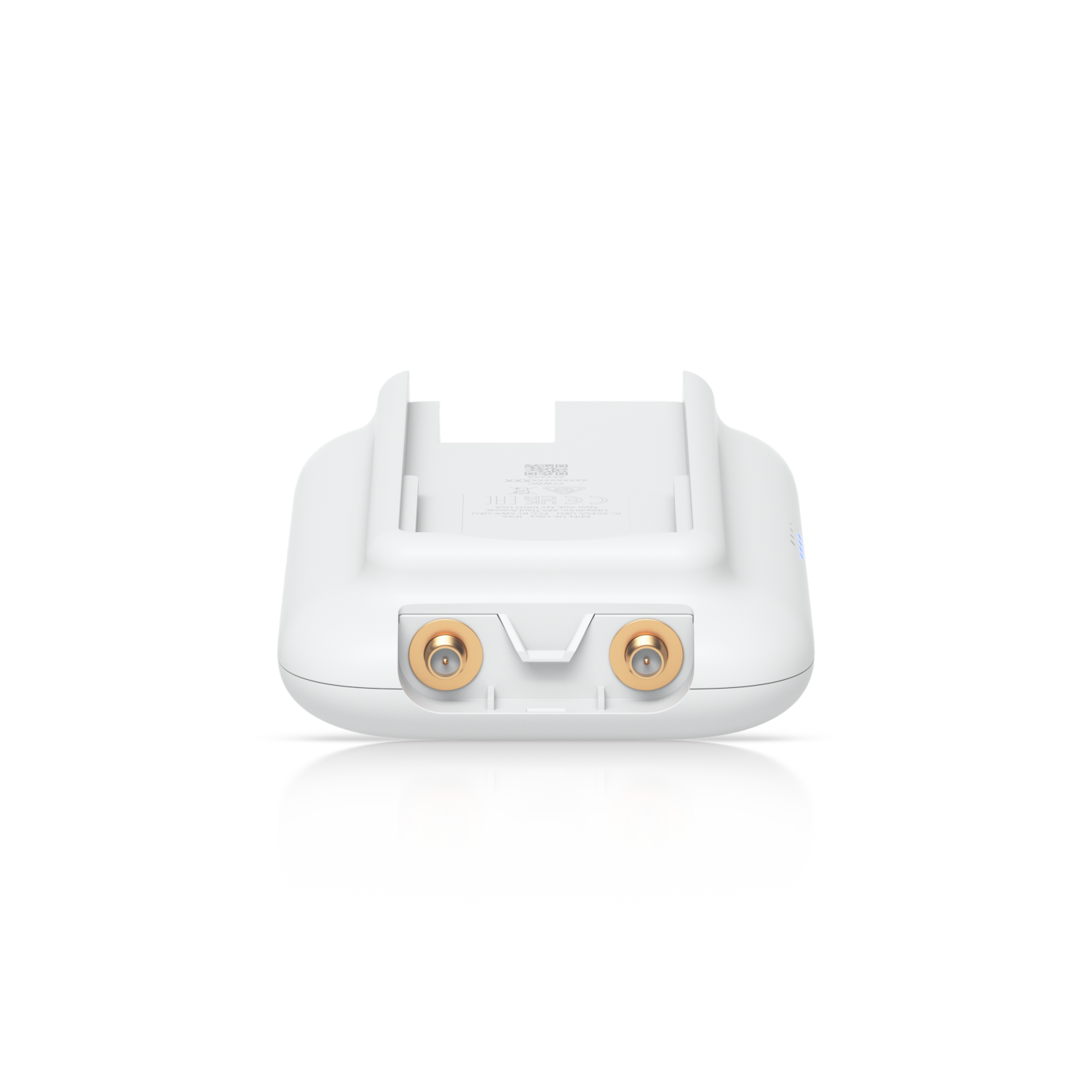

(2) RP-SMA connectors for optional external antennas
Weatherproof (outdoor exposed)

ภาพรวมสินค้า

Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.

UniFi UK-Ultra (Swiss Army Knife) is a WiFi 5 dual-radio access point with 4 spatial streams, 115 m² coverage, 200+ clients, IPX6 weatherproofing, PoE power, a GbE uplink, included wall/ceiling/pole mounts, and two RP-SMA connectors for optional external antennas.

Suitable for home and business use: wall, ceiling, or pole mounting, weatherproof outdoor install, and optional long-range external antennas.

ข้อมูลจำเพาะ

Overview

Dimensions: 137 x 84 x 34 mm (5.4 x 3.3 x 1.3")
WiFi Standard: WiFi 5
Spatial Streams: 4
Coverage Area: 115 m² (1,250 ft²)
Max. Client Count: 200+
Uplink: GbE
Mounting: Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional)
Weatherproofing: IPX6
Power Method: PoE

Performance

5 GHz: 2 x 2 (DL MU-MIMO)
2.4 GHz: 2 x 2 (DL MU-MIMO)
5 GHz: 866.7 Mbps (BW80)
2.4 GHz: 300 Mbps (BW40)
5 GHz: 6.1 dBi
2.4 GHz: 4.7 dBi
5 GHz: 20 dBm
2.4 GHz: 20 dBm
Max. BSSIDs: 8 per Radio
802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): Yes
Advanced Radio Management: Yes
Real-Time Spectral Analysis: For enhanced channel selection
Passpoint (Hotspot 2.0): Yes
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max. Power Consumption: 8W
Supported Voltage Range: 44–57V DC
Networking Interface: (1) GbE RJ45 port
Weight: 173 g (6.1 oz)
Wind Loading: 33.2 N at 200 km/h (7.5 lbf at 125 mph)
Pole Mount Diameter: 1~2" (25–50 mm)
Antennas: (1) Internal antenna (2) RP-SMA connectors
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate
Mount Material: Polycarbonate, SGCC steel, plastic
System: (1) Power: White/Blue (4) Mesh Signal: Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80
Operating Frequency: US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: Yes
Certifications: CE, FCC, IC, Anatel: 06237-24-08356
